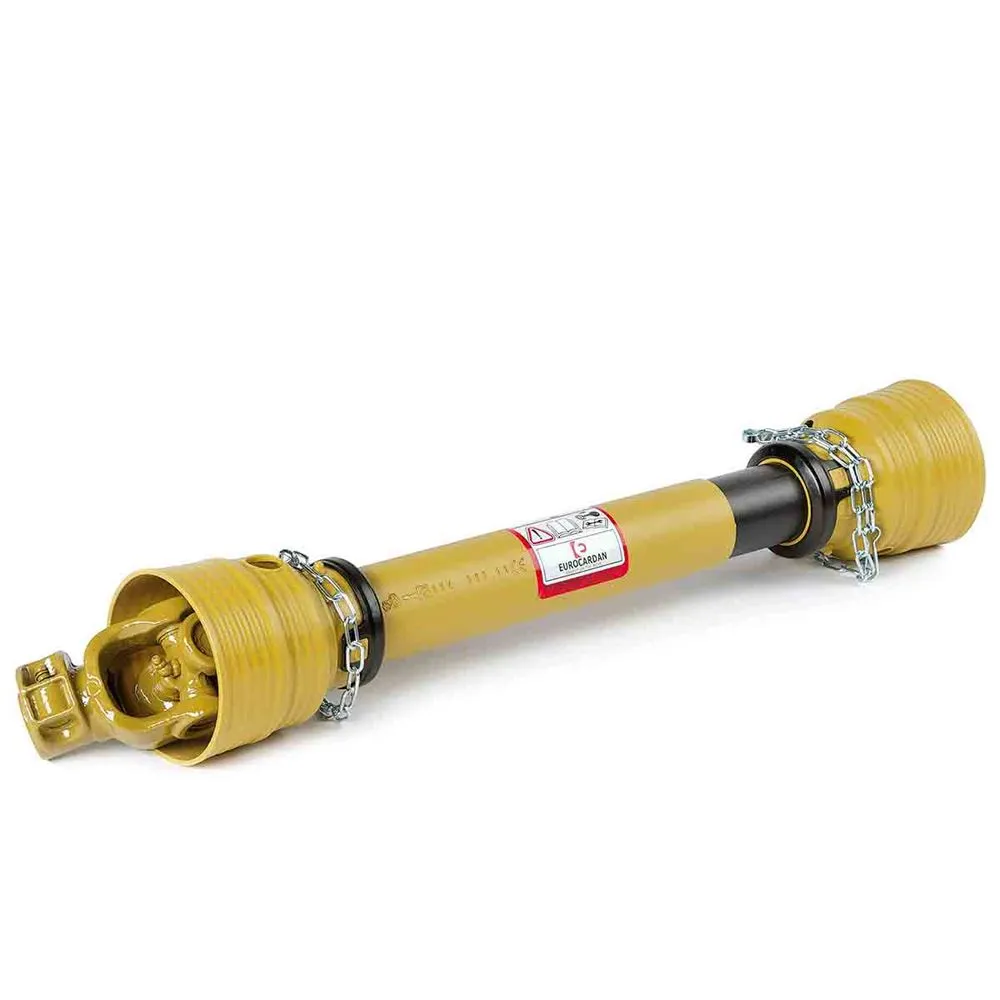

AX4 (51.6"OL) 1-3/8"-6 SPL X 1-3/8" Smooth

Item #36064A
This Eurocardan PTO shaft is a series 4 and can safely extend 76 inches and measures 51.6 inches closed. This PTO uses a 1/2 inch shear pin grade 2 bolt.
Product Overview

Specifications

  • Eurocardan
  • PTO Shaft
  • Part Number: AX45000-0187
  • Extended length: 76 inches
  • Collapsed length: 51.6 inches
  • 35 HP at 540 RPM
  • 54 HP at 1000 RPM
  • Use 1/2" shear pin, grade 2 bolt - ASC #76004
  • Series 4

Smooth Bore & Shear Pin Implement End Yoke

Assembly DescriptionSeries SizeLength OverallDescription I.E. = Implement End T.E. = Tractor End
AX4451.6"1 3/8" smooth yoke w/ 1/2" shear pin hole / 1 3/8-6 T.E.
