AX5 (44"OL) 1-3/8"- 6 SPL X 1-3/8" -Smooth with 1/2" Shear Pin Hole
Item #31361A

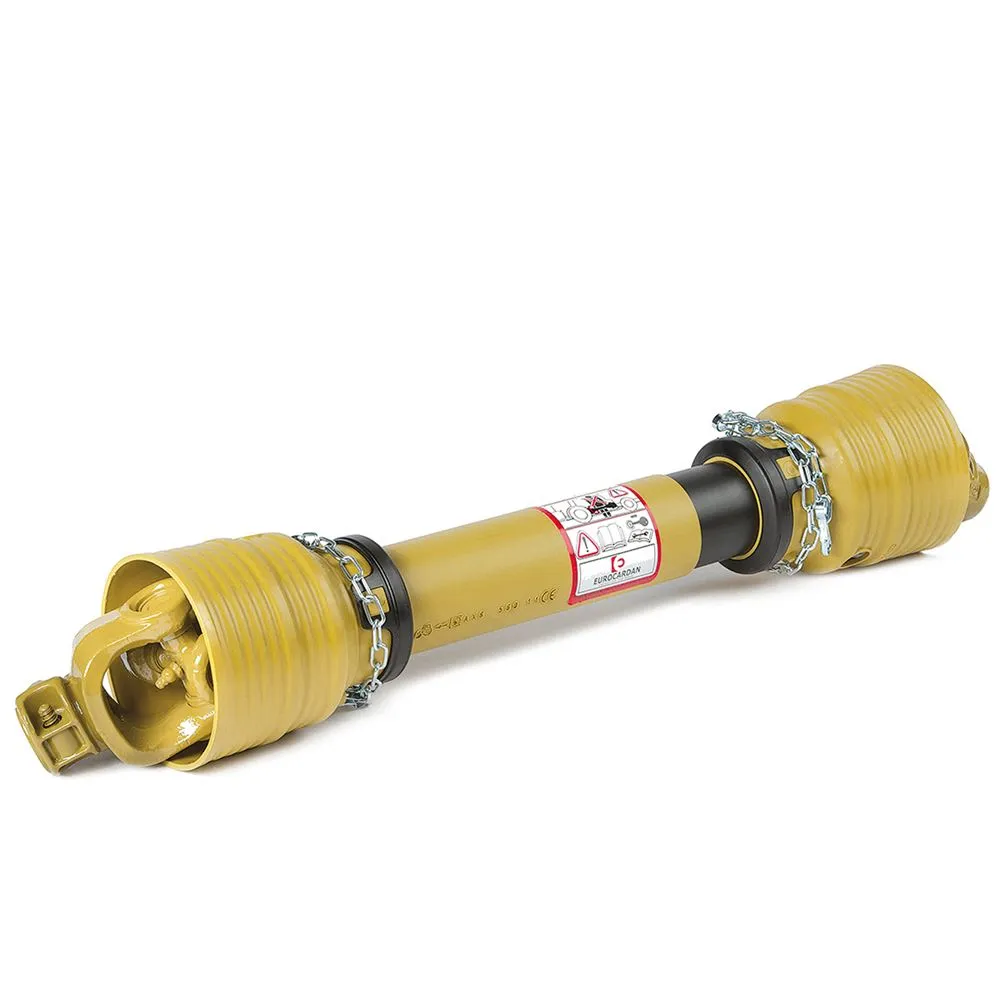

This PTO shaft from Eurocardan has a 1-3/8" 6-spline yoke on the tractor end and a 1-3/8" smooth round yoke on the implement end with a 1/2" shear pin hole drilled through it.
Product Overview
This Eurocardan PTO shaft is 1-3/8" 6-spline yoke on the tractor end of the PTO and has a 1-3/8" smooth round yoke on the implement end. It has an overall length of 44" from end to end completely closed up. This is a Eurocardan Series 5 PTO shaft with a 1/2" shear pin hole drilled through it. This PTO shaft has a max rating of 47 HP@540 rpm or 72 HP @1000 rpm.
Specifications
- Eurocardan Series 5 PTO
- 1-3/8" 6-Spline by 1-3/8 smooth round
- 1/2 In. shear pin hole
- Extended length: 62.2"
- Collapsed length: 44"
- 47 HP @ 540 RPM
- 72 HP @ 1000 RPM
Smooth Bore & Shear Pin Implement End Yoke
| Assembly Description | Series Size | Length Overall | Description I.E. = Implement End T.E. = Tractor End |
|---|---|---|---|
| AX | 5 | 44" | 1 3/8" smooth yoke w/ 1/2" shear pin hole / 1 3/8-6 T.E. |
