AX5109#16400 (46OL) 1-3/8-6 SPL X 1-3/8 6-Spline

AX5 (46"OL) 1-3/8"-6 SPL X 1-3/8 6-Spline with Clutch

Item #42969A
Write a Review

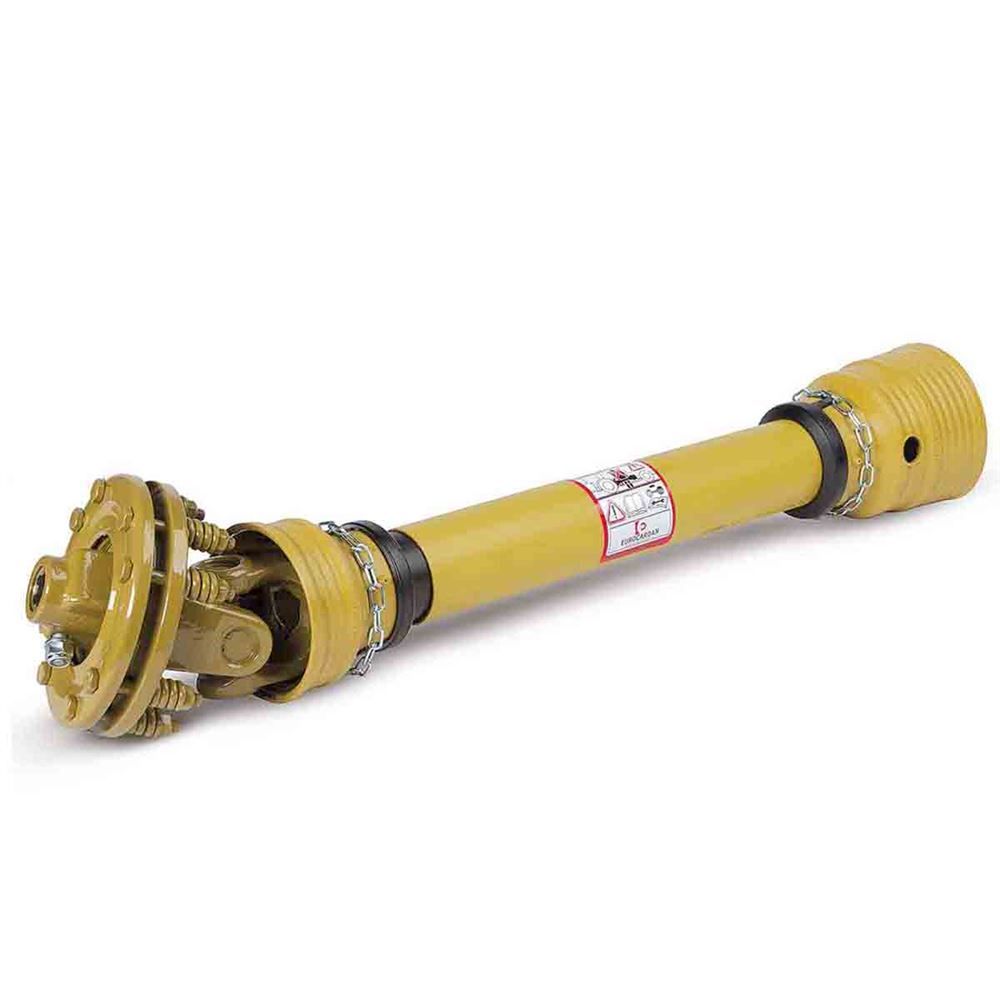

This Eurocardan splined implement end yoke shaft assembly has an overall closed length of 46 inches and has a 1-3/8-6-spline x 1-3/8-6-spline with slip clutch. This is a popular replacement for some of the older Hardee® 5 and 6 foot mowers.
100% Satisfaction Guaranteed
Product Overview

 Specifications

  • Eurocardan
  • PTO Shaft with clutch
  • Part Number: AX5109#16400
  • Series 5
  • 1-3/8 SPL x 1-3/8 SPL w/ Slip Clutch
  • 35" Cross to Cross
  • Max HP 540/1000 - 49/77
  • Closed length: 46 inches
  • 47 HP at 540 RPM
  • 72 HP at 1000 RPM
  • Safe extended length: 64 inches
  • Popular replacement for some of the older Hardee® 5 and 6 foot 3pt hitch rotary mowers.

Slip Clutch Implement End Yoke

Assembly DescriptionSeries SizeLength OverallI.E. = Implement End T.E. = Tractor End
AX5546"FD2 slip clutch 1 3/8-6 I.E. / 1 3/8-6
