Ax5 (48ol) 1-3/8-6 Spl X

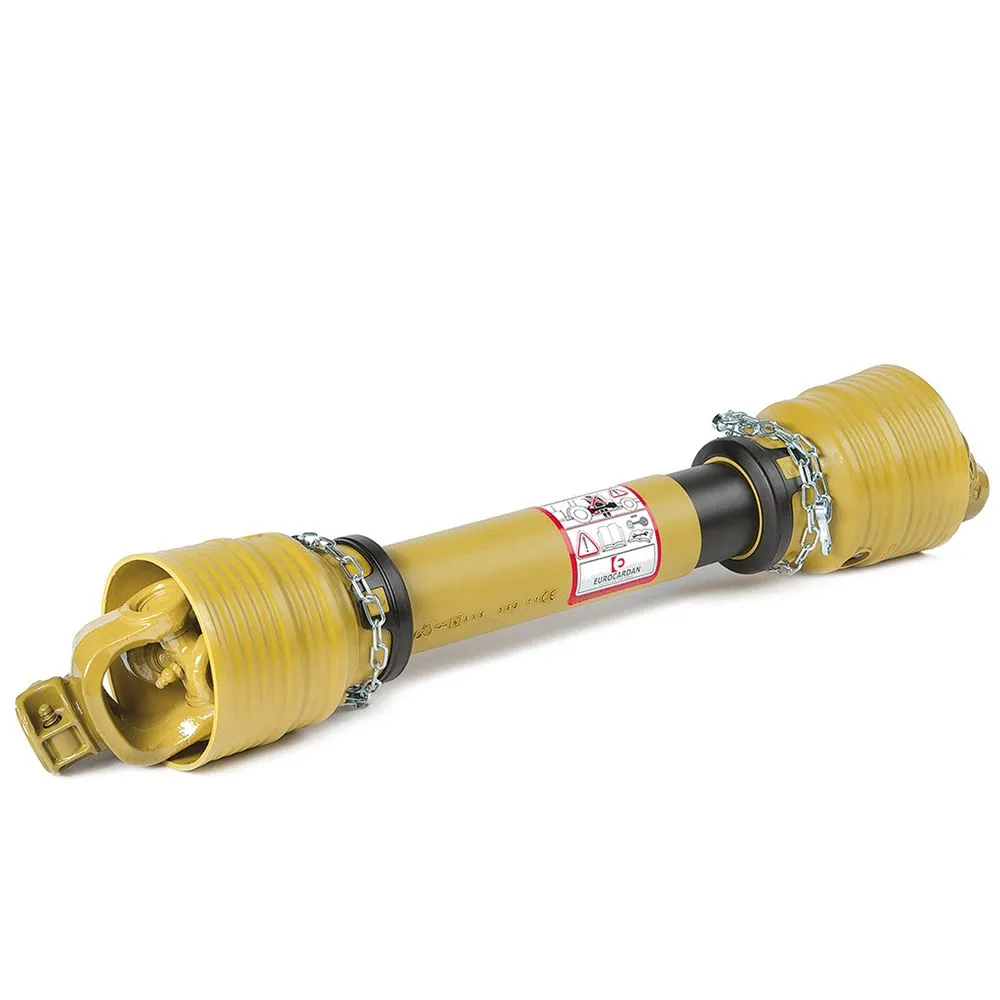

AX5 (48"OL) 1-3/8" 6-Spline x 1-1/2" Round with 3/8" Keyway & Set Screw

Item #45904A
Write a Review
This Eurocardan AX5 measures 48 inches overall length and measures 1-3/8 inch 6-Spline x 1-1/2 inch Round with a 3/8 inch Keyway & Set Screw.
Due to product size and/or weight, there is an additional shipping charge included.
100% Satisfaction Guaranteed
Product Overview

Specifications

  • Eurocardan
  • PTO Shaft
  • Part Number: AX55000-0072
  • Series 5
  • Keyway size: 3/8 in.
  • Extended length: 74 in.
  • Collapsed length: 48 in.
  • 47 HP at 540 RPM
  • 72 HP at 1000 RPM
  • Suggested "to fit": 6' Lift Mower
  • Max HP 540/1000: 47/74
  • Tractor End x Equip. End: 1-3/8" - 6 Spline x 1-1/2" round smooth with 3/8" keyway and set screw
  • Shielding included

Smooth Bore & Shear Pin Implement End Yoke

Assembly DescriptionSeries SizeLength OverallDescription I.E. = Implement End T.E. = Tractor End
AX5548"1 1/2" smooth bore / 3/8" keyway / set screw / 1 3/8-6 T.E.
