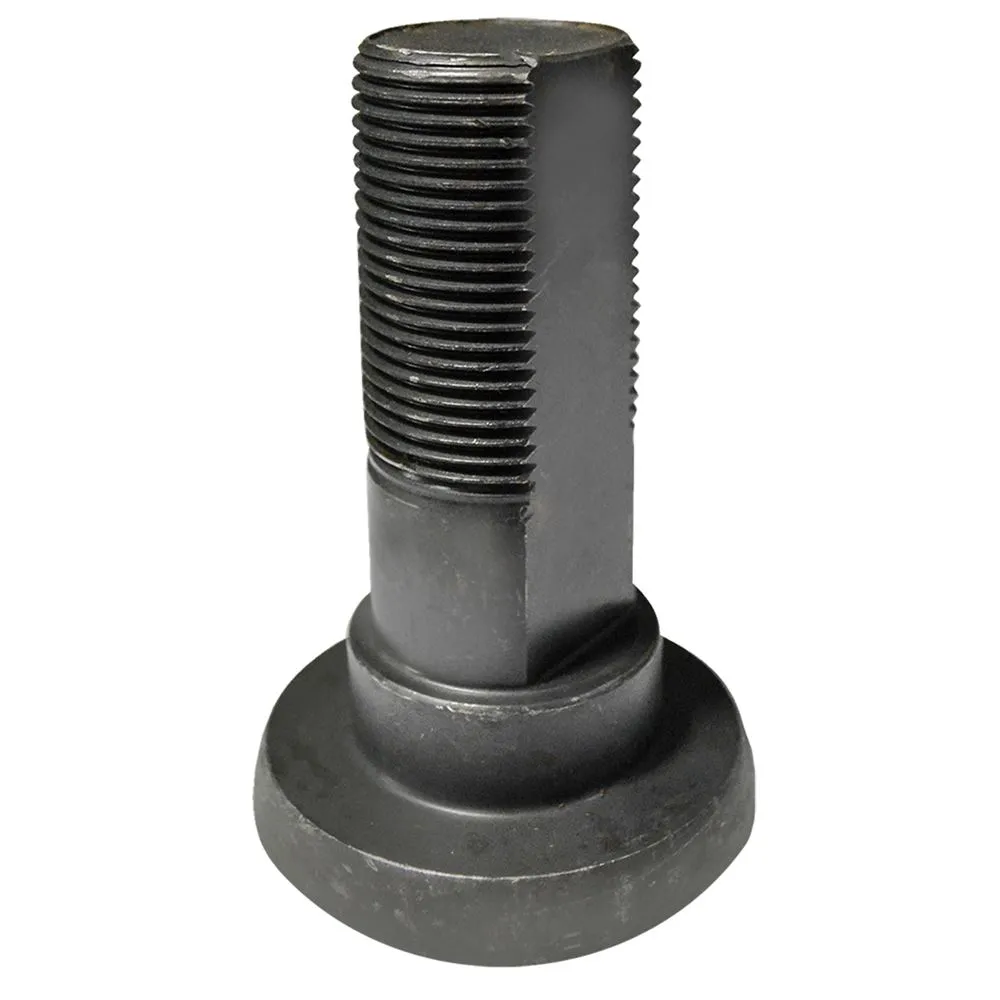

Blade Bolt to Fit Hardee Mower

Specifications

• Blade Bolt
• Part Number: BB-18
• Fits Hardee mowers (if the model requires a 1-1/4 inch diameter, should a 1-1/8 inch diameter be needed, use BB10K Blade Bolt )
• OEM part numbers: Hardee-C-48 & 10313, 917079, A7A5548, BB-18, C-48, FIS18
• 1 1/4" x 12 threads, flat on one side, 2-3/4" Stub Length
• Overall length: 3.75"
• Usable length: 3.25" including shoulder
• Shoulder diameter for blade hole: 1.50"
• Bolt head diameter: 2.50"
• Thread size: 1-1/4" - 12 UNF with RH thread
• Nut use 29650 hex nut (sold by the lb.)
• Washer use 29834 (sold by the lb.)
• Replacement to fit: Hardee T52LP, PW, T172LT, C66, H-CO, H8115AIS, T166LTO, T172, H8, T160, T160LT, T160LTO, T166LT, T52PT, T8215PTW, T8215, T166, T172LTO Midwest
