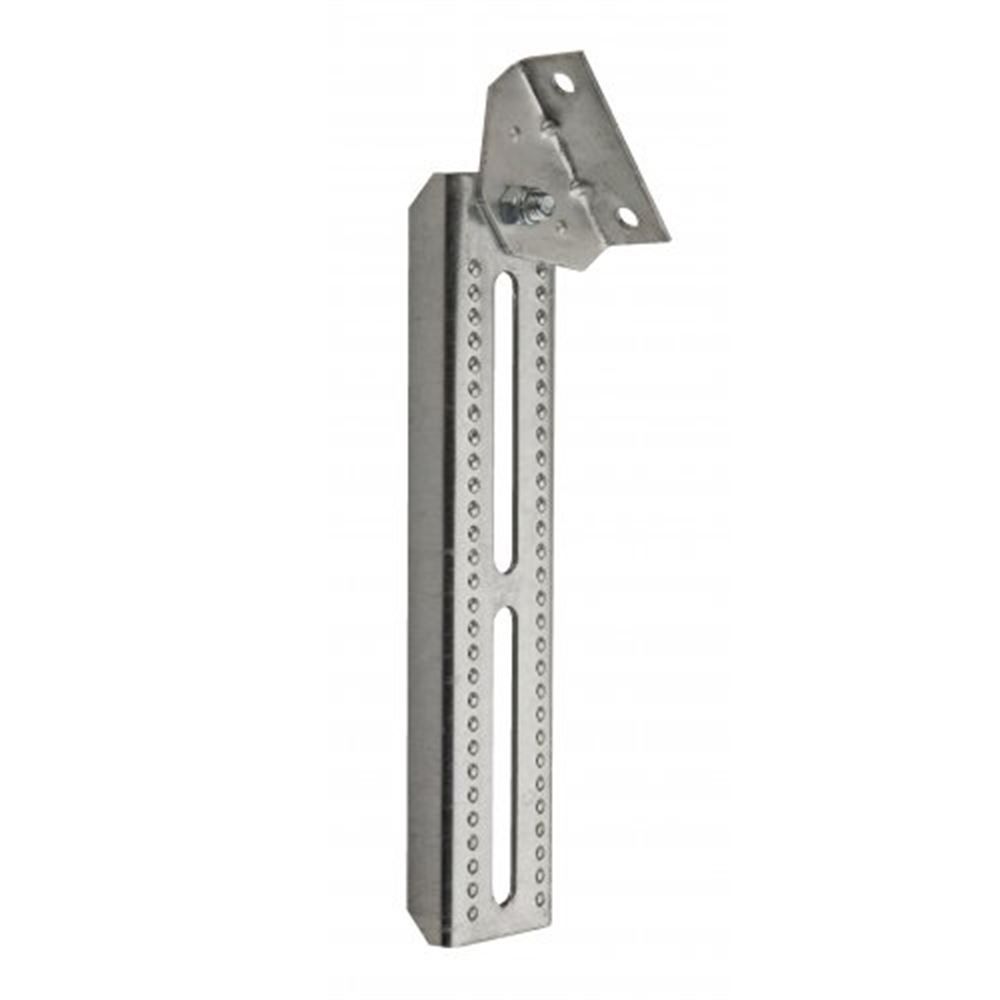

Bolster/Swivel Bracket Assembly, 12 In.

Bolster/Swivel Bracket Assembly, 12 In.

Item #90316
Write a Review
Roller bunks are supported by swivel brackets so that they may move accordingly to guide boats onto trailer ramps. This bolster bracket is a 12 in. long bracket with a swivel head attached. These can adjust to best fit rollers and trailer measurements.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Secure your roller bunkers so they can guide your boat properly. This adjustable swivel bracket measures 12 in. long by 2-1/2 in. wide and is constructed from 11 gauge metal for strength. The bolster bracket has 2 slots that are 1/2 in. wide and 1/2 in. apart from each other. Attached at the top is the swivel bracket, this has holes measuring 1/2 in. There is a bunk bracket that connects to the swivel bracket and the bunk brackets dimensions are 1-3/8 in. x 3-1/2 in. Overall these pieces are galvanized to help protect them against rusting or other damages from harsh marine climates. When all pieces are assembled the length reaches 13 in.

Specifications
  • Swivel Bolster Bracket Assembly
  • Galvanized for sea or fresh water climates
  • Bolster construction: 11 gauge metal
  • Bolster bracket: 12 in.
  • Width: 2-1/2 in.
  • Width of slots: 1/2 in.
  • Diameter of swivel hole: 1/2 in.
  • Swivel bracket construction: 11 gauge metal
  • Bunk bracket: 1-3/8 in. x 3-1/2 in.
  • Diameter of bunk bracket holes: 3/8 in.
  • Swivel flange: 2 in. x 3-1/2 in.
  • Diameter of swivel flange hole: 1/2 in.
  • 2-1/2 in.
  • Assembly length: 13 in.
