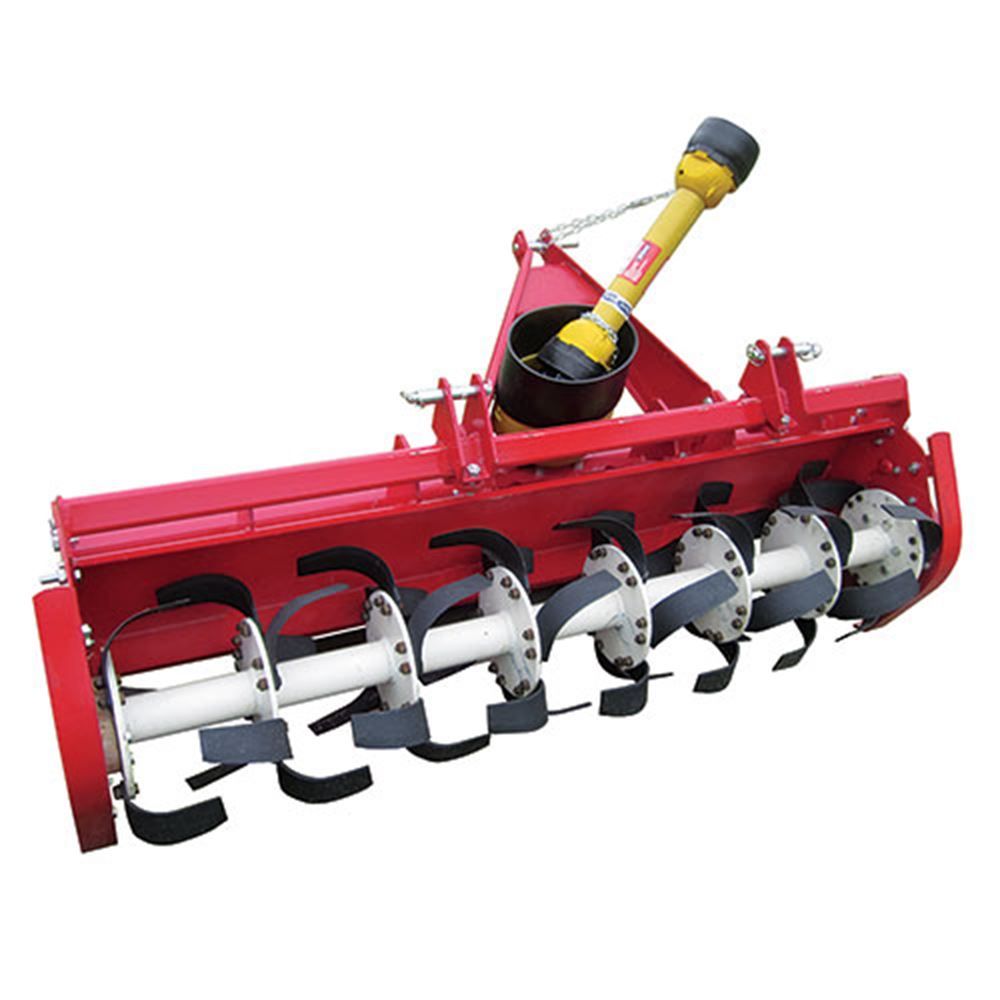

Caroni Tillovator with Clutch, 67 In. Width

Created by Caroni, this FM1700ASC rotary tiller can handle a small to medium sized farm and quickly hitches to any 35 to 60 HP pull along tractor. Measuring across with a 67 in. working width and an 8 in. depth, this tiller has eight flanges with 42 tines in total. It includes a Category 1 quick hitch and a manual tension regulator, as well as a universal joint with clutch for quick connections. A third floating point allows for a 6-1/2 in. displacement to the right to keep the 540 rpm PTO shaft aligned.

Specifications:

• Caroni FM1700ASC Rotary Tiller
• Working width: 67 in.
• Working depth: 8 in.
• 6 holes per disc, 42 tines total
• Manual tension regulator
• Number of flanges: 8
• 4 holes, 10" front to back (inside holes are 3-1/2" apart sided to side)
• Outside holes are 4-1/2" apart holes are 1/2" diameter
• 2 center slots are 2-1/2" long and 9/16" wide
• Displaces to right 6-1/2 in.
• Weight: 667 lbs.
• Standard adjustable hitch
• Universal joint with clutch
• Tractor power: 35 - 60 HP
• PTO speed: 540 rpm
• Third floating point
• Category 1 quick hitch
• Replace right hand blades with ASC # 101402
• Replace left hand blades with ASC # 101403
• Replacement 43415 - Left Support
• Replacement 43416 - Right Support
• Replacement 43184 - Replacement Hood
• Replacement 45902A - (37.8" OL) PTO Shaft with Clutch

Parts Breakdowns:

• 67" Rotary Tiller - FL1700

Additional Information:

• Caroni Rotary Tillers FL & FM Series - Brochure

From 32 in. to 72 in. working widths, we offer a wide variety of tillovators and Caroni mower parts to choose from.
