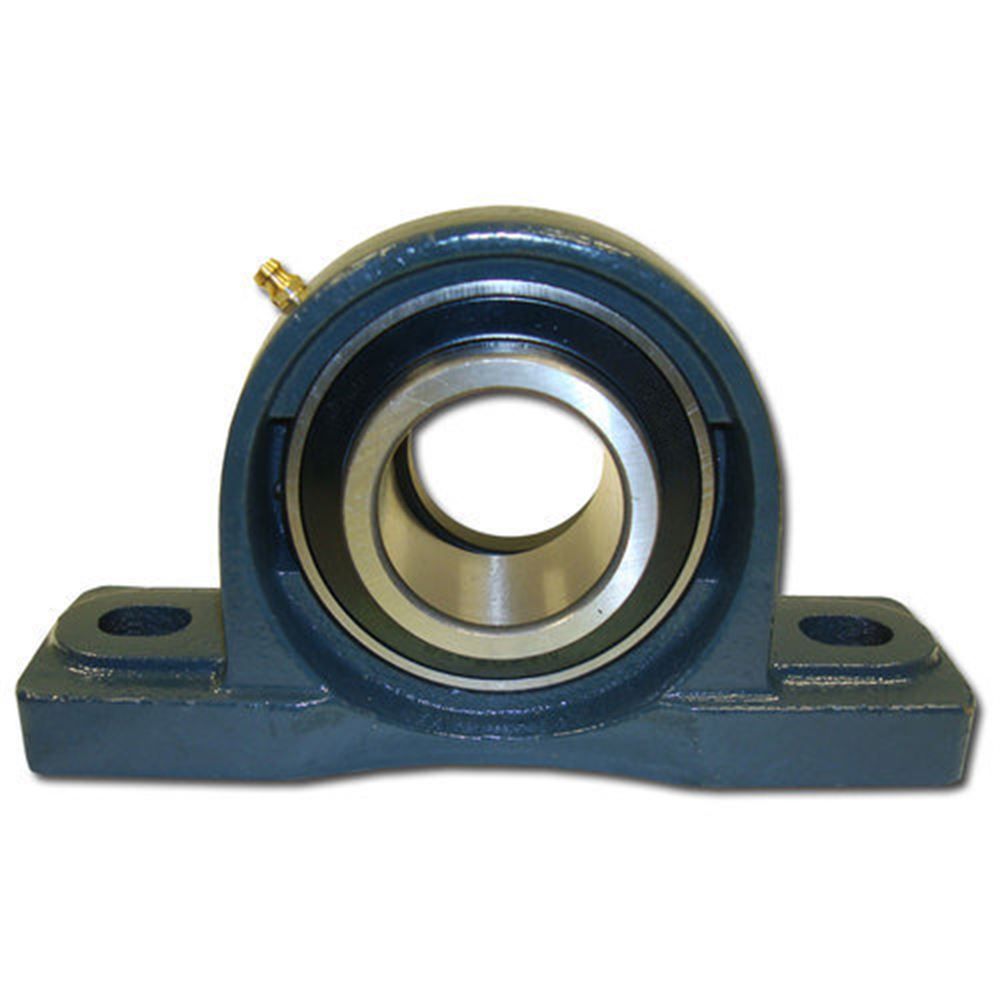

Pillow Block, 1-5/8 "

Pillow blocks are useful pieces of equipment that consist of a housing unit and bearing. The housing application may be bolted down to a structure so that it stays solid while the inner rotating process is occurring. Constructed from cast iron, this pillow block has excellent longevity. The dimensions of this heavy-duty pillow block bearing are as follows: the shaft size is 1-5/8 inches, the shaft height is 2.13 inches, the overall length is 7.47 inches, and the overall height is 4.15 inches. There are 2 bolt holes located on each side of the bearing, these measure 5.75 inches in distance from each other. Located near the top of the pillow block is a grease fitting to feed lubricant to the bearing.

Specifications:

• Pillow Block Bearing
• Construction: cast iron
• Shaft size: 1-5/8 in.
• Shaft height: 2.13 in.
• Overall length: 7.47 in.
• Overall height: 4.15 in.
• Bolt distance: 5.75 in.
• Comes with bearing
• Grease fitting
• Cylindrical bore with Eccentric locking collar included
