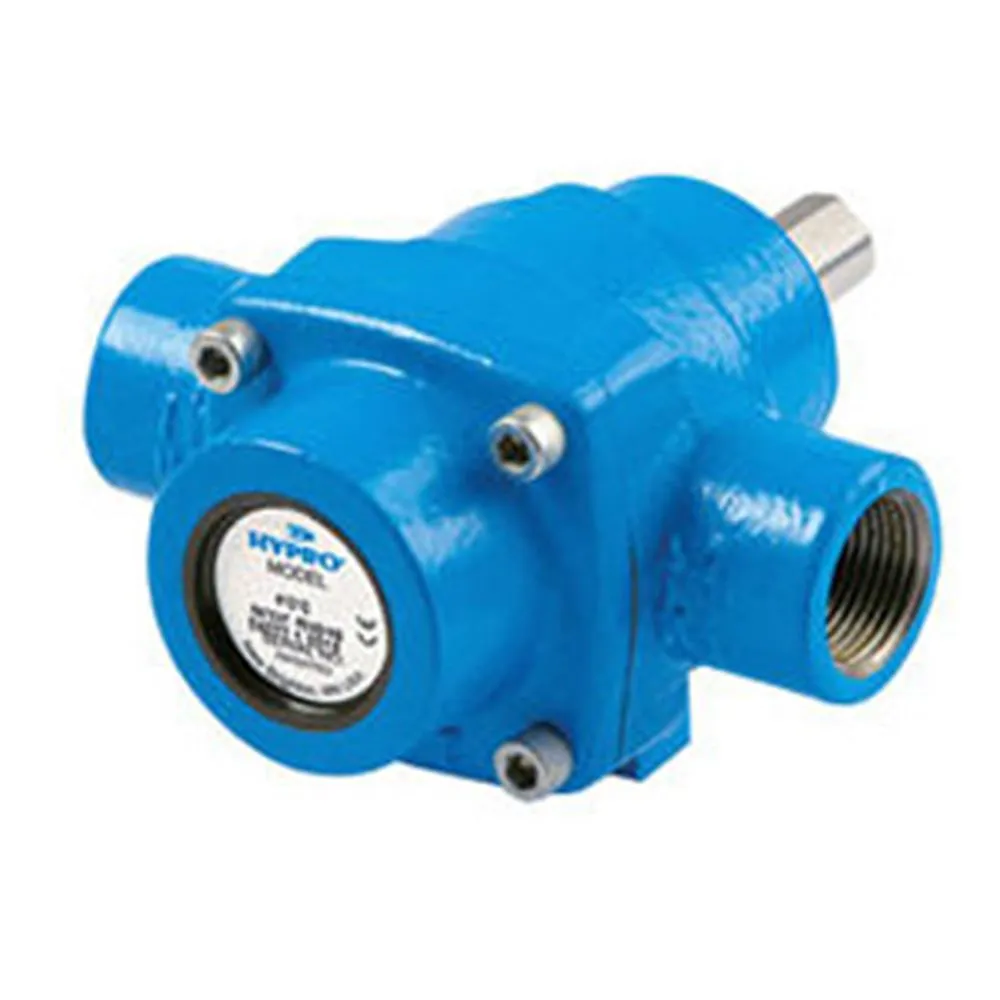

4101C-R 4 Roller Pump with Reverse Rotation

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids. The economical rotary-action roller principle requires no check valves while providing positive displacement characteristics with less friction and lower starting torque than other pumps.

Specifications

• Max. flow: 7 gpm/26.5 lpm at 2600 rpm
• Max. pressure: continuous 100 psi/6.9 bar; Max. pressure: intermittent 150 psi/10.3 bar
• Max. rated speed: 2600 rpm
• Max. fluid temperature: 140°F/60°C
• Rollers: Super Rollers standard (Poly, Teflon and Buna-N available)
• Housing: Cast Iron, Ni-Resist or Silvercast
• Port size: 3/4" NPT
• Shaft size: 5/8" solid
• Pump shaft rotation: CCW/Reverse Rotation
• Shaft Seals: Viton standard (Buna-N available)
• Available shaft adapters
• Rotor: Cast Iron, Ni-Resist or Silvercast
• Weight: 5 lbs./2.3 kg
• For coupler use item 27305
• For Torque bar and chain use item 22382
