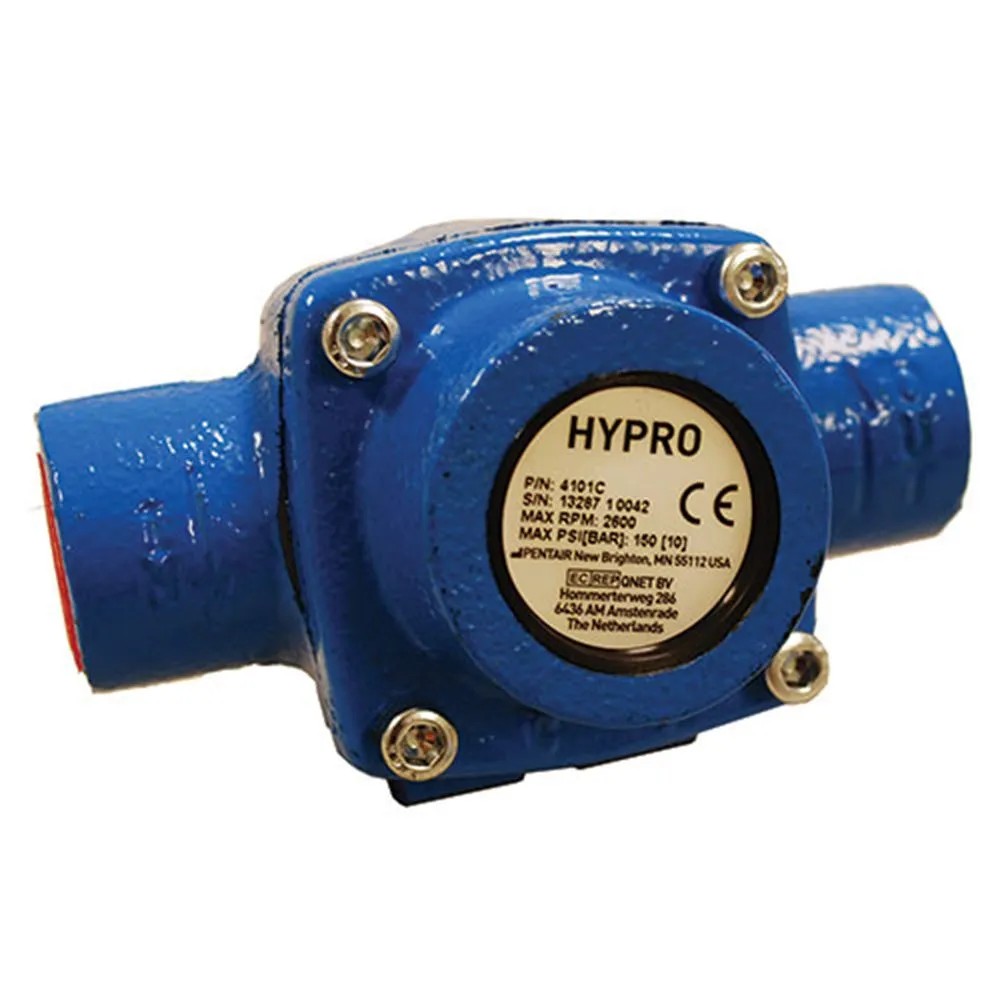

HYPRO® 4 Cast Iron Roller Water Pump

With a maximum continuous pressure of 100 PSI and a maximum intermittent pressure of 150 PSI, this cast iron roller pump can handle fluids up to 140 degrees in temperature. The port size is 3/4 in. and the shaft seals are standard Viton seals. This four roller pump is cast iron and has a 5/8 in. solid shaft.

Specifications

• Hypro Cast Iron Roller Pump Model 4101C
• Port Size: 3/4 in. NPT
• Maximum flow rate: 7 gpm at 2,600 rpm
• Maximum continuous pressure: 100 PSI
• Maximum intermittent pressure: 150 PSI
• Maximum rated speed: 2600 rpm
• Maximum fluid temperature: 140 degrees
• Pump shaft rotation: CW
• Viton shaft seals
• Standard rotation directly couples to gasoline engines
• Special torque arm and base kit is available for gas engines
• Quick coupler not included: Use ASC# 27305 Duel speed coupler 540/1000 RPM
• For Torque arm and chain see item 22382
