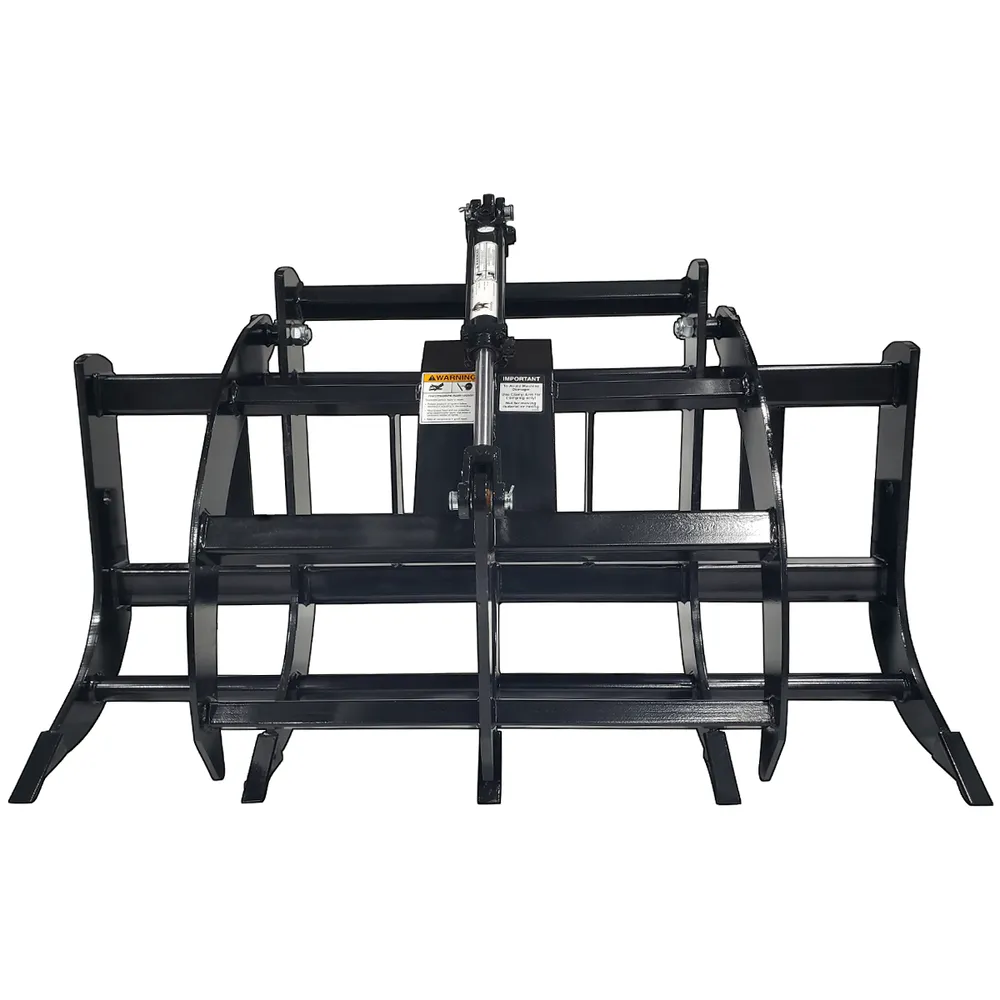

Grizzly® Compact Grapple Hook

Specification

• Grizzly®
• Compact Grapple Hook

• Product Number: 811460
• Overall Width: 60"
• Overall Depth: 23"
• Overall Height: 38.77"
• Grapple Opening: 27"
• Upper Grapple Widths: 34"
• Tine Spacing: 15"
• Number of Lower Tines: 5
• Reinforced Tubes Between Lower Tines: Yes
• Number of Hydraulic Cylinders: 1
• Cylinder Bore: 2"
• Cylinder Stroke: 8"
• Cylinder Pressure Rating: 3000 PSI
• Weight: 359 lbs.
• Unique upper grapple design of 3/8" steel provides clamping force to hold material securely
• Design allows brush and other materials to be picked up while leaving the dirt
• Size compatible with the lift capacity of most small loader tractors
• Lower tines of 5/8" steel feature weld-on tine points, for easy, clean debris pickup
• Pivot points have lubrication capabilities
• Tractor remote hydraulic ports are required to operate the grapple
• Tractor front loader model allows the use of standard pin-on brackets or select interfacing quick attach brackets for John Deere, AGCO, CNH, Kubota and other brands
• Model 4062S is designed for tractor front loaders with "universal" skid steer style quick attach
