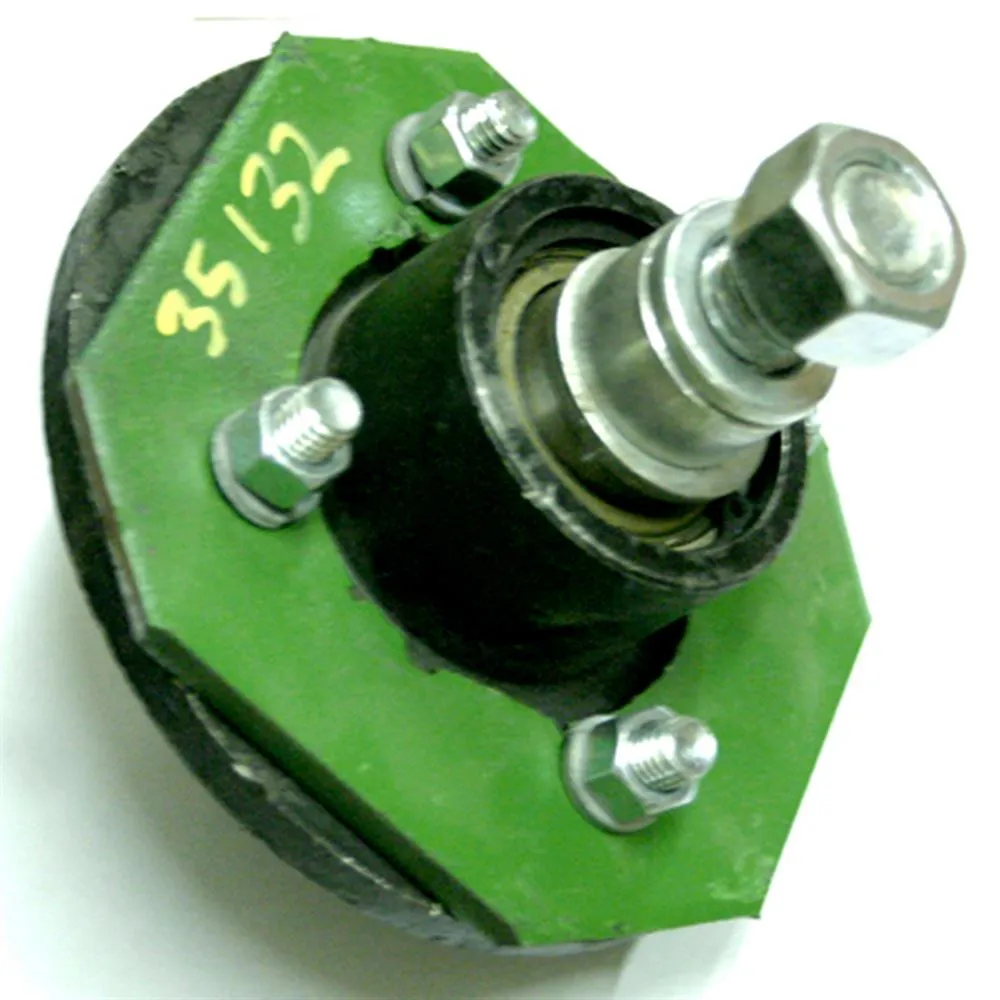

Coulter Hub Assembly, CLTR ASSY KMC

Specifications

• 2-5/8" Round Center Hole
• 4 hole 3/8" bolt hole size on a 3-5/8" bolt pattern
• Hub to fit the following Coulters: 109076 - 20" Fluted, 25921 - 20" Flat, 25913 - 17" Fluted, 30821 - 14" Flat Coulter, 31050 - 14" Wavy
• Replacement 28795 - Coulter Hub to fit KMC Digger Shaker Inverter
• Replacement 29353 - Snap Ring KMC (2 required)
• Replacement 17854 - 205 RRAN Bearing (2 required)
• Replacement 14555 - 3/4" Set Collar (1 required)
• Replacement Axle Bolt 13206 - Hex Head Bolt 3/4" x 6" (Grade 2) - (1 bolt required)
• Replacement Axle Nut 13109 - 3/4" Finished Hex Nut N.C. - (1 nut required)
• Replacement Axle Washers 13089 - Flat Washer - (2 flat washers required)
• Replacement Lock Washer 13099 - Lock Washer - (1 lock washer required)
• Replacement 28848 - Reinforcement Ring for Coulter Hub
• Replacement 29721 - Spacer to fit KMC (fits between the 2 bearings)
