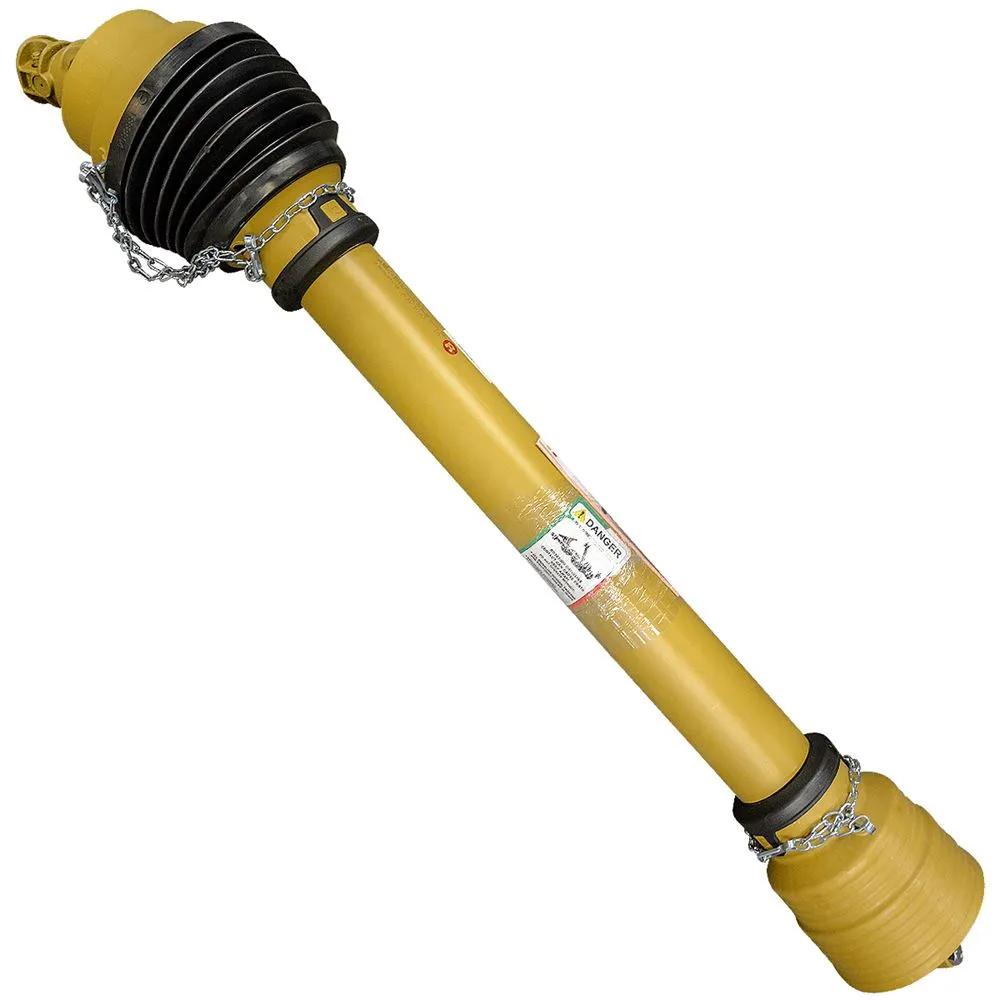

CV6 1-3/8" 6 Spline x 1-3/4" 20 Spline PTO Shaft

Item #109795
CV6 (69.1" Overall Collapsed Length) 1-3/8" 6 Spline x 1-3/4" 20 Spline PTO Shaft
Due to product size and/or weight, this product ships via Motor Freight Truck only. Liftgate service may not be available. Please be prepared to remove large items from the truck.
Product Overview

Specifications

  • Eurocardan brand
  • CV6 (69.1 Collapsed Length) 1-3/8" 6 Spline x 1-3/4" 20 Spline PTO Shaft
  • Eurocardan part number:
  • 69.1" overall collapsed length
  • Series 6
  • Tractor end: 80° CV with 1-3//8" 6 spline MPC
  • Implement end: 1-3/4" 20 spline interfering bolt
  • Type: ME61410CV-SPL
  • Safe extended length: 100.1"
  • HP to RPM ratio (540 RPM): 62
  • HP to RPM ratio (1000 RPM): 98
  • For push pin use ASC # 65772

Check out our selection of PTO Shaft Assemblies
