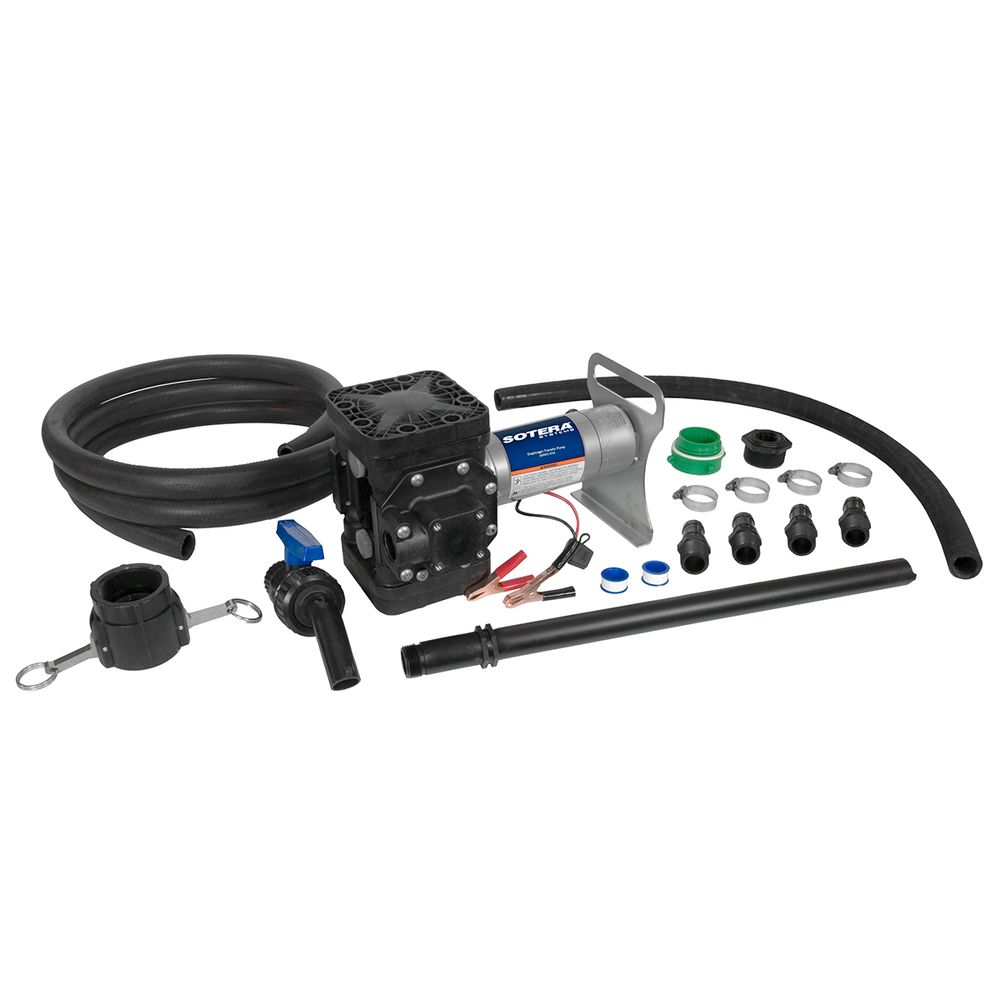

Diaphragm Pump Tote Kit, 12 Volt

Retain consistent amounts of pressure with this DC motor pump, thanks to its spring driven configuration. This pump has a suction range of 13 gallons per minute and pressure point of 15 psi. It comes equipped with EDPM suction hoses and seals, with the he suction lift is 10 feet. The pump housing is a durable glass-filled polypropylene. There is a thermal overload device for protection, but this air operated diaphragm pump has a max temperature of 130 degrees Fahrenheit. Other included important parts are the telescoping suction tube, motor bracket and connection fittings for this pump..

Specifications

• Fill-Rite® brand
• Product number: SS415BX731PG
• 12V DC 13 GPM Heavy-Duty Chemical Transfer Pump-N-Gp, 90° Inlet
• 12 volt
• 13 GPM pump
• 15psi
• Max temperature: 130 degrees F
• EPDM seals
• Santoprene diaphragms
• Telescoping suction tube
• Hose: 1 in. x 12 ft.
• Maximum particle size up to 0.100" diameter
• Thermally protected motor
• Perfect for Agriculture
• Fluid handling: chemicals
• Product series: 400 chemical
• Mounting type: bung mount
• Inlet/Outlet size: 1"
• Flow rate range (GPM): 0-13 GPM
• Motor power (HP): 0.25
• Motor speed (RPM): 2600
• Max discharge pressure (PSI): 15
• Max operating pressure (PSI): 15
• Current range (cSt): 0-3,000 cps
• Current range (A): 20 Amps
• Watts (W): 185
• Couplers and connection fittings
• Bung mount for top discharge
• This kit includes a motor bracket, suction hose, discharge hose, polypropylene suction pipe, polypropylene nozzle, and additional chemical fittings.

• Pumps: Antifreeze, motor oil, hydraulic fluid, liquid fertilizers, crop protection material, soaps, cleaning fluids and transmission fluid
• Not to be used for gasoline or diesel
• Included: Pump, Bracket on the pump, 2 F Camlock coupler with F threads, 2 x 1 reducer bushing, 1" x 12' EPDM discharge hose, and 23-40 polypropylene telescoping suction tube
