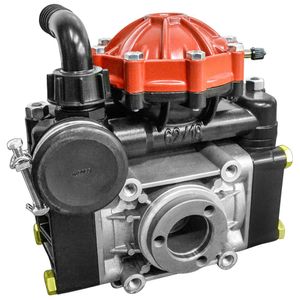

9910-D30 Diaphragm Pump

Download Manual

Specifications:
• Performance Information
• Max. flow: 9.5 gpm/36 lpm
• Max. pressure: 580 psi/40 bar
• Max. rated speed: 550 rpm (D30 and D30AP-A); 3600 rpm (D30GRGI and D30-B-GRGI)
• Max. fluid temperature: 140 degrees F/60 degrees C
• Other Attributes
• Port sizes: 1-inch HB inlet, 1/2-inch HB outlet
• Shaft (D30): flanged for shaft kit
• Shaft (D30AP-A): 3/4-inch solid thru-shaft
• Shaft (D30GRGI and D30-B-GRGI): 3/4-inch hollow shaft with gear reduction for 5 hp gasoline engine mount
• Pump shaft rotation: CW and CCW
• Housing components for liquid handling: epoxy-coated
• Diaphragms: 2, semi-hydraulic; Buna-N diaphragms (D30-B-GRGI)
• Weight: 23 pounds /10.4 kg (D30); 24 pounds /10.9 kg (D30AP-A); 33 lbs pounds /15.0 kg
