Directional Control Valve, MD30A64SA2-1

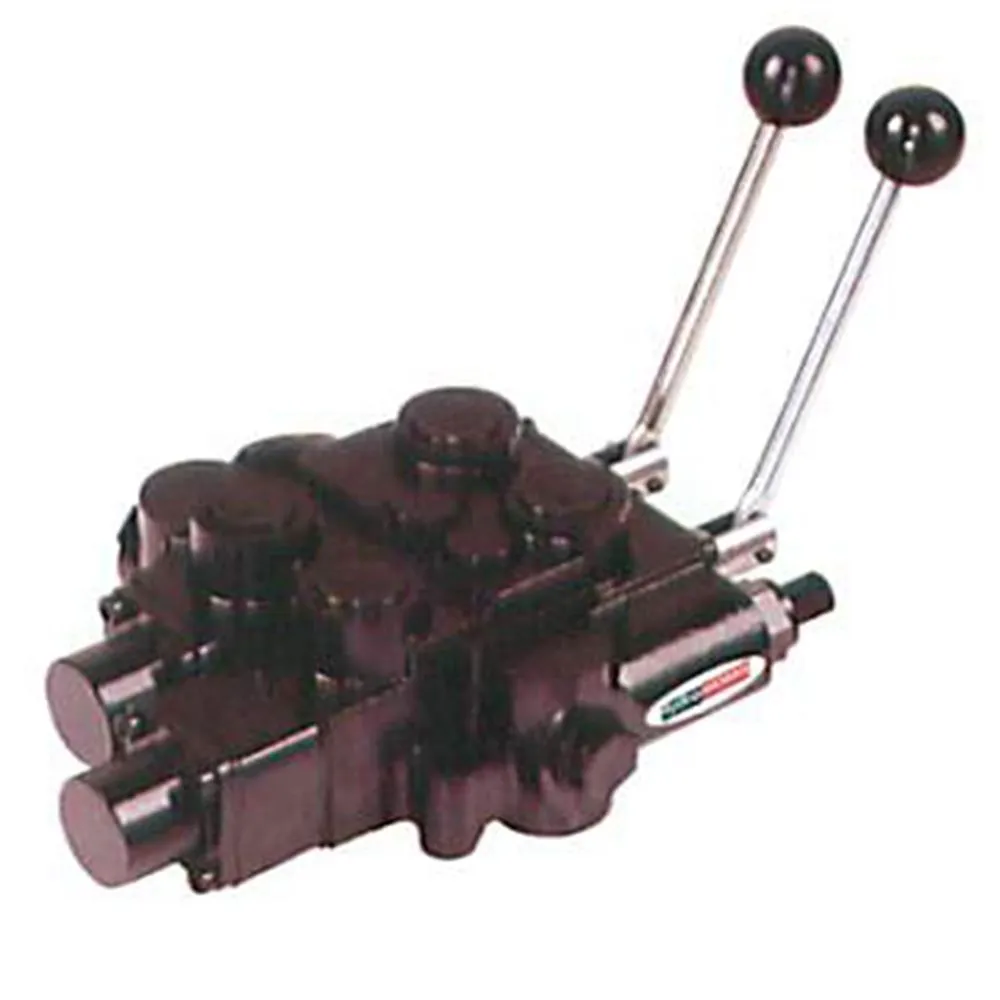

MD30 Mono-Block Directional Control Valve (2 Spool)
Agri Supply logo
Product Overview

MD30 Mono-Block Directional Control Valve (2 Spool)

  • Float Detent at 4th position on 1st spool
  • Spring Center to neutral from either work position
  • I/O port 3/4" NPT
  • Open center valve: overall width: 8"
  • Working Port 1/2" NPT
  • Economical Mono-Block construction of high tensile strength gray cast iron
  • Load check on each spool to prevent the fall of a cylinder as the spool is shifted
  • Hard chrome plated spool
  • Maximum continuous flow: 25 GPM
  • Maximum pressure: 3000 PSI
  • Built in relief valve, adjustable from 1500 to 3000 PSI, preset at 2100 PSI
  • For seal kit use ASC # 108934
82587 Diagram
