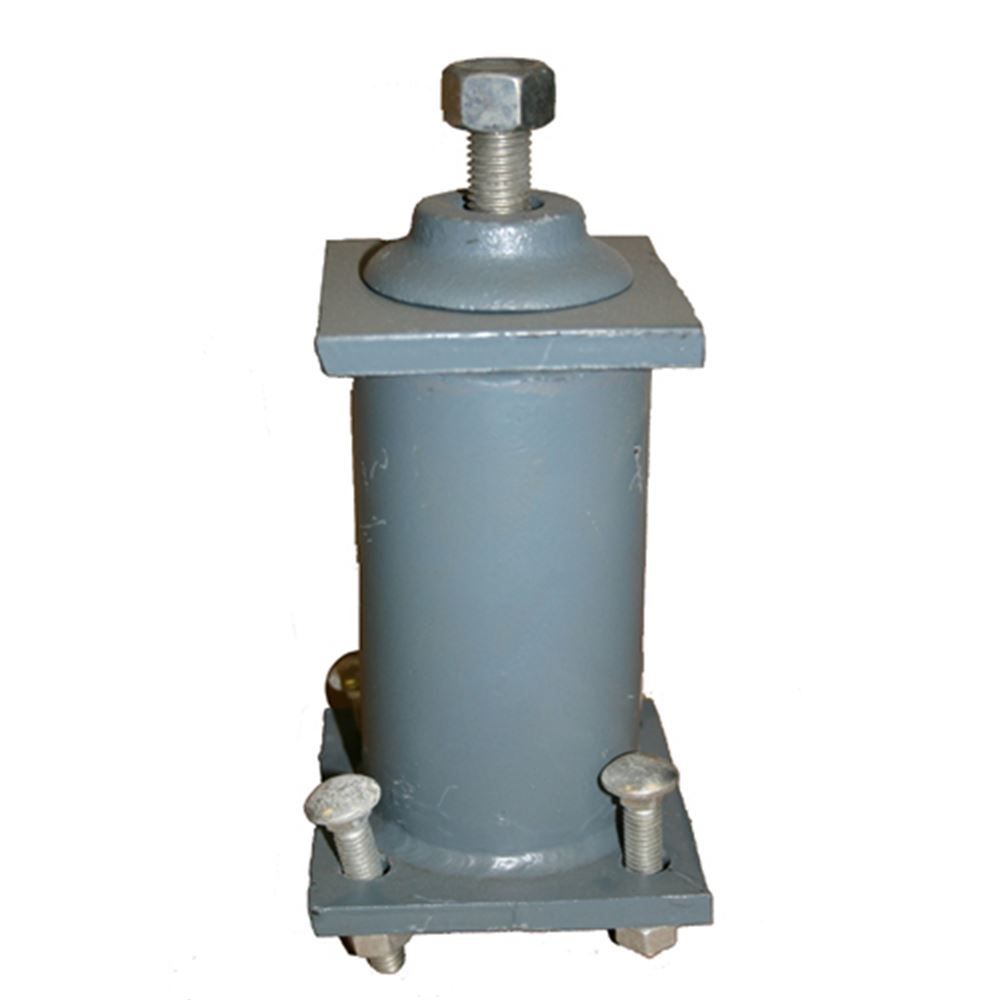

Universal Disc Harrow Extension / Furrow Filler

Utilizing a slightly smaller diameter blade than what your harrow is running will help fill in the furrow cut while making your swath. It fits many brand harrows with square axles measuring 7/8" or 1 1/8" inch.

Specifications

• Bolts onto 11657 for a 7/8" axle and 108676 1-1/8", which would take the place of your existing end washer.
• Use 25748 18" Plain Disc Blade to fill the furrow in the soil left by the disc harrow as long as this size is slightly smaller than your cutting blades.
• If so desired, using a worn older disc blade would also work so long as the blade was smaller.
• A conical washer is used to attach the blade of choice with a 5/8" bolt that tightens the nut to secure the added harrow blade.
• Attaching the extension to the harrow is accomplished by bolting the four included 3/8" x 2" carriage head bolts.
• Body length is 6-1/8 inches
• Overall length is 7-3/4 inches
• For 7/8 & 1-1/8 inch axles
• For replacement bolts on harrow mounting end, use 1/4 inch X 3 inch carriage head style.
• MFG Number: ES-08
• Disc Harrow Parts
