Disc Hub for KMC® Strip Tiller

Item #89455
Write a Review

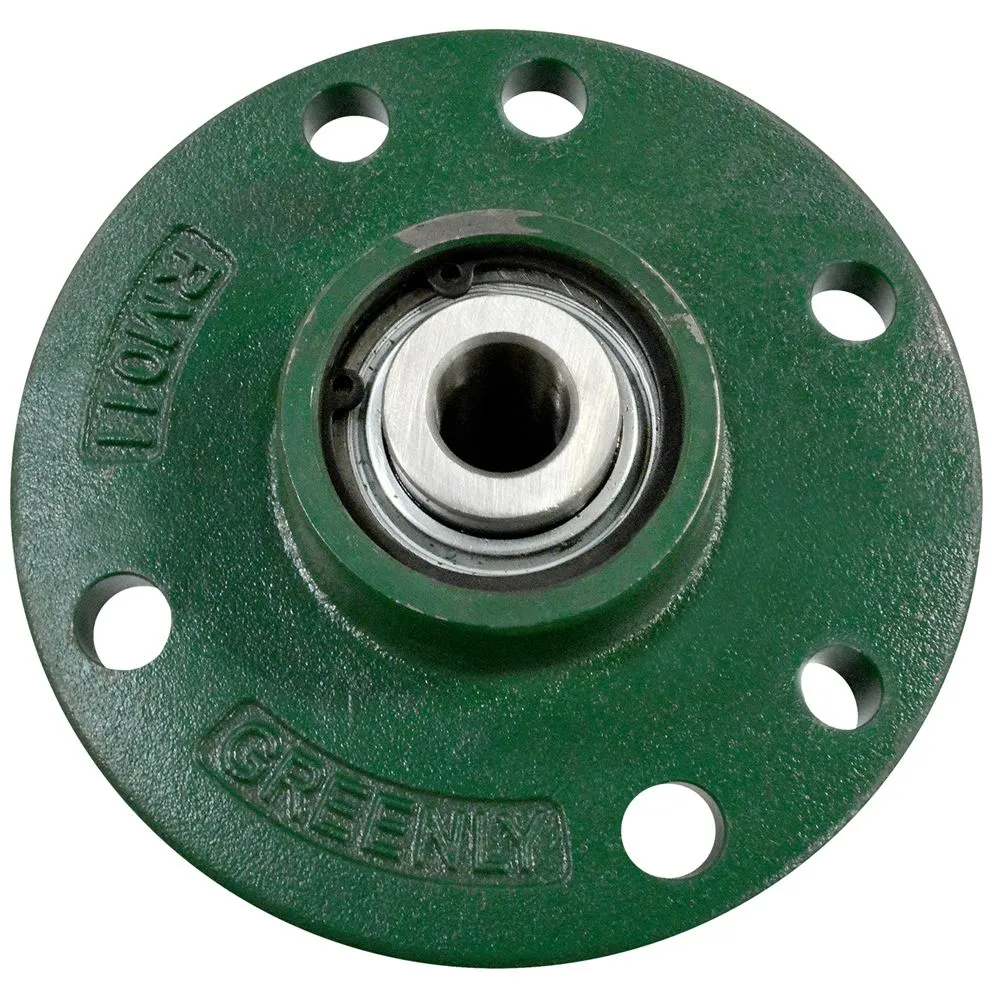

Replace worn disc hubs on your KMC strip tiller so that it functions properly. This disc hub supports the swivel coulters which allows them to perform a well secured operation. There are 4 bolt holes that surround this hub bearing for installation.
100% Satisfaction Guaranteed
Product Overview

This hub bearing is designed for KMC strip tillers, to secure the swivel coulters into position. The center diameter measures 3/4 inch and the bearing is tri-ply sealed. This sealed bearing protects the machinery from contaminants such as moisture, which could seep through and cause harm to the parts. The seal is also protected from abrasions when the machine is in action. There are 4 usable bolt holes to secure this disc hub, and the rim thickness measures 3/16 inch.

Specifications

  • Hub Assembly
  • Part Number: RM011K
  • Center diameter: 3/4 in.
  • Rim thickness: 3/16 in.
  • 4 bolt holes
  • To fit KMC® Strip-Till Rig
  • Supports swivel coulters
  • Tri-ply sealed bearing, protects against moisture and contaminants
  • Protects seal from abrasions
  • For replacement bearings (2 required) use 34471 - 205NPP9
  • For replacement snap rings (2 required) use 29353
