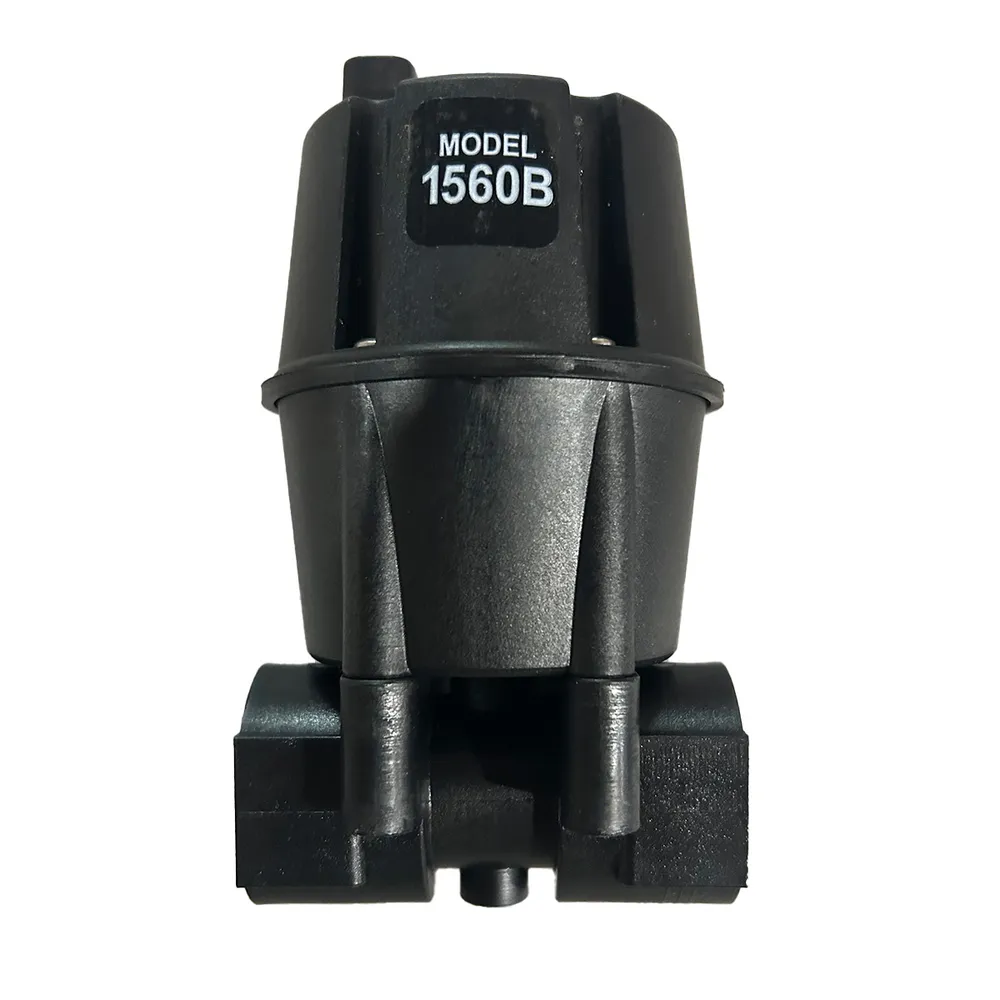

.75 in. NPT Pressure Regulator

The TIR pressure regulator is engineered for ease of use and built to meet the rigorous demands of virtually any job. This versatile model features a 0.75-inch female bypass and is designed to fit most standard hookups, ensuring reliable and consistent performance across a wide range of applications.

Specifications

• Texas Industrial Remcore
• Part Number: PR.1560B
• .75 in. NPT Pressure Regulator
• Female inlet and outlet
• Max Pressure: 150 PSI (1034 kPa)
• Recommended Flow Range: up to 50 GPM
• GPM-bypass at full close: <0.5
• Voltage DC: 12.0
• Current Draw: .9AMPS at 12 volts
• Actuation time at 12 volts: 1.0 RPM
• Glass-filled nylon housing
• 430 stainless steel metal parts
• PA12 butterfly valve
• Viton diaphragram, seat and seals
• Spade connection terminals
