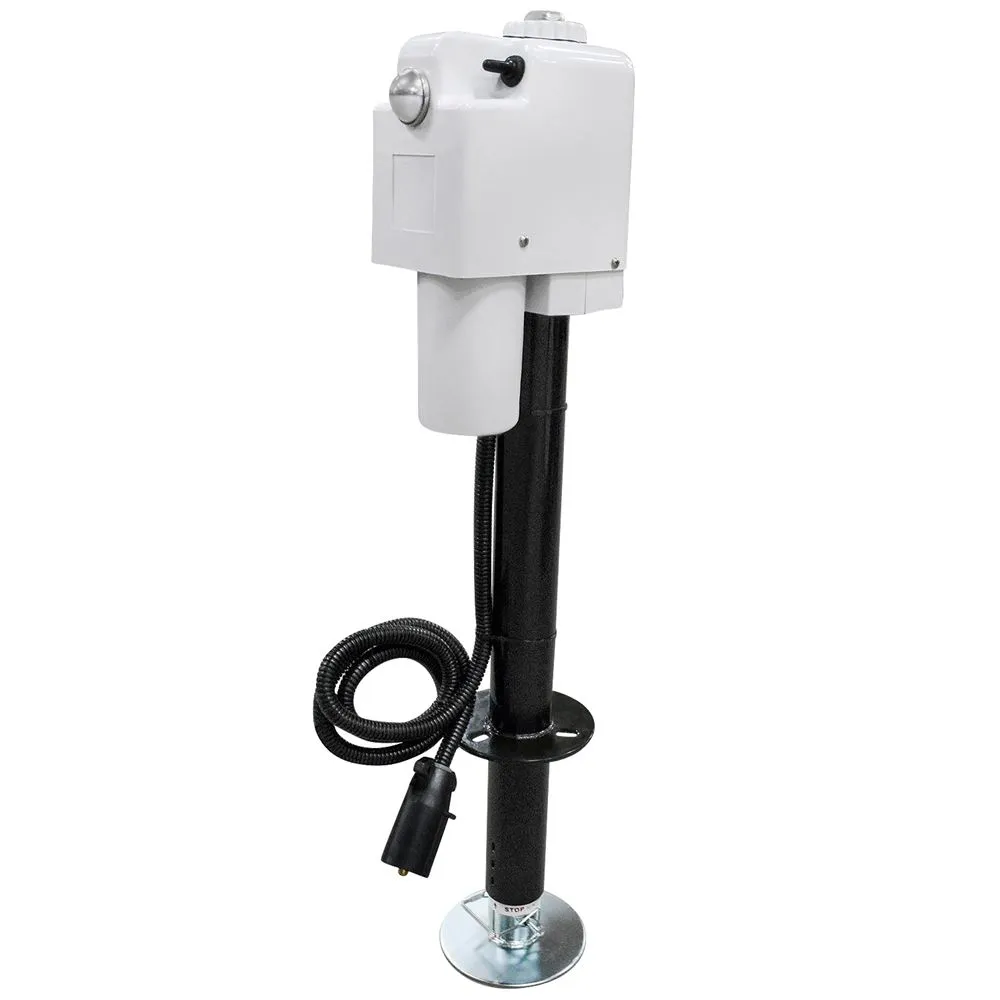

Electric Jack, 3500 Lb. Capacity

Item #101304
Lift trailers for maintenance with this electric trailer jack. It has a weight lifting capacity of 3,500 lbs, and a breakaway capacity of 5,000 lbs. The oversized foot pad measures 5-1/4 inches in diameter and helps prevent divots.
Product Overview

This electric jack operates from a 12 volt DC powered system. Attached to this electric jack is a 48 inch trailer connector power cord with a 7-pin plug, which provides the power source. This A-frame jack has a 24 inch stroke and a 30 second stroke time. There is a built in leveling gauge, a weather sealed switch, and a manual hand crank also included. Please refer to the instructions prior to use and do not exceed the weight capacity for safety purposes.


  • Electric Jack
  • Fits the 3-hole type A-frame trailer tongue couplers
  • Lifting capacity: 3,500 lbs.
  • Breakaway capacity: 5,000 lbs.
  • 12 Volt DC powered with crank override
  • Oversized foot pad: 5-1/4 in. diameter
  • 24 in. stroke
  • 30-second stroke time
  • 48-in. trailer connector power cord with 7-pin plug

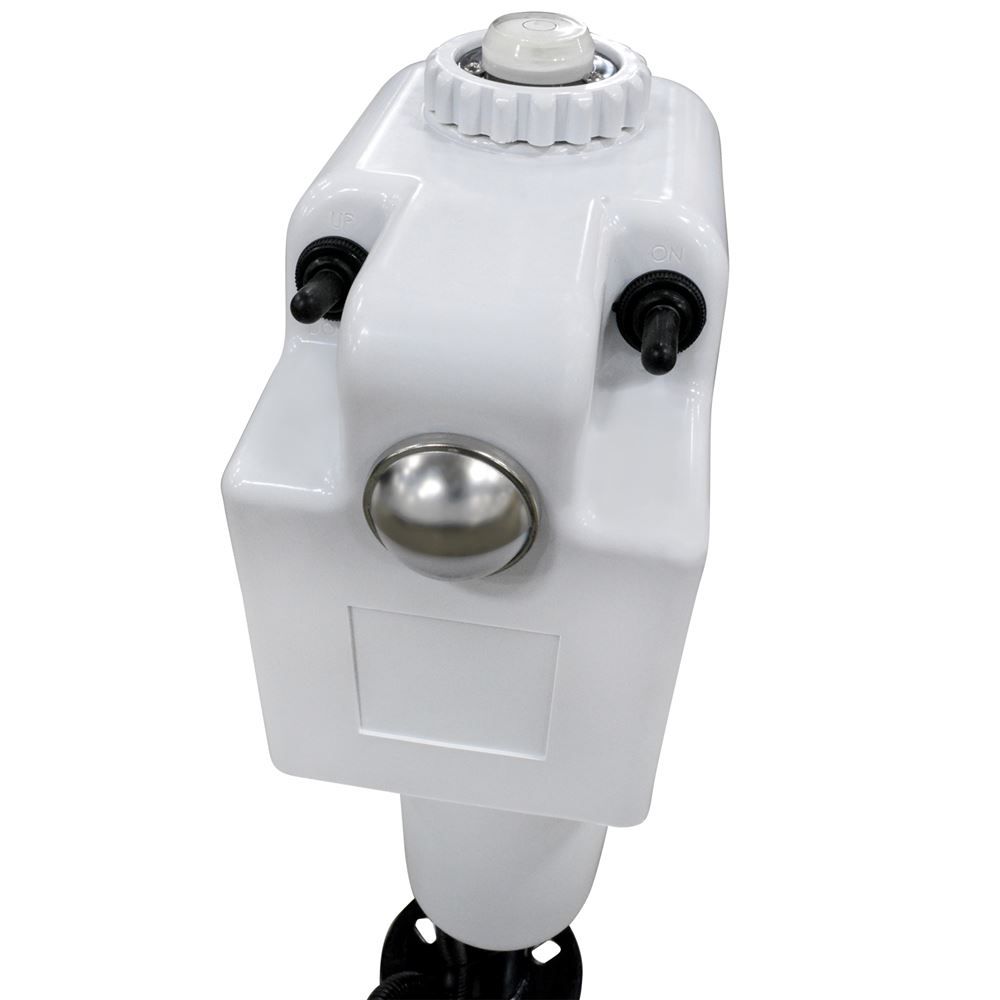

  • Leveling gauge
  • Weather sealed switch
  • Powder coated finish
  • Refer to safety instructions prior to use
