Gearbox Assembly

Specifications

• Top Gearbox Assembly
• Ratio: 1.46:1
• Input speed: 540 RPM
• Input shaft: 1-3/8" spline x 6-spline
• Shaft material: 20CrMnTi
• Gear material: 20CrMNTi
• Gearbox body material: QT450-10

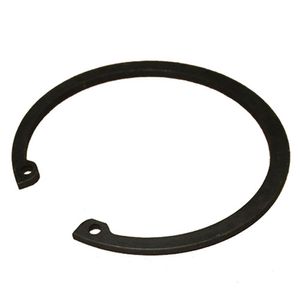

• Use ASC # 78815 72 mm retaining ring
• Use ASC # 78816 40 mm retaining ring
• Use ASC # 78819 output gasket 0.5 mm
• Use ASC # 78820 input gasket 9.4 mm
• Use ASC # 78821 input gasket 0.2 mm
• Use ASC # 78822 input seal double lip
• Use ASC # 78823sealed ball bearing (6308)
• Use ASC # 78824 ball bearing (6308)
• Use ASC # 78825 ball bearing (6307)
• Use ASC # 78826 ball bearing (6207)
• Use ASC # 78827 pinion shaft (13 teeth)
• Use ASC # 78828 output gear (19 teeth)
