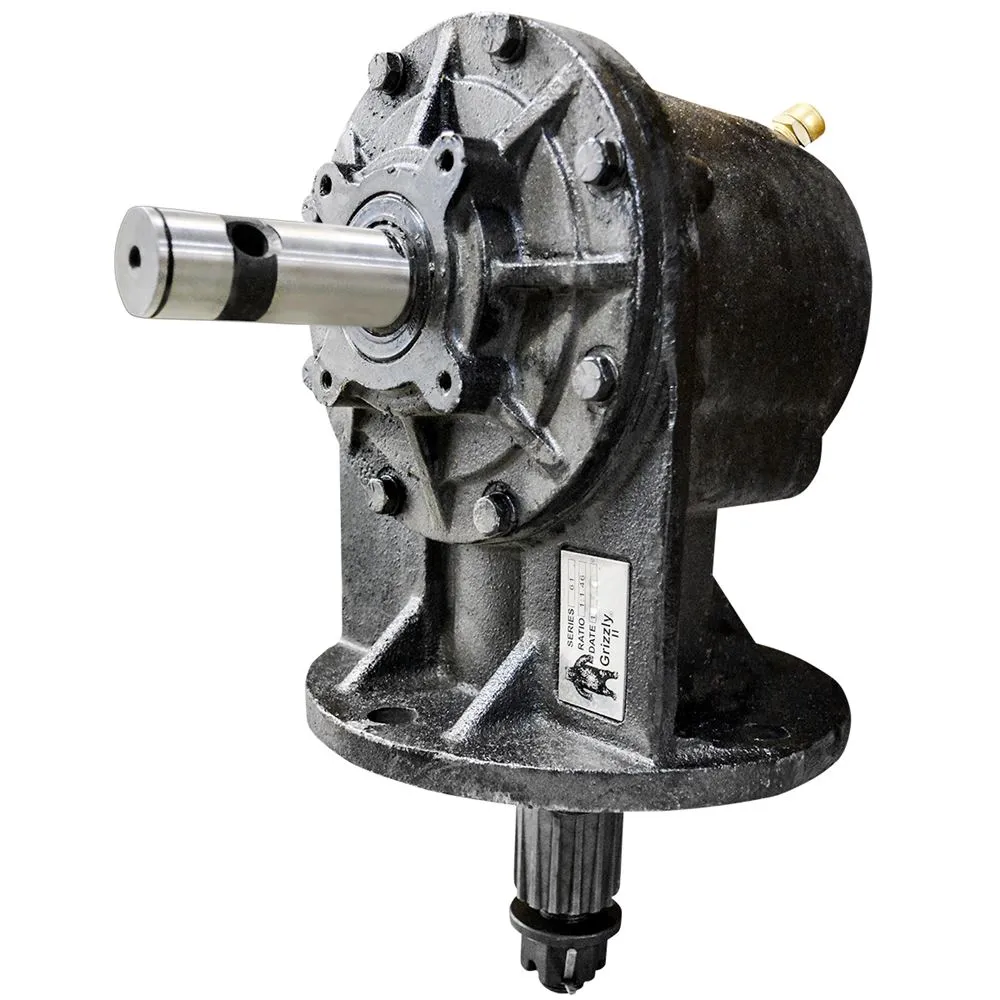

75HP Gearbox RW-610, Smooth 1-3/8 Input Shaft
Item #87856
This rotary cutter gearbox can provide a high powered operation to your 5 ft., 6 ft., and 7 ft. rotary cutters. It runs at 75 HP and has a smooth shaft that measures 1-3/8 in. The housing construction is extremely durable, constructed from ductile iron. Replaces Kodiak KDK03-0014 and other brands.
Product Overview
Gearboxes work to administer a transfer of speed and torque through their internal gear rotation, helping the overall performance of your rotary cutter. This RW-610 gearbox operates at 75 HP. The housing is constructed from durable ductile iron and the smooth input shaft measures 1-3/8 in. It has a beveled type of gear, with the gear ratio measuring 1:1.46. Designed for use with 5 ft., 6 ft., and 7 ft. rotary cutters, this rotary cutter gearbox has 4 bolt holes measuring 3/4 in. on an 8 in. bolt pattern for installment.
Specifications
- Gearbox RW-610
- Horsepower: 75
- Max RPM 540
- Shaft can turn in both clockwise and counter clockwise directions
- For 5 ft., 6 ft., and 7 ft. rotary cutters
- Housing construction: Ductile iron
- Input shaft: 1-3/8 in.
- Smooth shaft
- Gear ratio: 1:1.46
- Gear type: Bevel gear
- Bolt holes: 4, with 3/4 in. diameter
- Bolt pattern: 8 in.
- Output shaft 2" 15 Spline
- Rotation is CW or CCW with no modifications; It also comes with the castilated nut
- Output Shaft Splines are 2-1/2 inches long
- Output Shaft Overall Length is 4.5 inches
- For castle nut use ASC # 102241 - 1" Castle Nut
- For blade hub use ASC #89755
- For replacement outer input shaft snap ring, use #135429
- Replaces Kodiak KDK03-0014 and other brands
