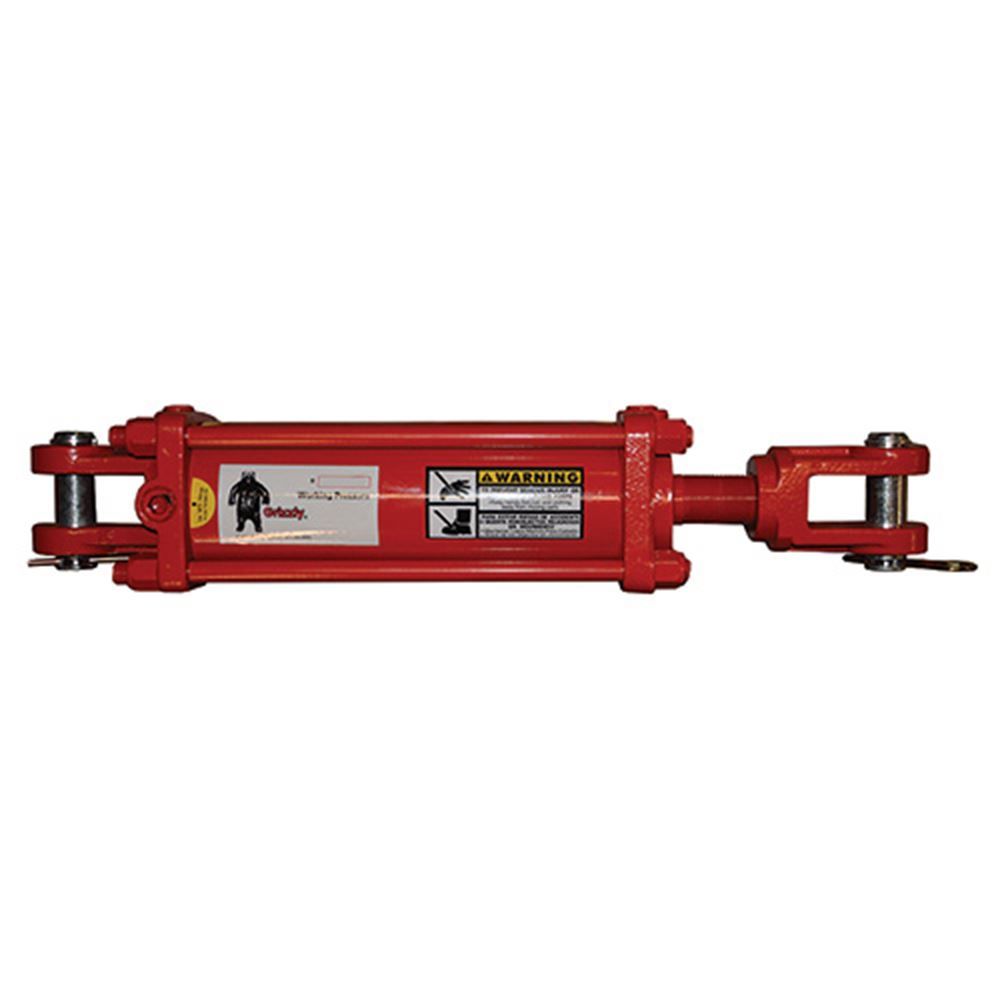

Hyd Cyl 2" x 10, 1-1/8", Rod 20-1/4", Rl 30", El 1", Cp Red

Specifications

• Hydraulic Cylinder
• Model number: T25201009R
• Bore x Stroke: 2 in. x 10 in.
• Rod Diameter: 1-1/8 in.
• Retracted Length: 20-1/4 in.
• Extended length: 30-1/4 in.
• Pin: 1 in.
• PSI: X
• Color: red
• Port: 3/8 in.
• Push lbs.: 7,584
• Pull lbs.: 5,369
• Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
