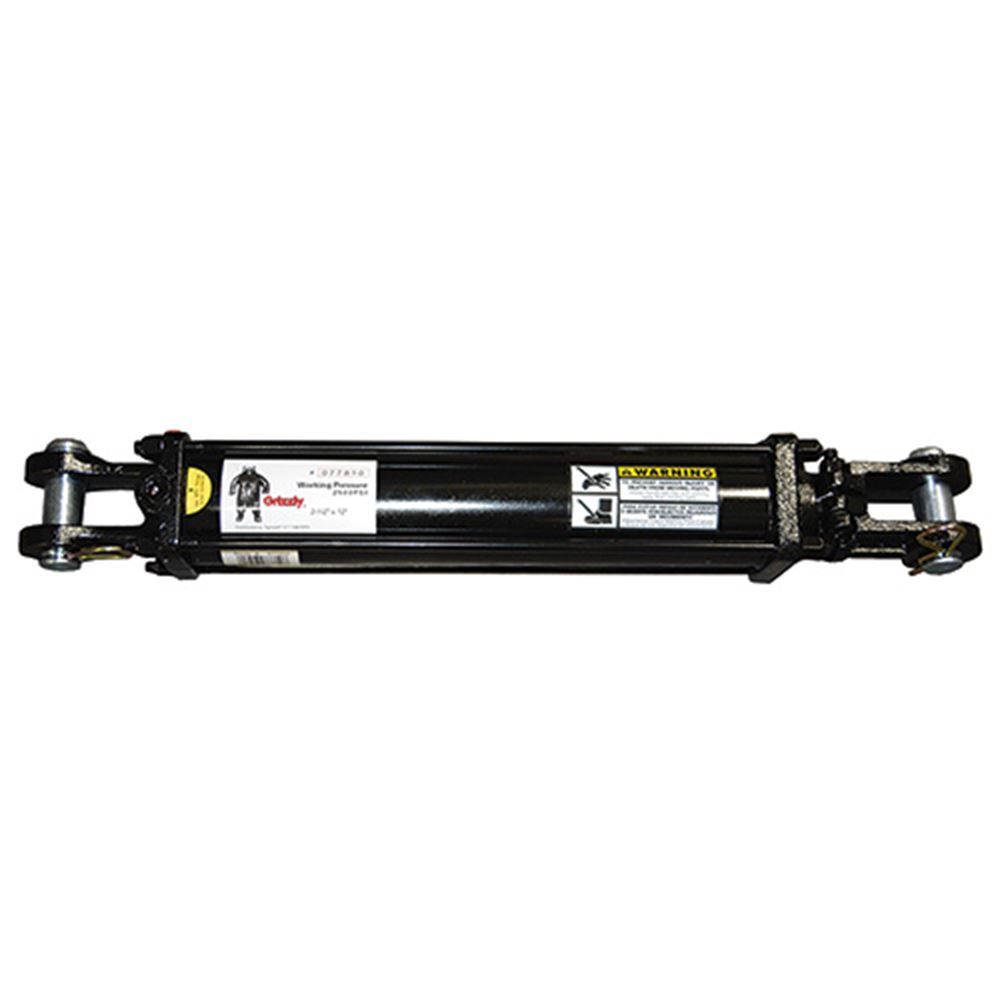

Grizzly® Hydraulic Cylinder, 2 In. Bore, 30 In. Stroke

Grizzly® Hydraulic Cylinder 2 x 30

Item #87066
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 2 in. bore and an 30 in. stroke. The retracted length is 40-1/4 in. and the rod diameter measures 1-1/8 in. Use this hydraulic cylinder for a working pressure of 2500 PSI.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 2" x 30" cylinder has a rod diameter of 1-1/8" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

    Specifications:
  • Grizzly® Brand
  • Bore: 2"
  • Stroke: 30"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 40-1/4"
  • Extended Length: 70-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI:
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
