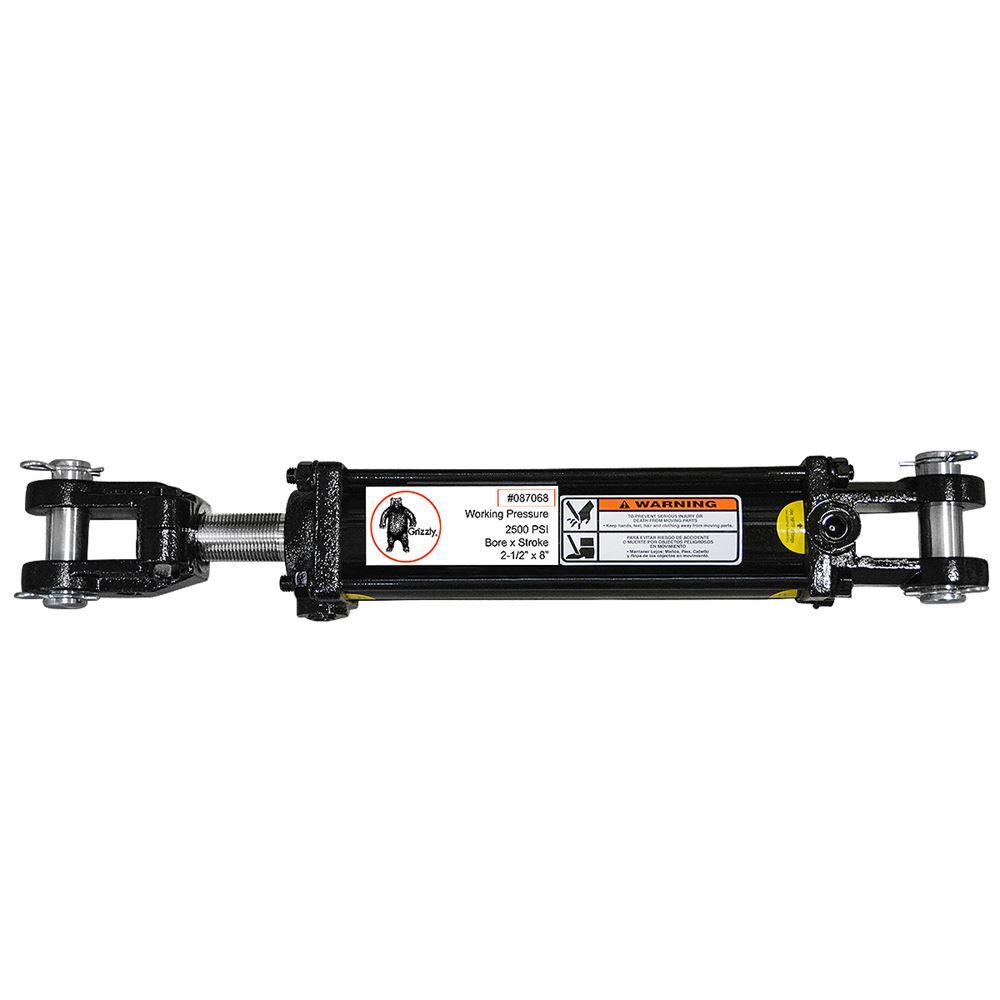

Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 8 In. Stroke
Grizzly® Hydraulic Cylinder 2-1/2 x 8 ASAE
Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 8 In. Stroke

Grizzly® Hydraulic Cylinder 2-1/2 x 8 ASAE

Item #87068
Write a Review
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 2-1/2 in. bore and an 8 in. stroke with a retracted length of 20-1/4 in. MPN-T25250809ASAE
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 2 inch bore with a 4 inch stroke and has a 1" inch pin.

    Specifications:
  • Grizzly® Brand
  • Bore: 2-1/2"
  • Stroke: 8"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 20-1/4"
  • Extended Length: 28-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
