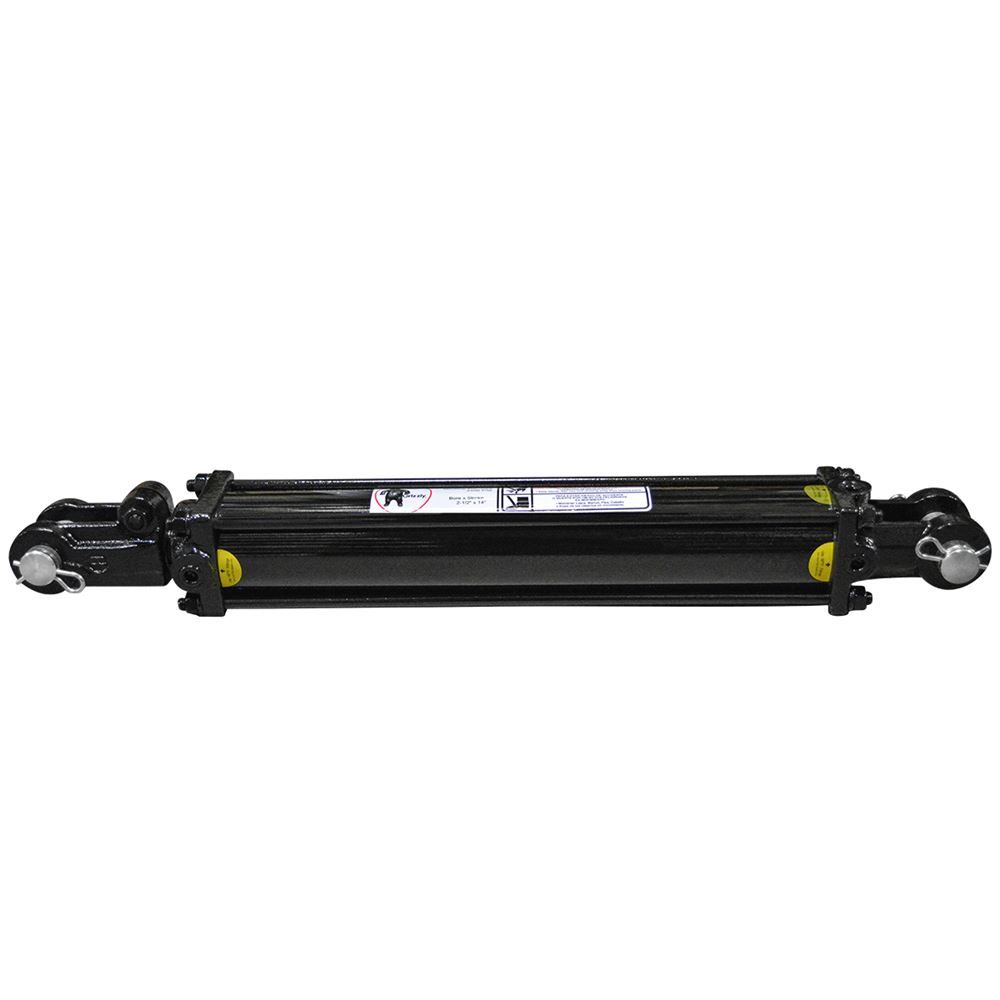

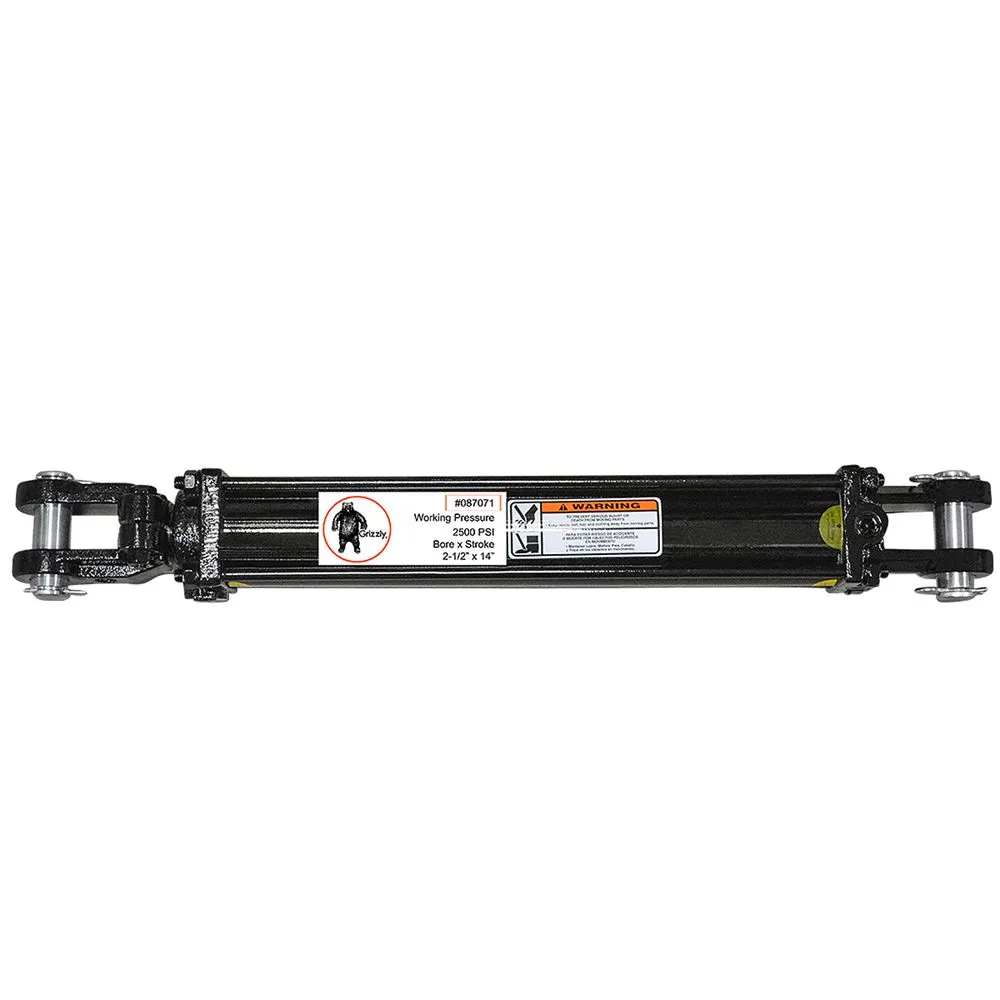

Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 14 In. Stroke
Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 14 In. Stroke
Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 14 In. Stroke

Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore 14 In. Stroke

Item #87071
Write a Review
Use this Grizzly® hydraulic cylinder for agricultural applications with a working pressure of 2500 PSI. Designed for high quality performance, this cylinder has a 2-1/2 in. bore and an 14 in. stroke with a retracted length of 24-1/4 in.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Specifications

  • Model number: T25251409
  • Bore x Stroke: 2-1/2 in. x 14 in.
  • Rod Diameter: 1-1/8 in.
  • Retracted Length: 24-1/4 in.
  • Pin: 1 in.
  • PSI: 2500
  • Color: Black
  • Push lbs.: 12,272
  • Pull lbs.: 9,787
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

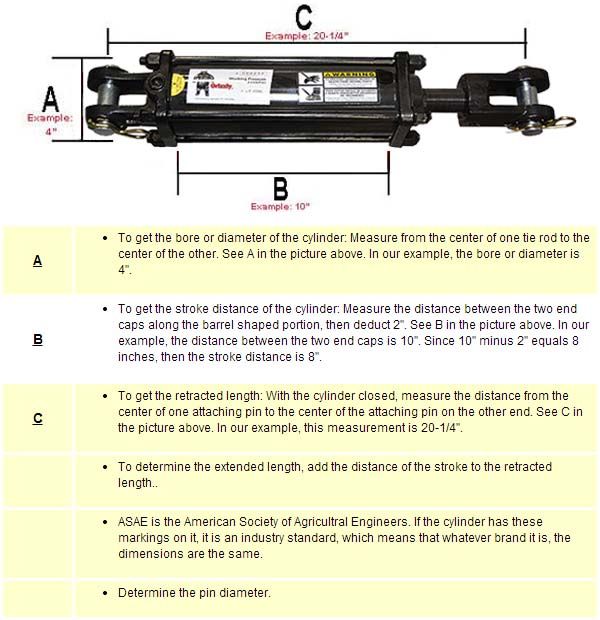

How To Identify A Cylinder By Measuring

How To Identify A Cylinder By Measuring
