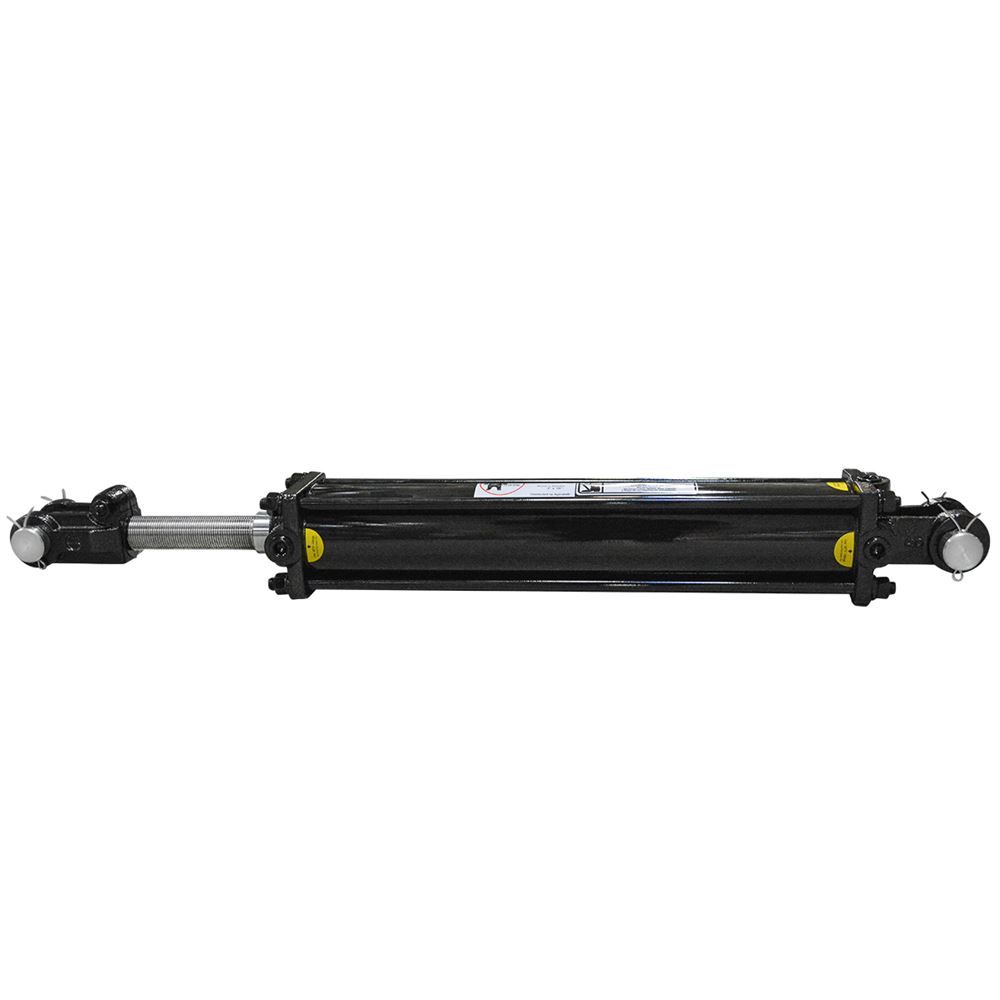

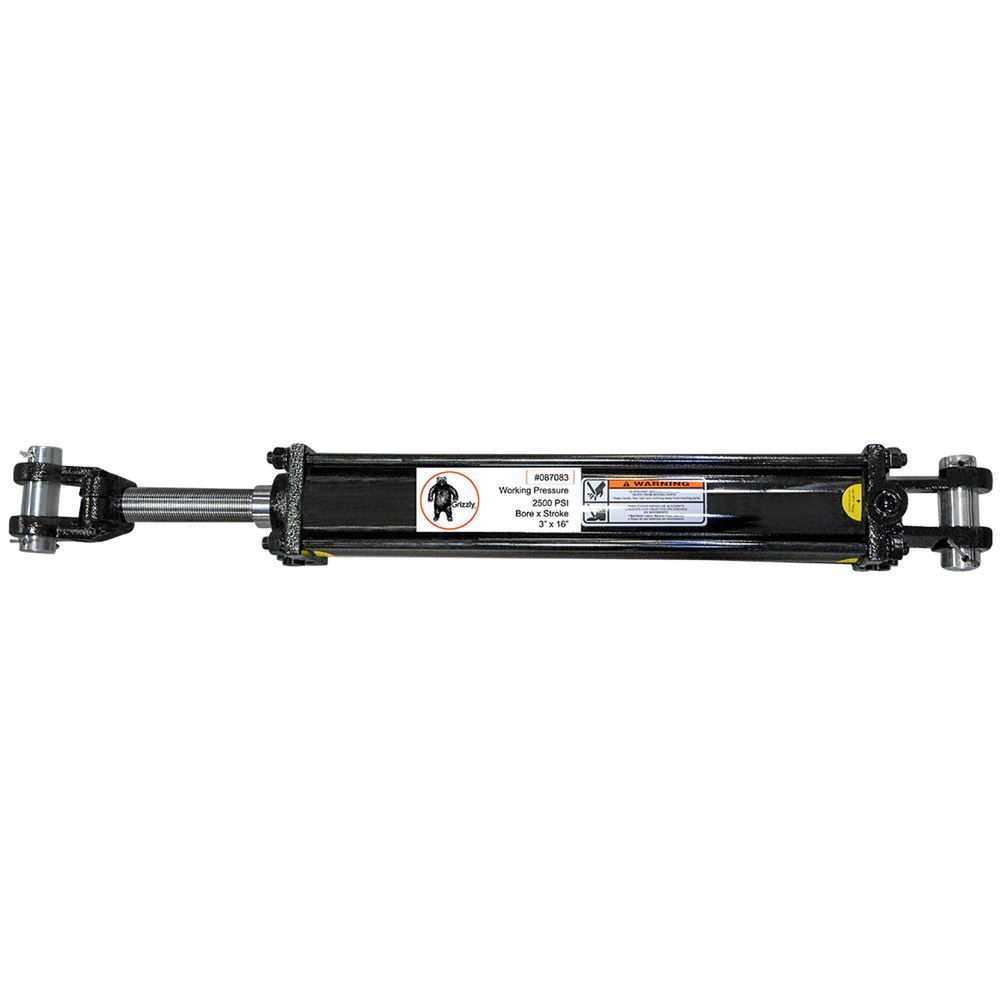

Grizzly® Hydraulic Cylinder, 3 In. Bore, 16 In. Stroke
Grizzly® Hydraulic Cylinder 3 x 16 ASAE
Grizzly® Hydraulic Cylinder, 3 In. Bore, 16 In. Stroke

Grizzly® Hydraulic Cylinder 3 x 16 ASAE

Item #87083
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 3 in. bore and a 16 in. stroke. The retracted length is 31-1/2 in. and the rod diameter measures 1-1/2 in. Use this hydraulic cylinder for a working pressure of 2500 PSI. MPN-T25301612ASAE
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high-pressure failure. This cylinder features a 3" inch bore with a 16" inch stroke and has a 1" inch pin.

Specifications:

  • Grizzly® Brand
  • Model number: T25301612ASAE
  • Bore: 3"
  • Stroke: 16"
  • Rod Diameter: 1-1/2"
  • Retracted Length: 31-1/2"
  • Extended Length: 47-1/2"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 17,671
  • Pull lbs.: 13,254
  • C95-3016
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
