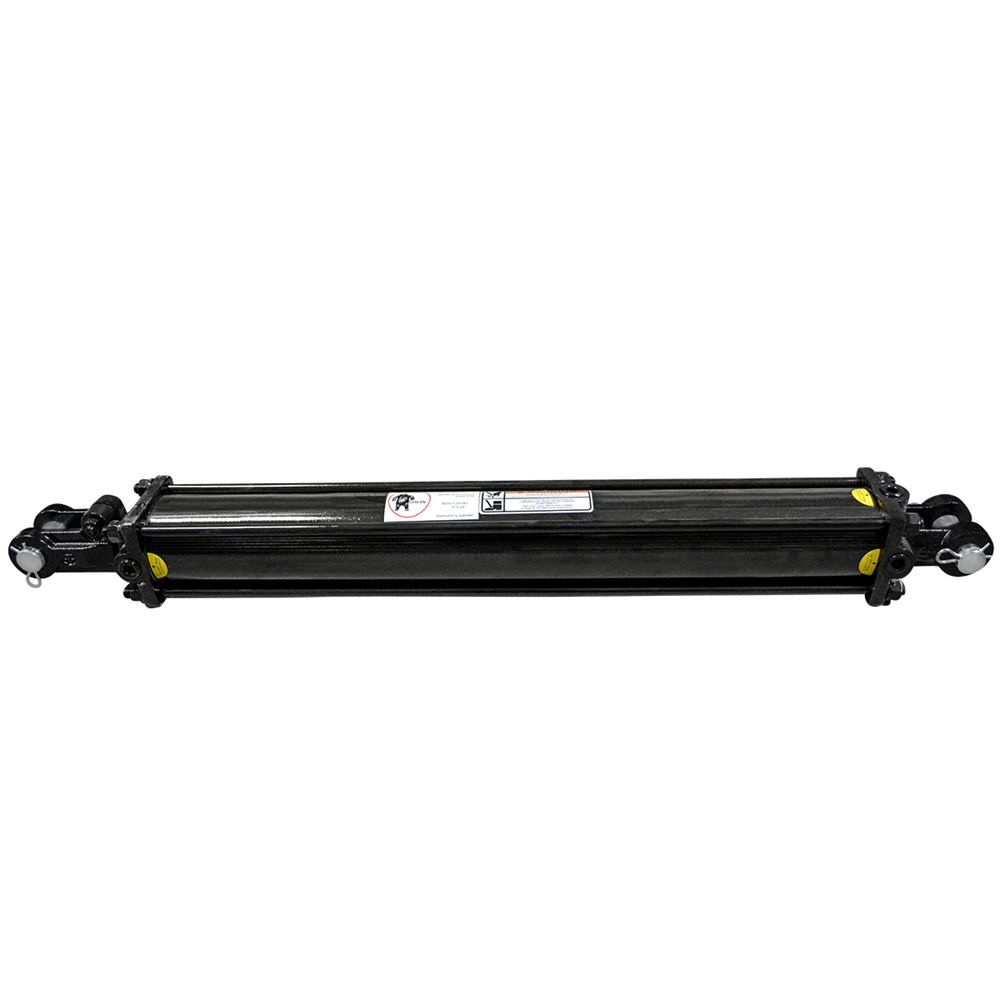

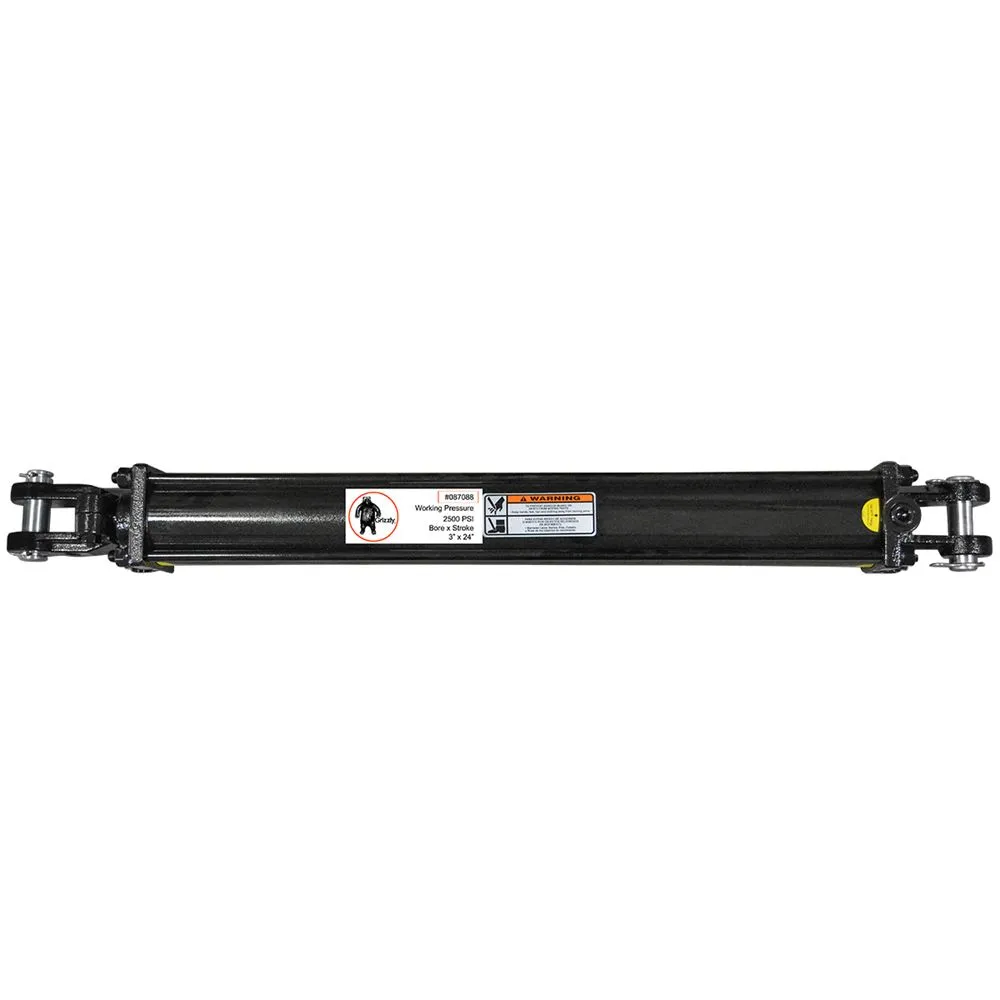

Grizzly® Hydraulic Cylinder, 3 In. Bore, 24 In. Stroke
Grizzly® Hydraulic Cylinder 3 x 24
Grizzly® Hydraulic Cylinder, 3 In. Bore, 24 In. Stroke

Grizzly® Hydraulic Cylinder 3 x 24

Item #87088
Write a Review
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance. With a 3 in. bore and a 24 in. stroke, this cylinder has a retracted length of 34-1/4 in.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

This Grizzly® hydraulic cylinder has a 3" inch bore and a 24" stroke with a retraced length of 34-1/4 inches and an extended length of 58-1/4 inches. Grizzly cylinders are contructed from high strength steel and zinc plated for the tough conditions on the job or farm.

    Specifications:
  • Grizzly® Brand
  • Bore: 3"
  • Stroke: 24"
  • Rod Diameter: 1-1/2"
  • Retracted Length: 34-1/4"
  • Extended Length: 58-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI:
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
