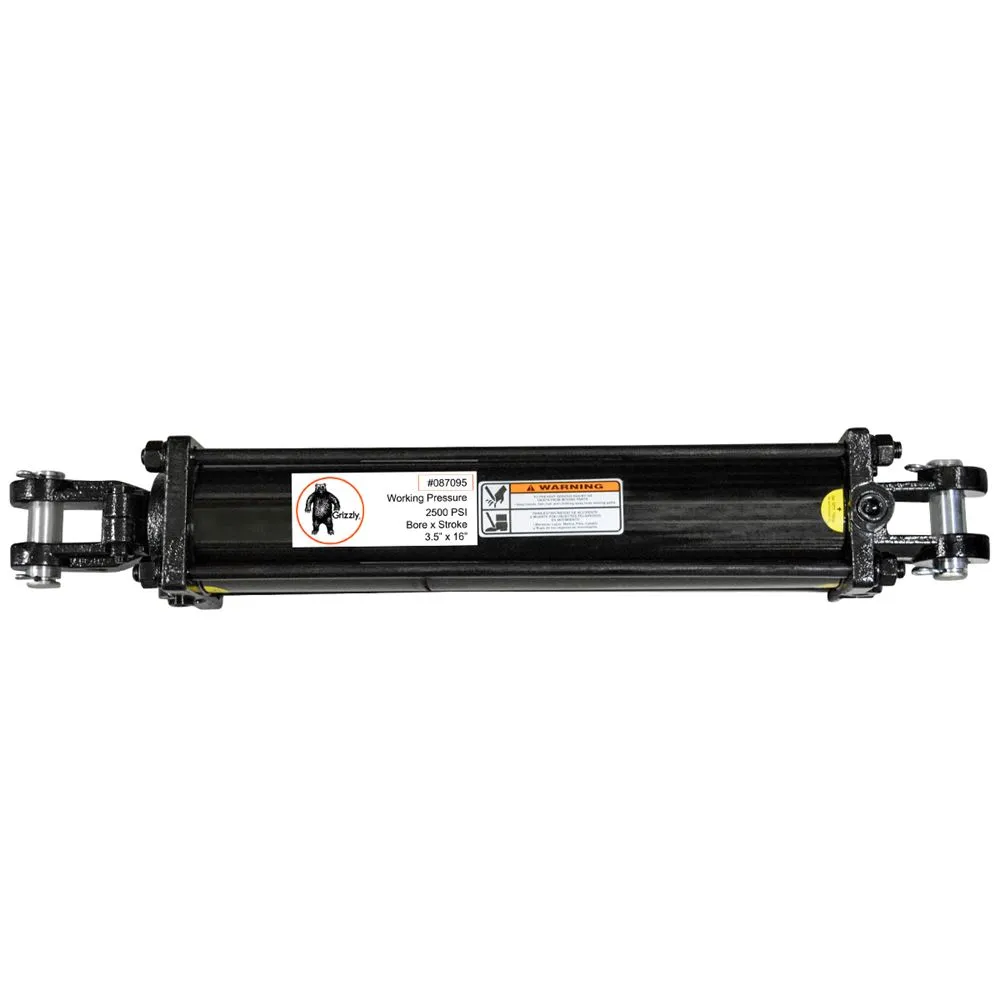

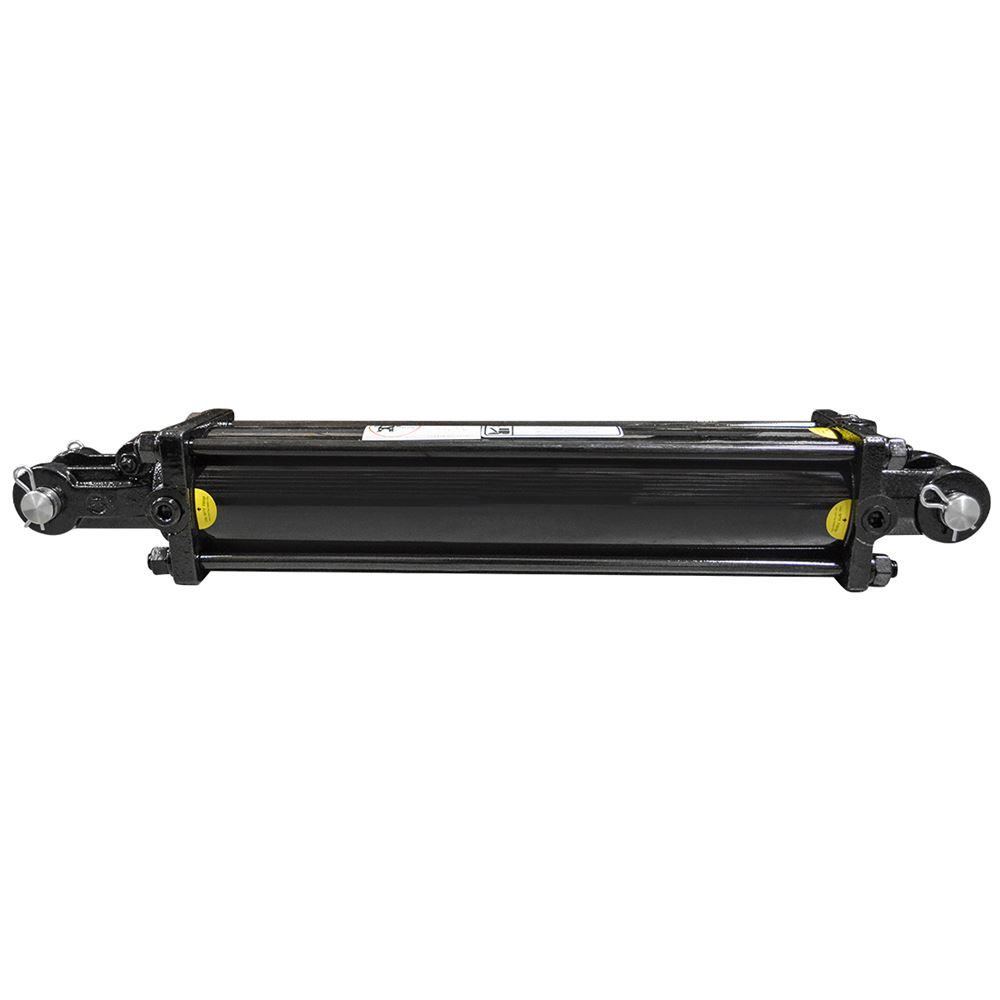

Grizzly® Hydraulic Cylinder, 3-1/2 In. Bore, 16 In. Stroke
Grizzly® Hydraulic Cylinder 3-1/2 x 16
Grizzly® Hydraulic Cylinder, 3-1/2 In. Bore, 16 In. Stroke

Grizzly® Hydraulic Cylinder 3-1/2 x 16

Item #87095
Write a Review
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high-quality performance. With a 3-1/2 in. bore and a 16 in. stroke, this cylinder has a retracted length of 26-1/4 in.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Grizzly® hydraulic cylinders are constructed of high strength steel and include tie rods to prevent high pressure failure. This cylinder features a 3-1/2" inch bore with a 16" inch stroke and has a 1" inch pin.

Specifications:

  • Grizzly® Brand
  • Model number: T25351610
  • To fit KMC Speed Wheel Cultivator
  • Bore: 3-1/2"
  • Stroke: 16"
  • Rod Diameter: 1-1/4"
  • Retracted Length: 26-1/4"
  • Extended Length: 42-1/4"
  • Pin Diameter: 1"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 24,053
  • Pull lbs.: 20,985
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
