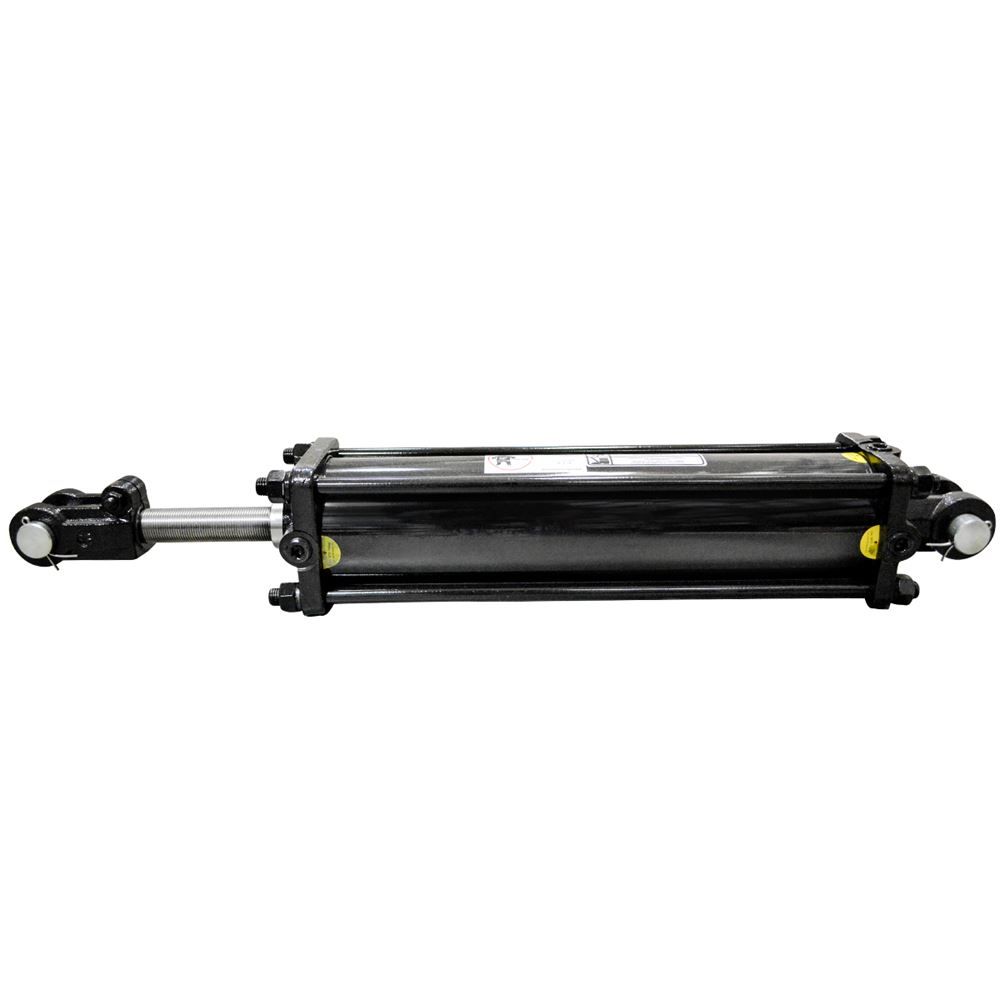

Grizzly® Hydraulic Cylinder, 4 In. Bore, 16 In. Stroke
Grizzly® Hydraulic Cylinder 4 x 16
Grizzly® Hydraulic Cylinder, 4 In. Bore, 16 In. Stroke

Grizzly® Hydraulic Cylinder 4 x 16

Item #87104
Write a Review
Ideal for agricultural applications, this Grizzly® hydraulic cylinder has a 4 in. bore and an 16 in. stroke. The retracted length is 31-1/2 in. and the rod diameter measures 1-3/4 in. Use this hydraulic cylinder for a working pressure of 2500 PSI. MPN-T25401614ASAE
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Replace hydraulic cylinders to keep your equipment running. This 4" x 16" cylinder has a rod diameter of 1-3/4" and is constructed of high strength steel and includes tie rods to prevent high pressure failure.

Specifications:

  • Grizzly® Brand
  • Model number: T25401614ASAE
  • Bore: 4"
  • Stroke: 16"
  • Rod Diameter: 1-3/4"
  • UNF Thread: 1 1/4-12"
  • Retracted Length: 31-1/2"
  • Extended Length: 47-1/2"
  • Pin Diameter: 1-1/4"
  • Port Size: 1/2" NPTF
  • PSI: 2500
  • Push lbs.: 31,416
  • Pull lbs.: 25,403
  • C95-4016
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
