Grizzly® Rod, 1-1/4 In. x 36 In. Stroke
Grizzly® Rod, 1-1/4" x 36" Stroke
Grizzly® Rod, 1-1/4 x 36 Stroke

Grizzly® Rod, 1-1/4" x 36" Stroke

Item #102156
Write a Review
A Grizzly® replacement rod for use with Grizzly® cylinders. This rod has a diameter measuring 1-1/4 inches with a stroke measuring 36 inches.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

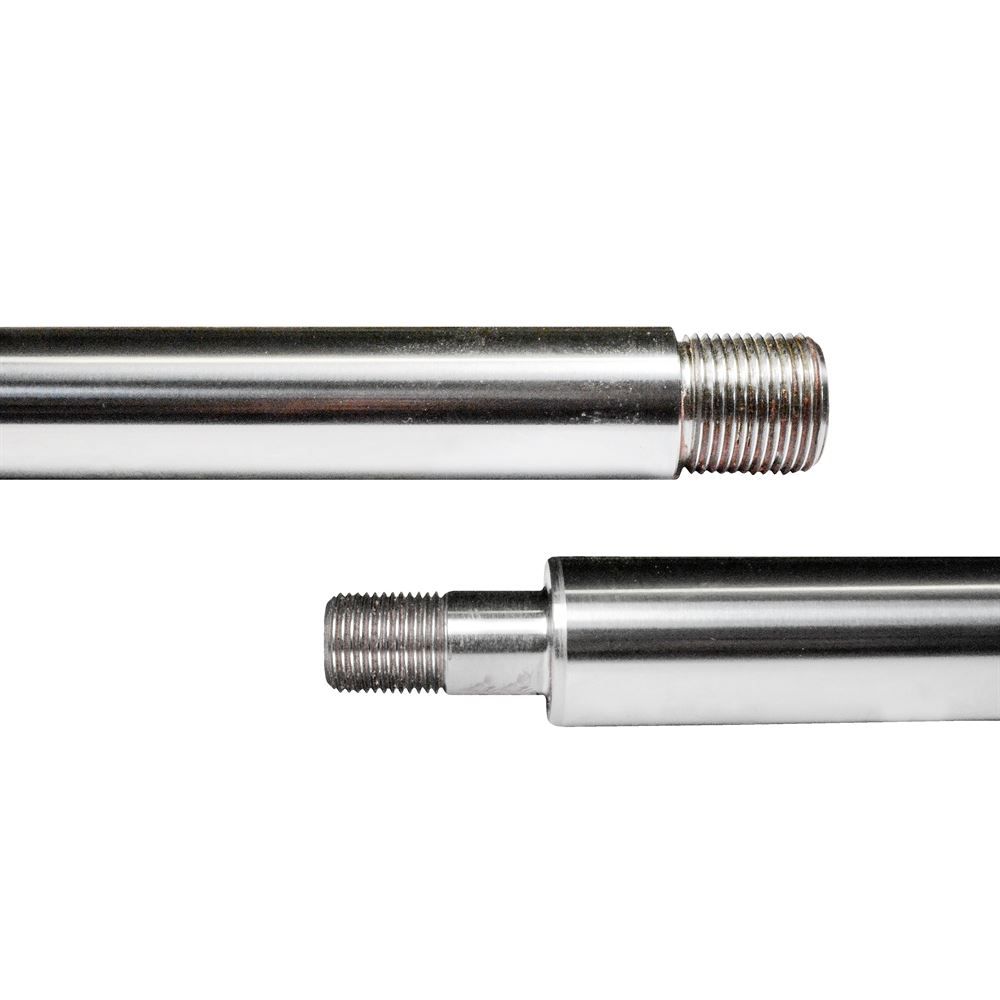

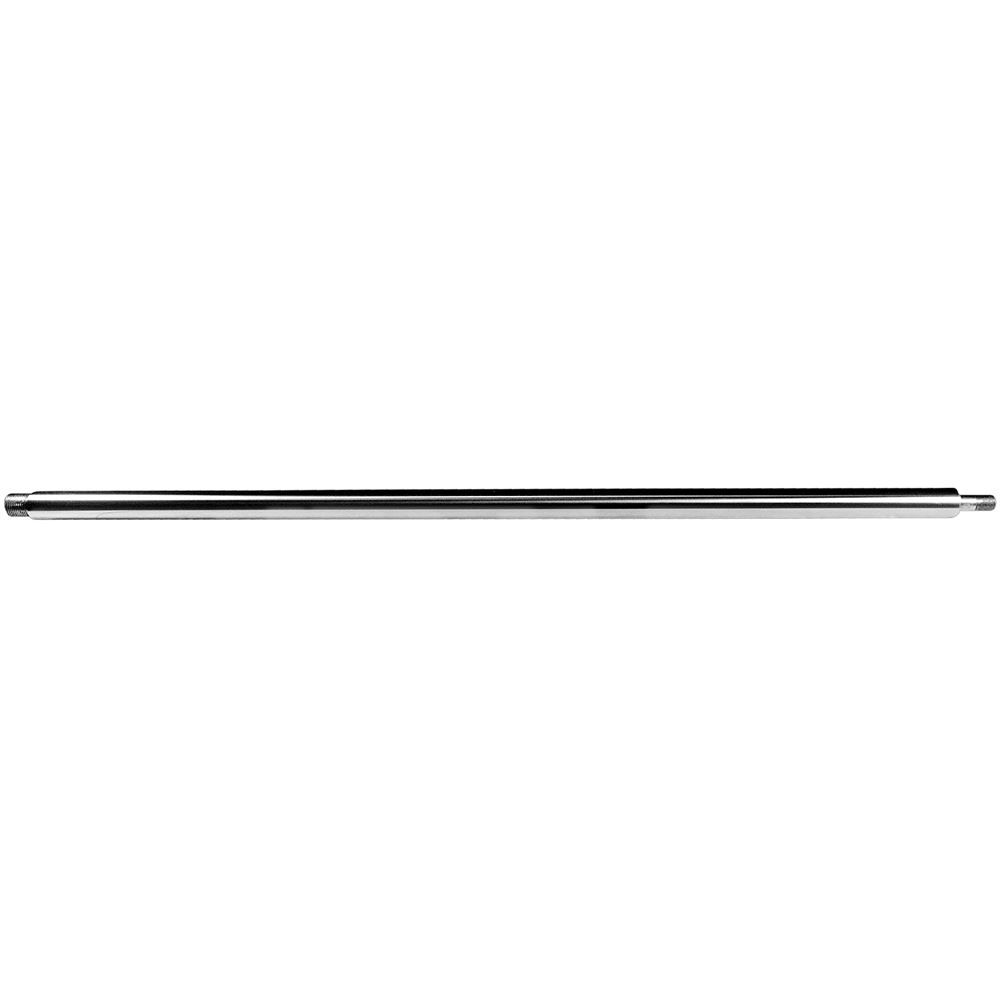

This Grizzly® rod is constructed from 1045 high strength steel and it is chrome plated. This cylinder rod measures 1-1/4 inches in diameter with a stroke measuring 36 inches.

Specifications

  • Cylinder Rod
  • Part Number: T25XX3610-ROD
  • Rod diameter: 1-1/4 inches (Smooth Part only)
  • Stroke length: 36 inches
  • Total Rod Length is 40-7/8 inches
  • Piston end thread size is 3/4 inch 16 UNF
  • Clevis end thread size is 1-1/8 inch 12 UNF
  • Large thread length is 1-1/8 inches
  • Construction: 1045 high strength steel
  • Chrome plated
  • China
