Grw1 (27.75ol) 1-3/8-6 Spl x 15/16 Smooth with Keyway
PTO Shaft, Series 1, OL 27.75" 1-3/8" 6 Spline x 15/16" Smooth

PTO Shaft, Series 1, OL 27.75" 1-3/8" 6 Spline x 15/16" Smooth

Item #102264
Write a Review
Transfer high amounts of energy between large machinery with a PTO shaft. This series 1 PTO shaft assembly with tractor end measuring 1-3/8 inches 6 spline and implement end 15/16 smooth with keyway & set screw. This PTO shaft can retract or extend to fit different applications.
100% Satisfaction Guaranteed
Product Overview

This series 1 PTO shaft operates in a rotational motion, with a PTO horsepower of 16 at 540 RPM and a horsepower of 24 at 1000 RPM. There is a tractor end is 1-3/8 in. 6 spline. The implement end is 15/16 in. smooth with keyway & set screw. This PTO shaft has a retracted end measuring 27.75 inches and an extended end measuring 34.2 inches. As an important safety precaution, be sure to shield any rotating parts and do not wear loose accessories, which could become entangled and pulled into the machine.

Specifications
  • PTO Shaft
  • Series 1
  • Extended length: 34.2 in.
  • Retracted length: 27.75 in.
  • Tractor End: 1-3/8 in. 6 spline

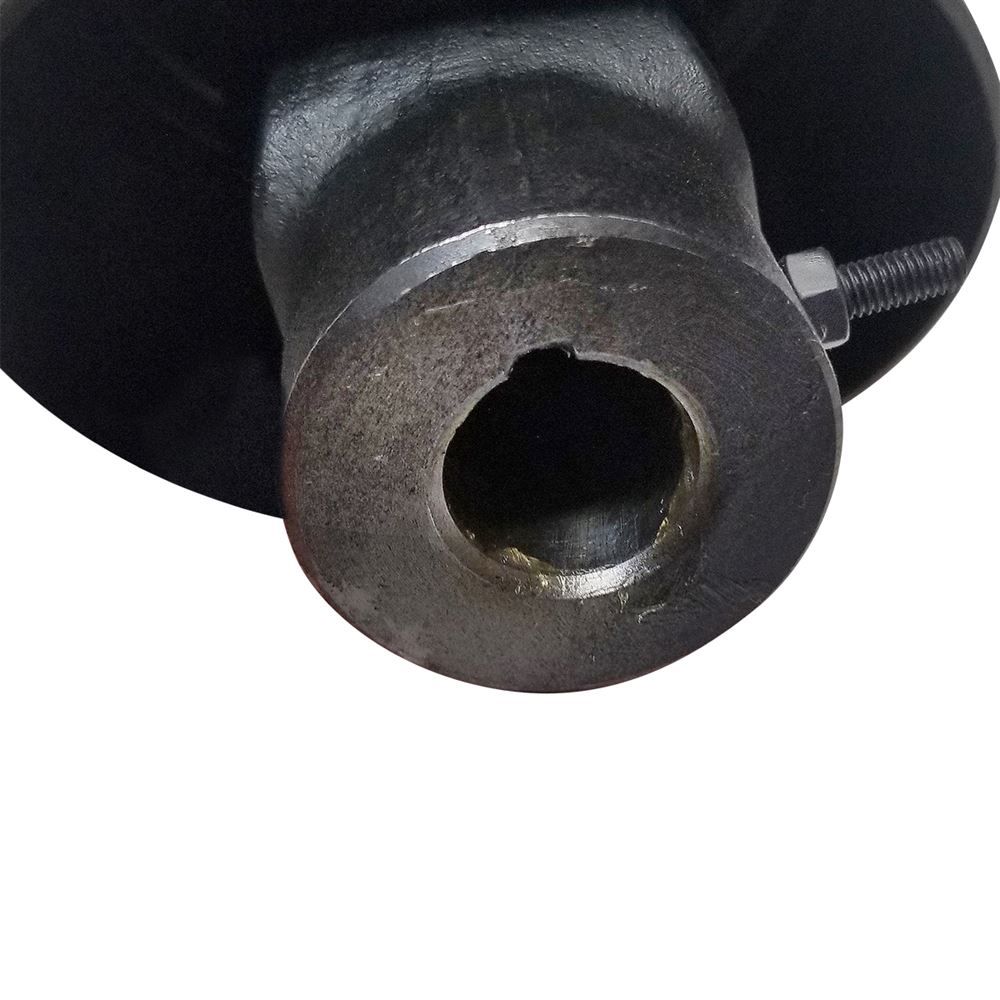

  • Implement end: 15/16 in. smooth end with keyway & set screw
  • 16 HP at 540 RPM
  • 24 HP at 1000 RPM
