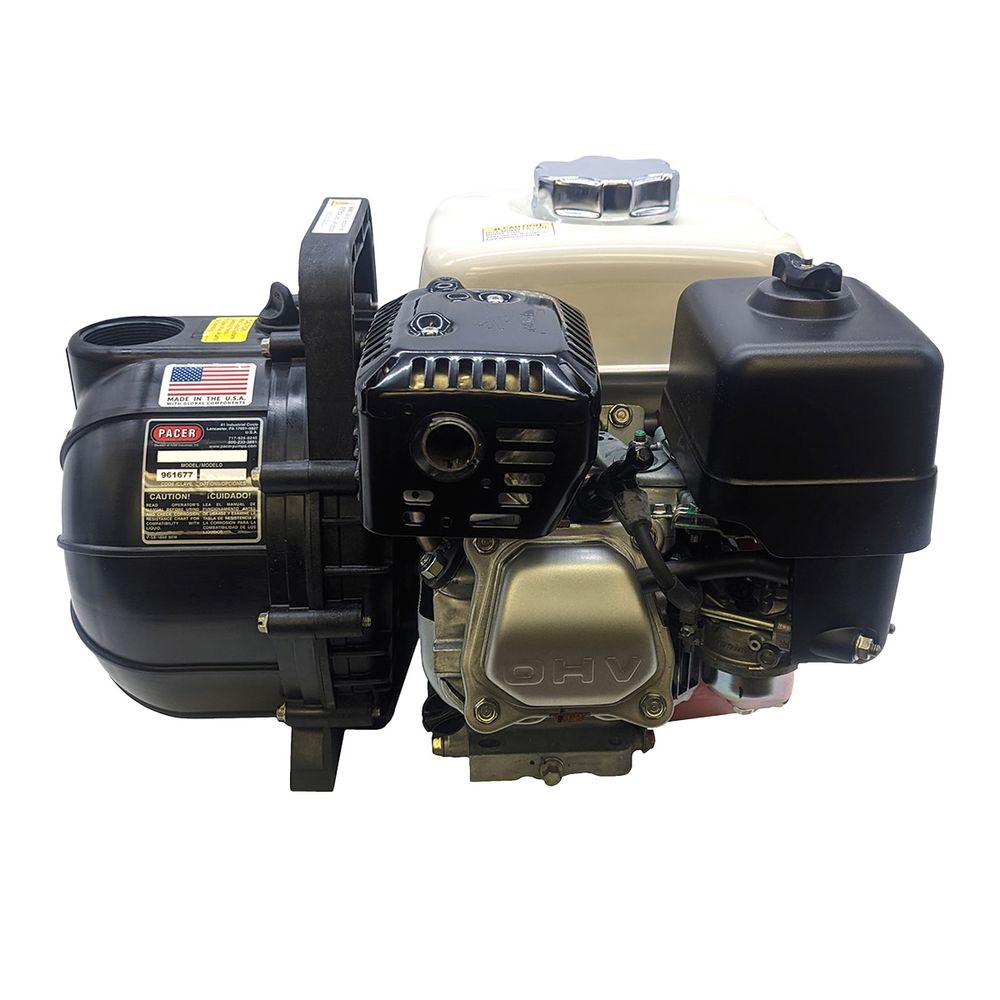

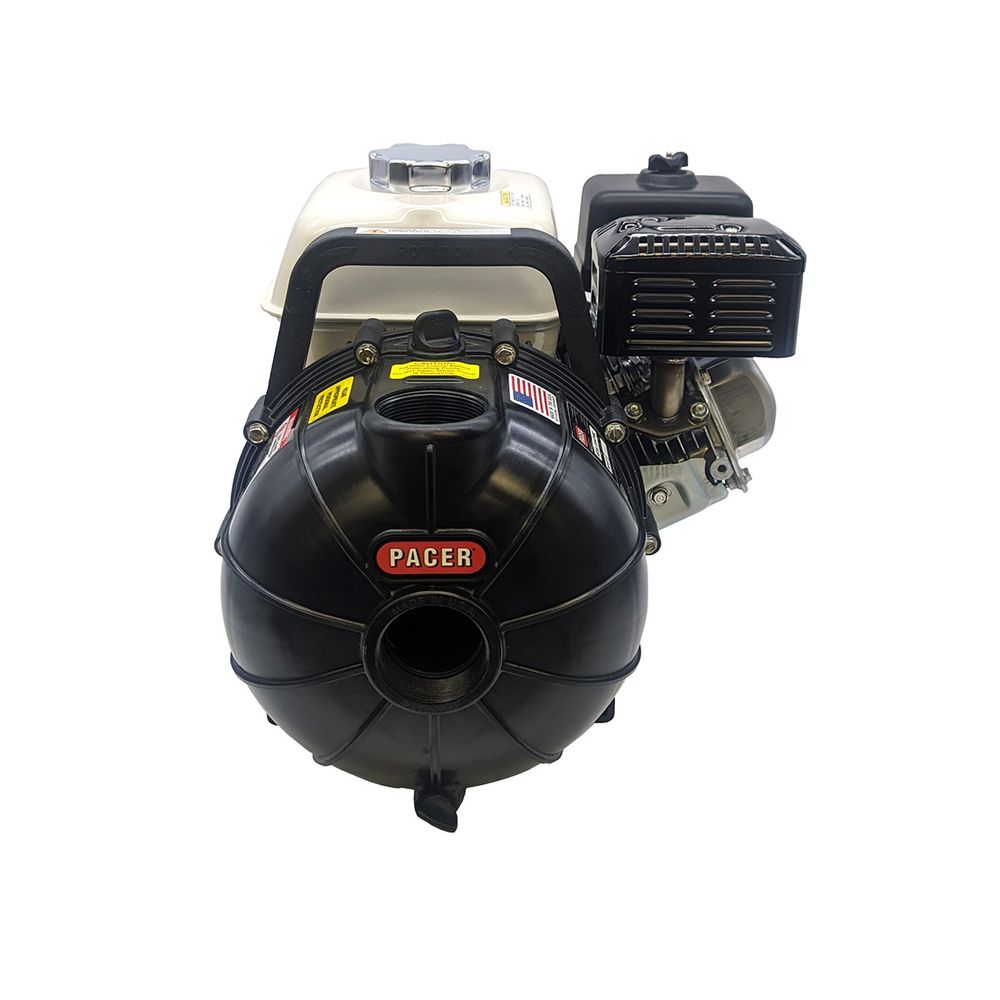

5.5 HP 2'' Honda Pacer Pump

This equipment features a powerful 5.5 HP Honda engine with an overhead valve design. This tough thermoplastic pump is self-priming, and it flows to 200 GPM. The working pressure extends to 52 PSI, and it has a suction lift of 25 feet. Use this powerful centrifugal pump to transfer water, chemicals, and liquid nitrogen.

Pacer transfer pumps are made to last. To ensure that they withstand the elements, the volute, the pump housing, and the impeller are made using corrosion-resistant glass reinforced polyester. The external fasteners are built using plated steel. For additional strength, both the shaft seal and the internal fasteners are made of stainless steel. Pacer added a carbon and ceramic face to the shaft seal to extend the life of its shaft seal. They also use EPDM elastomer, which ensures that the product will be able to withstand tough farming chemicals.

This centrifugal pump has a 2" inlet and outlet, a built-in check valve, and it flows to 200 GPM. The engine is built by Honda, which has an excellent reputation for quality. With 5.5 HP, this tough centrifugal pump will transfer liquids quickly. Other features include a cast iron cylinder sleeve, a low oil shut off, an electronic ignition, and a dual element air cleaner.

Specifications

• 5.5 HP Honda engine
• Flows to 200 GPM
• Built-in check valve
• 2" female port
• Self-priming
• Corrosion resistant
• EPDM elastomer
• Working pressure up to 52 PSI
• Suction lift to 25 feet
• Plated steel external fasteners
• Stainless steel internal fasteners
• For replacement impeller, use #12714
• For replacement seal kit, use #12743
• Important to use 8 to 10 wraps of teflon tape on fittings as the threads are deeper than common pipe threads
