10 HP Std Gerotor Motor 12 GPM

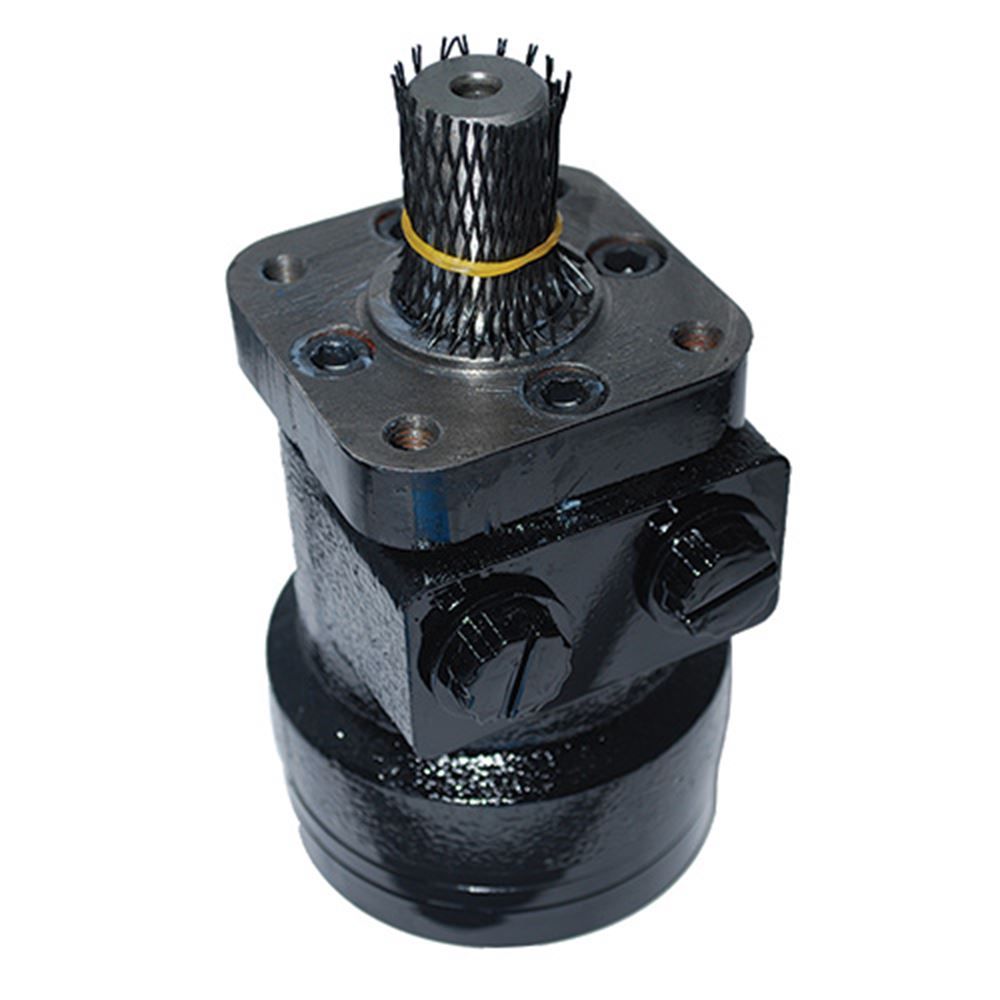

Hydroworks™ 10 HP Std Gerotor Motor 10 GPM

Item #84733
Write a Review
These BMPH series, shaft distribution flow, hydraulic motors are compact, highly efficient, low speed-high torque designs that can be used in either a parallel or series system.
100% Satisfaction Guaranteed
Product Overview

These BMPH series, shaft distribution flow, hydraulic motor are a compact, highly efficient, low speed-high torque design that can be used in either a parallel or series system.

Specifications

  • Maximum flow rate is 10 GPM with continuous operation
  • Maximum speed at continuous operation is 1050 RPM
  • 1.0-inch shaft diameter
  • .28 inch gerotor width
  • Port size 1/2-14 NPTF
  • 12.1 pounds
  • Instantly reversible by reversing the flow
  • 4 bolt flange mounting type
  • High torque, low speed with gerotor
  • Cross-over to many popular models in the market
