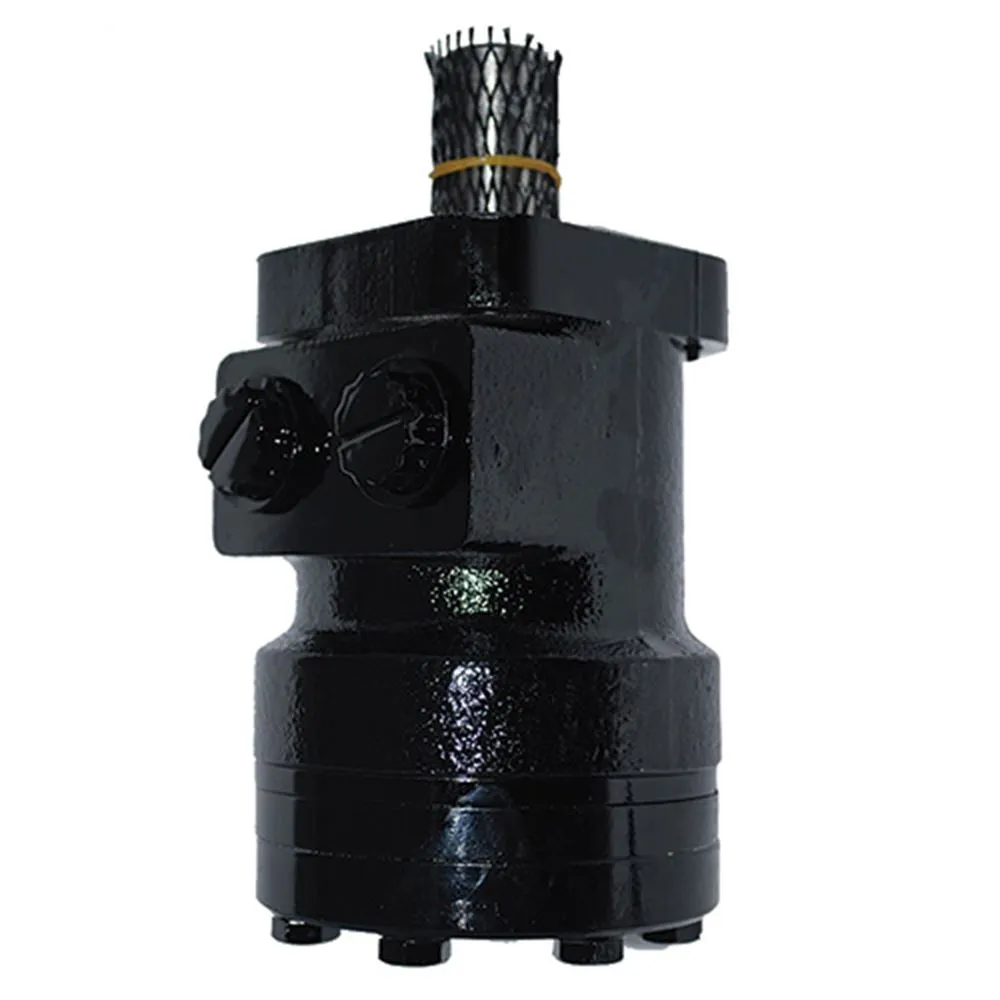

Hydroworks™ 12.6 HP Std Gerotor Motor 15.8 GPM

These BMPH series, shaft distribution flow, hydraulic motor are a compact, highly efficient, low speed-high torque design that can be used in either a parallel or series system
Availability:
#84734
Product Overview

These BMPH series, shaft distribution flow, hydraulic motor are a compact, highly efficient, low speed-high torque design that can be used in either a parallel or series system

Specifications

  • Maximum flow rate is 15.8 GPM with continuous operation
  • Maximum speed at continuous operation is 740 RPM
  • 1800 PSI Maximum Continuous Pressure
  • 1.0 inch shaft diameter
  • .41 inch gerotor width
  • Port size 1/2-14 NPTF
  • 12.54 pounds
  • Instantly reversible by reversing the flow
  • 4 bolt flange mounting type
  • High torque, low speed with gerotor
  • Cross-over to many popular models in the market
  • 4.5 Displacement
  • 1,291 Maximum Torque in Pounds
  • Designed for medium duty application
  • MFG Number: 82347386
