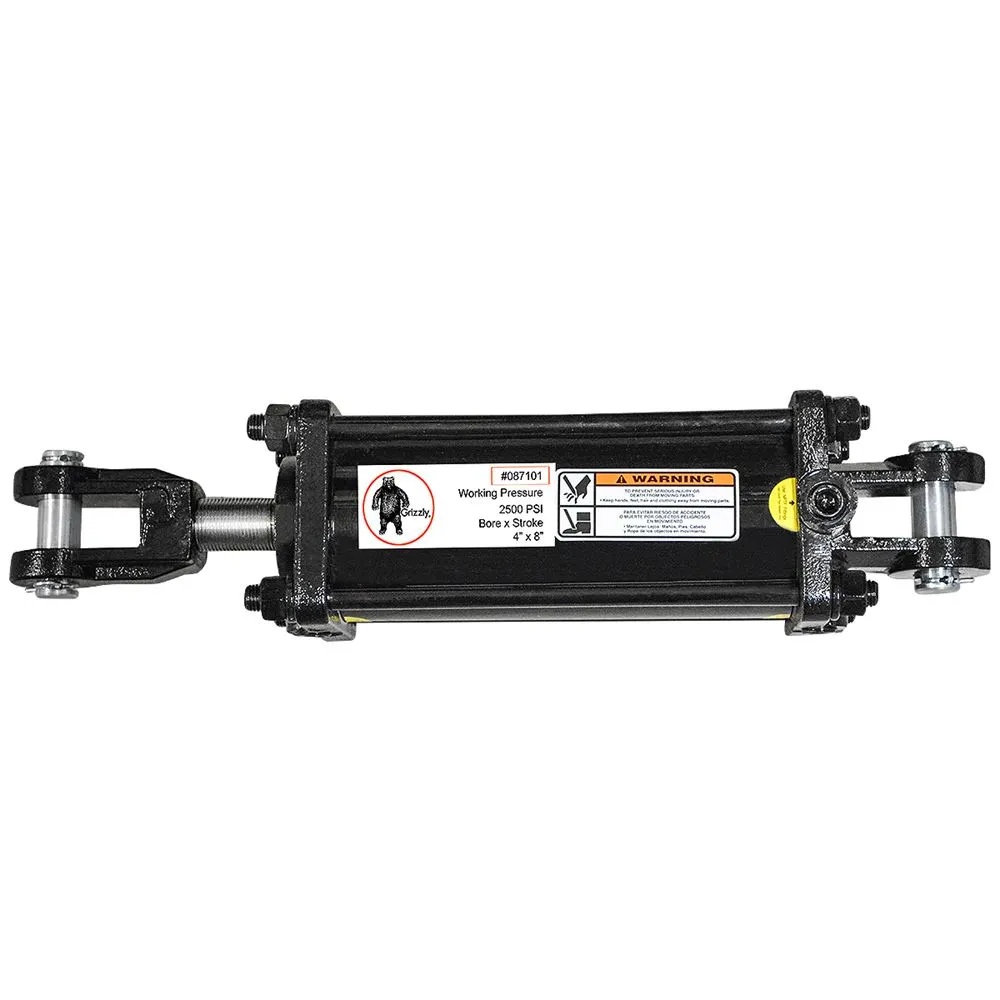

Grizzly® Hydraulic Cylinder 4 x 8
Item #87101
Grizzly® hydraulic cylinders are ideal for agricultural applications. With a working pressure of 2500 PSI, this hydraulic cylinder is constructed for high quality performance. With a 4 in. bore and a 8 in. stroke, this cylinder has a retracted length of 20-1/4 in. MPN-T25400810ASAE
Product Overview
This Grizzly® hydraulic cylinder has 4 inch bore and a 8" stroke with a retracted length of 20-1/4 inches and an extended length of 28-1/4 inches. Grizzly cylinders are constructed from high strength steel and zinc plated for the tough conditions on the job or farm.
Specifications
- Grizzly® Brand
- Model number: T25400810ASAE
- Bore: 4"
- Stroke: 8"
- Rod Diameter: 1-1/4"
- Retracted Length: 20-1/4"
- Extended Length: 28-1/4"
- Pin Diameter: 1"
- Port Size: 1/2" NPTF
- PSI: 2,500
- Push lbs.: 31,416
- Pull lbs.: 28,348
- C95-4008
- Recommended operating temperature range: -30 to 105°C (-22 to 221°F)
- To fit: KBH Liquid Applicator & many other agricultural implements
We carry plenty of hydraulic cylinders if this is not what you are looking for
