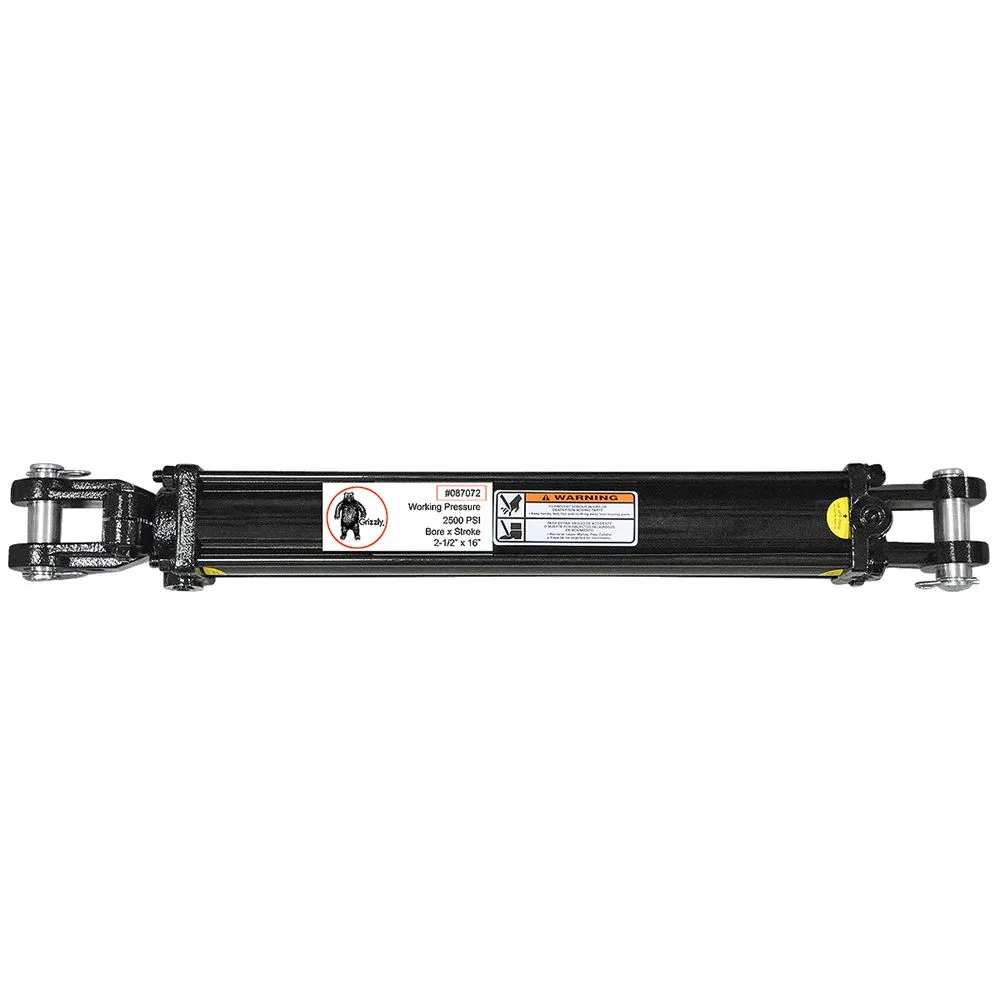

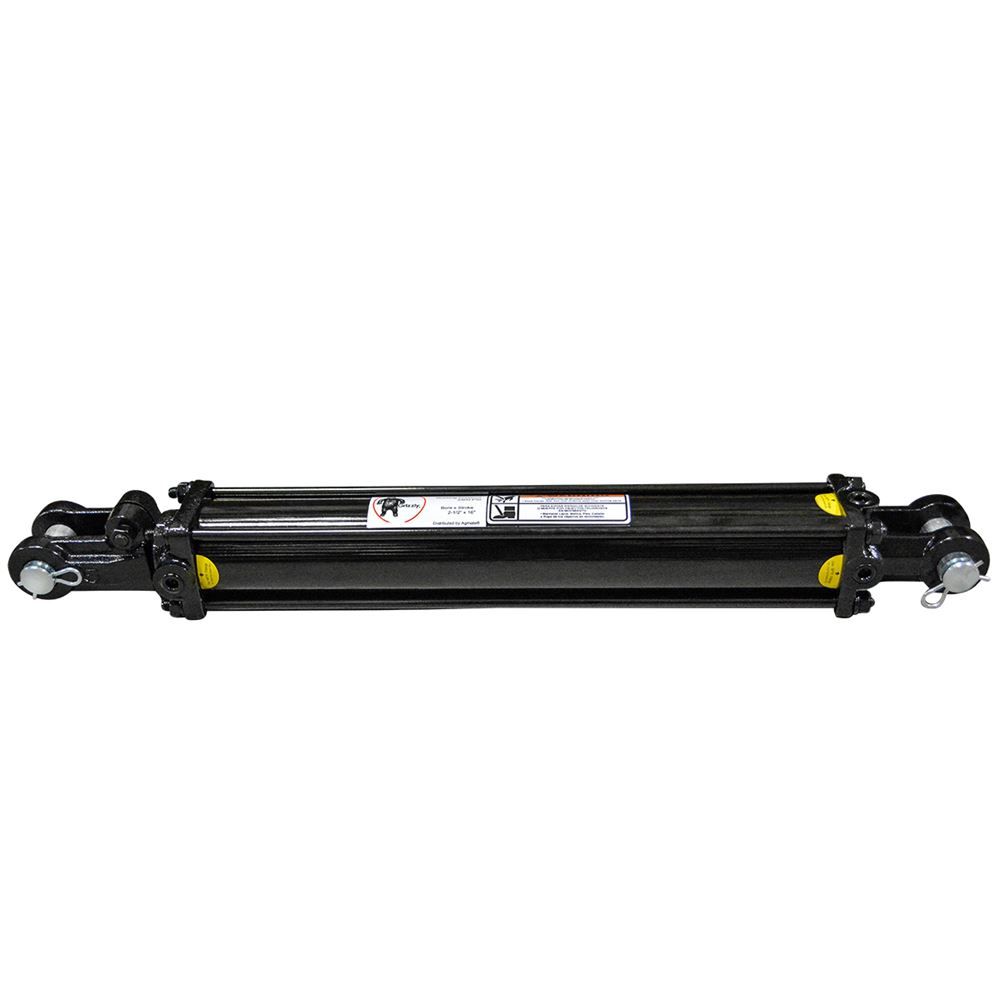

Grizzly® Hydraulic Cylinder, 2-1/2 In. Bore, 16 In. Stroke
Grizzly® Hydraulic Cylinder 2-1/2 x 16
Grizzly® Hyd. Cylinder, 2-1/2 In. Bore, 16 In. Stroke
Grizzly® Hyd. Cylinder, 2-1/2 In. Bore, 16 In. Stroke

Grizzly® Hydraulic Cylinder 2-1/2 x 16

Item #87072
Write a Review
This hydraulic cylinder, created by Grizzly ® , can operate with many different pieces of machinery. It has a 2-1/2 in. bore and 16 in. stroke and includes a tie rod with a working pressure of 2500 PSI. This cylinder also has a 1 in. pin and has a 1-1/8 in. diameter rod.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

Hydraulic cylinders are needed throughout various agricultural equipment. Grizzly ® hydraulic cylinders are constructed of high-strength steel and include tie rods to prevent high-pressure failure. It also has dual NPT ports for greater flexibility and a piston seal. The clevis bolts are grade 5 for extra durability, 'O' rings, and a nitrile rubber wiper seal.

This size cylinder has a 16 inches stroke and 2-1/2 inches bore. It is 1-1/8 inch in diameter and has a retracted length of 26-1/4 inches. It also operates at 2500 PSI working pressure.

Specifications

  • Grizzly® Brand
  • Model number: T25251609
  • Bore: 2-1/2"
  • Stroke: 16"
  • Rod Diameter: 1-1/8"
  • Retracted Length: 26-1/4"
  • Extended Length: 42-1/4"
  • Pin Diameter: 1"
  • Port Size: 3/8" NPTF
  • PSI: 2500
  • Push lbs.: 12,272
  • Pull lbs.: 9,787
  • Recommended operating temperature range: -30 to 105°C (-22 to 221°F)

We carry plenty of hydraulic cylinders and other repair kits, clevis rods, hydraulic parts and pieces.
