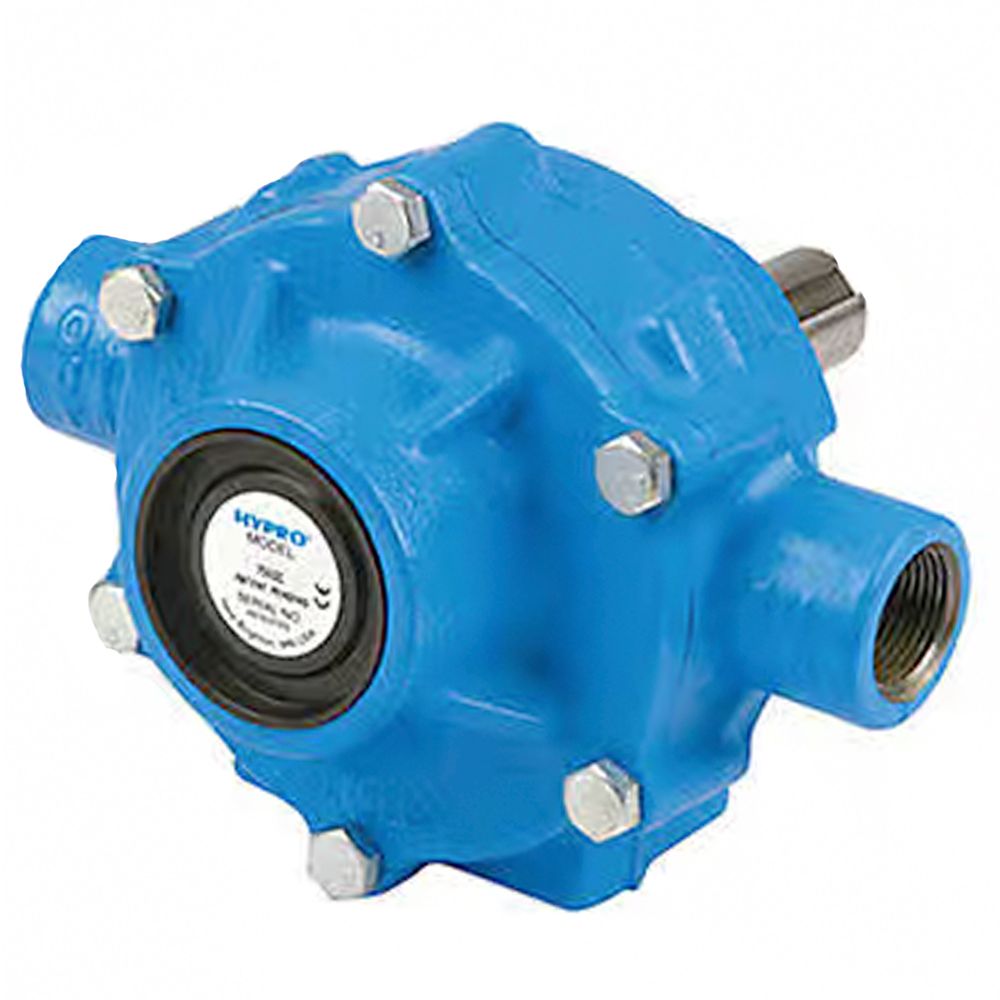

HYPRO 8 ROLLER PUMP-REVERSE ROTATION

Hypro roller pumps are designed for agricultural and industrial spraying and transfer of a variety of fluids. These include insecticides, herbicides, emulsives, aromatic solvents, liquid fertilizers and many other liquids.

Construction features include a cast-iron, Ni-Resist or the SilverCast™ body, 416 stainless steel shaft, sealed factory-lubricated ball bearings, cartridge-type lip seals of Viton, Buna-N or leather, and versatile Super Rollers. (Super Rollers feature the life of polypropylene and the chemical resistance of nylon.)

Rotation for all models is counterclockwise for easy tractor PTO drive, except models 4001 and 4101 which are clockwise. Pumps are available in reverse rotation.

Specifications

• Performance Information
• Max. flow: 12 gpm/45.4 lpm at 540 rpm
• Max. flow: 22.5 gpm/85.2 lpm at 1000 rpm
• Max. pressure: continuous 100 psi/6.9 bar
• Max. pressure: intermittent 300 psi/20.7 bar
• Max. rated speed: 1000 rpm
• Max. fluid temperature: 140°F/60°C
• Other Attributes
• Rollers: Super Rollers standard (Poly, Teflon and Buna-N available)
• Housing: Cast Iron, Ni-Resist or Silvercast
• Port sizes: 3/4" NPT
• Shaft: 15/16" solid
• Shaft rotation: CW
• 1" hose barb inlet fitting for 1000 rpm operation
• Shaft Seals: Viton standard (Buna-N available)
• Available PTO adapters
• Rotor: Super Rotor Standard. (Cast Iron, Ni-Resist and Silvercast available.)
• Recommended PTO torque arm kit 3430-0540 (ASC #22382)
• Weight: 13 lbs./5.89 kg
• For repair kit use item 58620
• For 6-spline coupler use item 25131
• For 21-spline coupler use item 25132
