Implement Wheel

Implement Wheel, 16 In. x 8 In., 6 Bolt

Item #40943
Write a Review

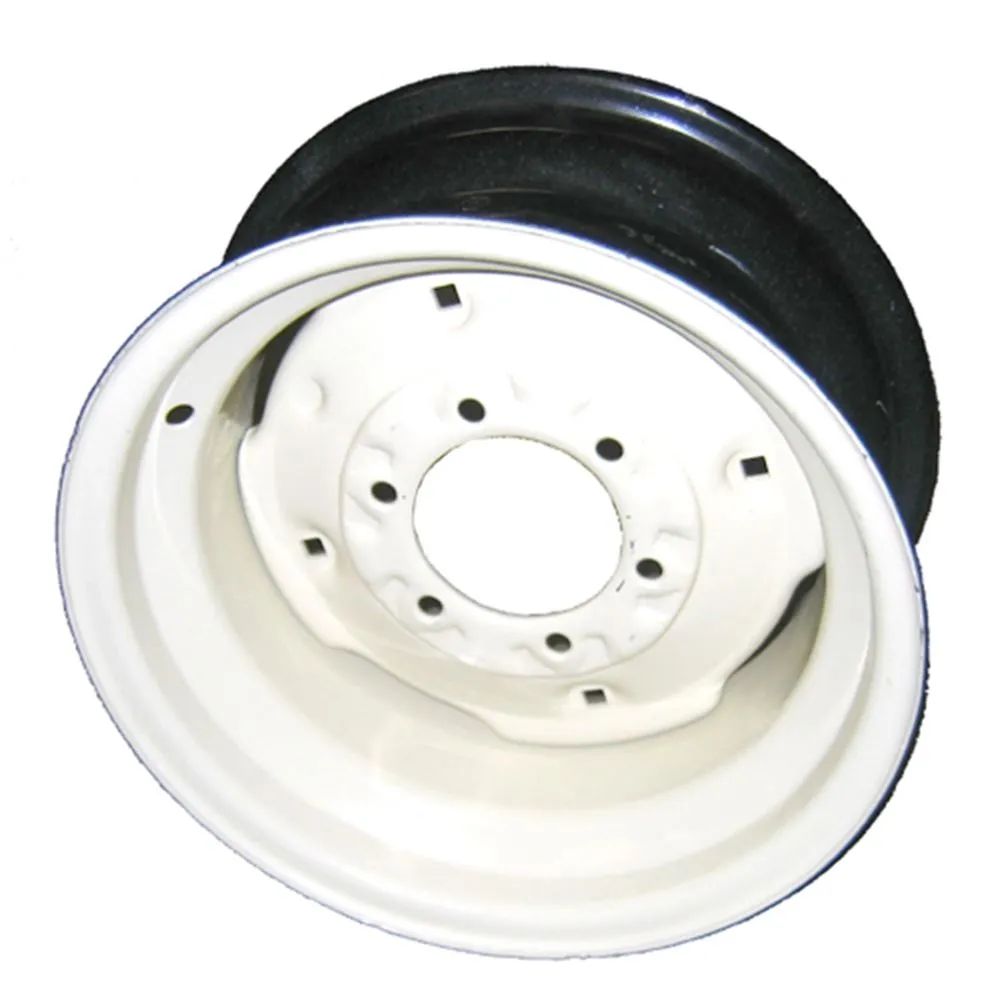

Replace rusted out implement wheels with this 16 inch diameter wheel. This wheel is heavy-duty, 8 inches wide and finished with a light beige coat of paint for rust protection. With 6 lug holes, the implement wheel has a 6 inch bolt pattern and a 4-5/8 inch center hole.
In stores only. Find a store near you
100% Satisfaction Guaranteed
Product Overview

This implement wheel is constructed of heavy duty steel. The wheel diameter is 16 inches and 8 inches wide. Implements that have hubs with 6 bolts or lugs on 6 inch spacing would accept these wheels. The wheels are painted for additional protection from the elements.


Specifications

  • Implement wheel
  • Diameter: 16 in.
  • Width: 8 in.
  • Center hole: 4-5/8 in.
  • Lug holes: 6
  • Bolt pattern: 6 in. center to center
  • Painted finish for rust resistance
  • Tires to fit:
    • 16577 Implement Tire, 9.5L-15SL, Max Load 2420 Lbs.
    • 16579 Implement Tire, 11L-15SL, Max Load 2540 Lbs.
    • 50555 12.5L-15SL 10 Ply Implement Tire
