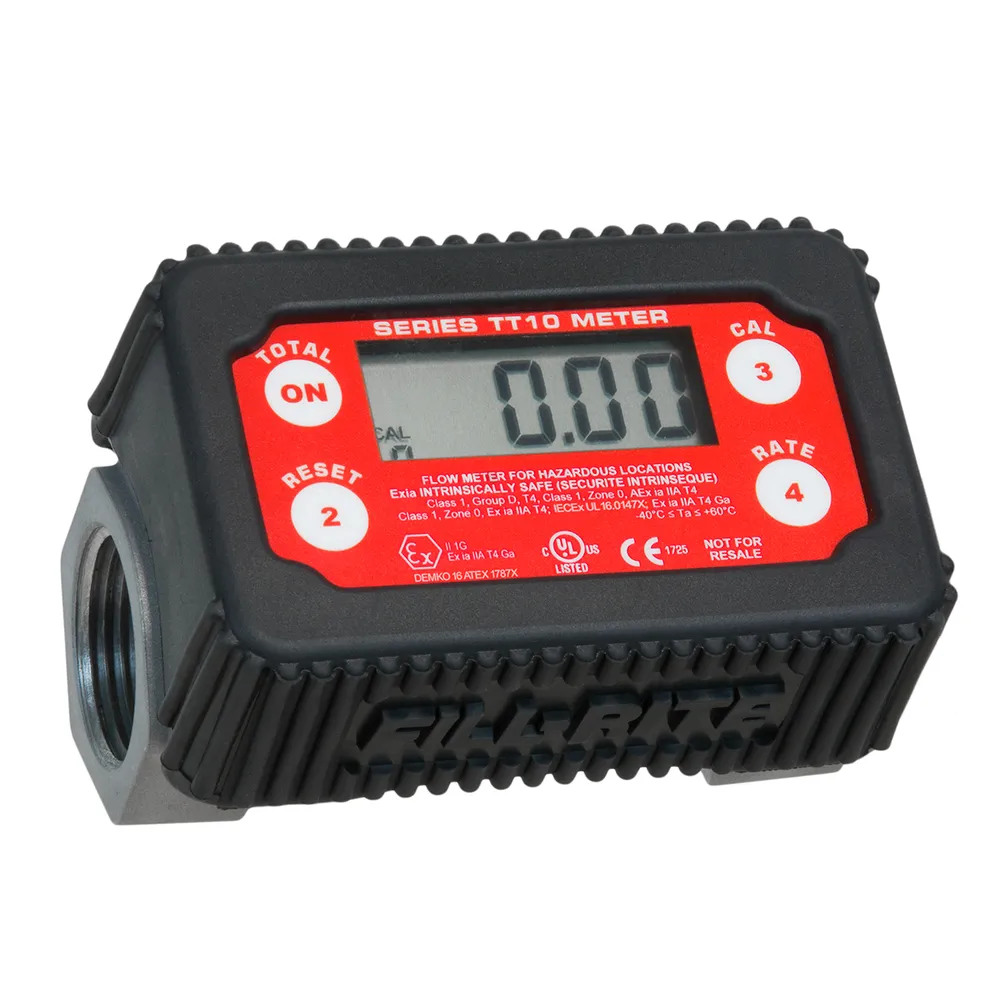

Fill-Rite TT10AN In-Line Turbine Meter

This digital in-line meter has a 1" inlet/outlet and is built to withstand 50 PSI. This meter also is made out of aluminum and has a flexible mounting configuration with 1% accuracy ratings. This turbine meter comes ready to use with 2 AA batteries and also 1" to 3/4" reducer bushings. This can be installed either inline or at the end of house mounting.

Specifications

• Fill-Rite® brand
• Model number: TT10AN
• Highly accurate to +/-1%
• Protective rubber boot absorbs impact to minimize meter and electronic damage in harsh environments
• Lightweight
• Durable material
• Corrosion resistance and protection from degradation in extreme heat and fridged temperatures (-40° to 176°
• Perfect for Agriculture, Construction, Fleet/Transportation, Logging
• Fluid handling: Diesel, Gasoline, Mineral Spirits, Kerosene
• Long battery life (powered by (2) AA batteries that are included)
• Inlet/outlet ports: 1" NPT or BSPP female
• Flow range: 2 to 35 U.S. GPM / 7.6 to 132.5 LPM
• Inlet size: 1"
• Outlet size: 1"
• Flow rate range (GPM): 2-35 GPM
• Max operating pressure (PSI): 50
• Working pressure: 50 PSI (3.4 bar) MAX UL 300 PSI (20.7 bar) burst
• Operating temperature: -40° F to 176° F (-40° to 60° C)
• Measurement units: ounce, pint, quart, liter, gallon
• Totalizer range: 0-90,000,000 units
• Batch range: 0.00-9999 units (blinks when batch exceeds 9999)
• Wetted materials: 304/316 stainless steel, aluminum acetal, gold
• Display: -40° F to 176° F (-40° C to 60° C)
• Power: 2 AA alkaline batteries (included)
• Memory: meter totals and calibration are preserved when replacing the batteries
• Meter dimensions: 4" (w) x 2.6" (d) x 2.9 (h)
• Includes: Meter, two 1" to 3/4" reducer bushings
