14 In. Disc Hiller with 22 In. Shank, King Style Hub

14" Disc Hiller with 22" Shank, King Style Hub

Item #36359
The average rating for this product is 5 out of 5 stars
1 review

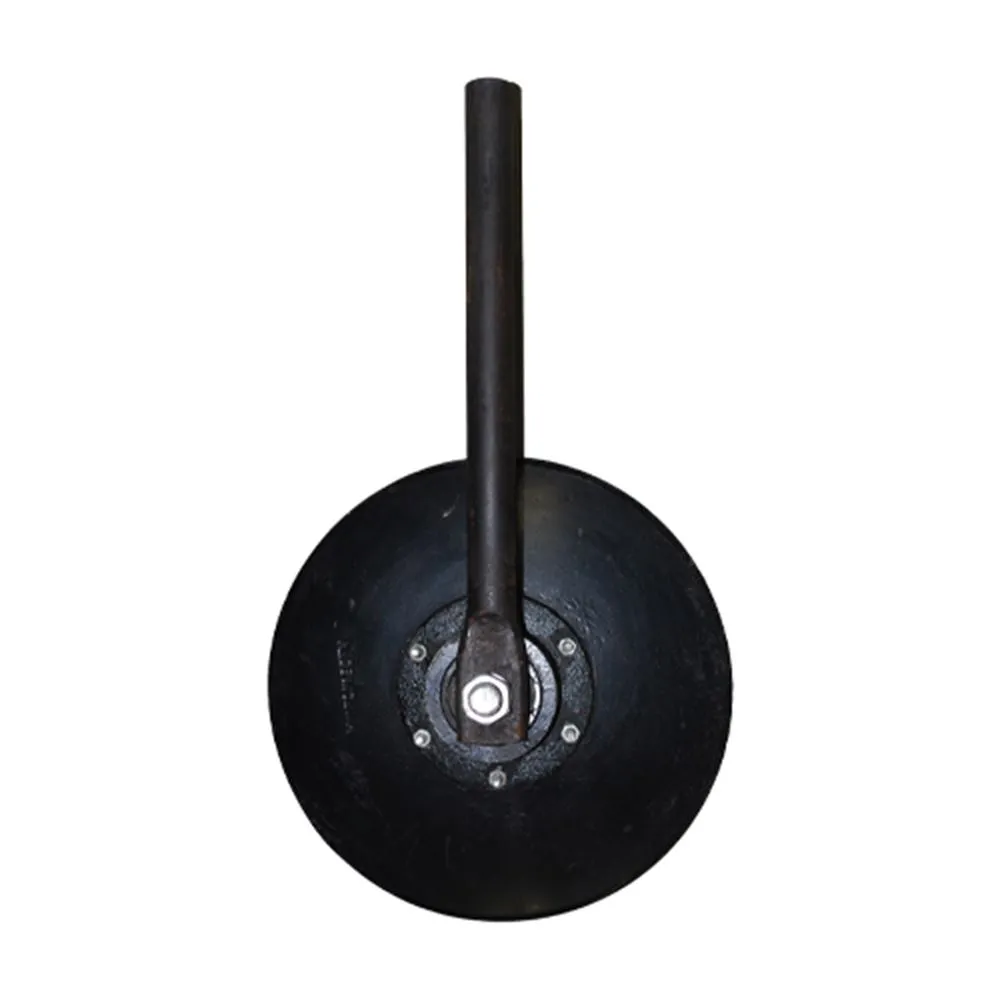

This disc hiller has a 14 inch solid disc and a 22 inch shank. The assembly has a king style hub with a six bolt pattern. The shank is 1-3/16 inch in diameter.
100% Satisfaction Guaranteed
Product Overview

Cover your seeds or create mounds for planting with this 14 inch disc hiller on a 22 inch long shank. The shank is 1-3/16 inch diameter. Use two disc hillers for optimal performance and adjust the width between the discs to create the mounded row width that you require.

Specifications

  • 14 In. Disc Hiller with 22 In. Shank
  • King style hub
  • 6 bolt pattern
  • Shank diameter: 1-3/16 in.
  • For a replacement bearing, use ASC #17861
  • For a replacement snap ring, use ASC #35761

Blanton Style Disc Hiller
Product
Number
Ref #
Description		Qty
Required
11678216" Shank (1-3/16" rd)1
30336222" Shank (1-3/16" rd)1
357403Hub - No Bearings1
178614206 GGH Bearing1
80970512" Blade 3 MM1
80971514" Blade 3 MM1
80973516" Blade 3 MM1
824036Snap Ring1
1309973/4" Lock Washer1
1310983/4" Hex Nut1
3395593/4" Flat Washer2
29842103/4" x 3-1/2" Thin Head Bolt1
13103111/4" Hex Nut6
13093121/4" Lock Washer6
n/a131/4" Ribbed Bolt6

Should this product not fit your requirements, tool bar, or tractor, we carry a variety of disc hillers to offer.

Shop More

Shipping & Returns

Shipping & Return Policy
Featured Review
This shopper rated the product 5 out of 5 stars
14" Hiller w/22" Shank

Huge box, .... I ordered four of these discs for use with my home-designed 2x2 toolbar I'll be using this spring (2013). I've read a lot of opinions about the types of bearing used and I just decided to go with these because of the price and see how well they performed. The discs are made in china, very good condition, and appear heavy duty which was pleasing to see. The discs are thick and I suspect these are an exceptional buy for my needs. The only gripe I have is that I had to go elsewhere to find square U-bolt clamps and plates for my 2x2 tool bars. I realize that ASC (and others) are selling their own tool bar versions but there's a large drive/demand for standardization so that the average home gardner can fabricate/customize their own 2x2 toolbars out of common steel stock. This isn't rocket science after all. — VP Farms from TN
