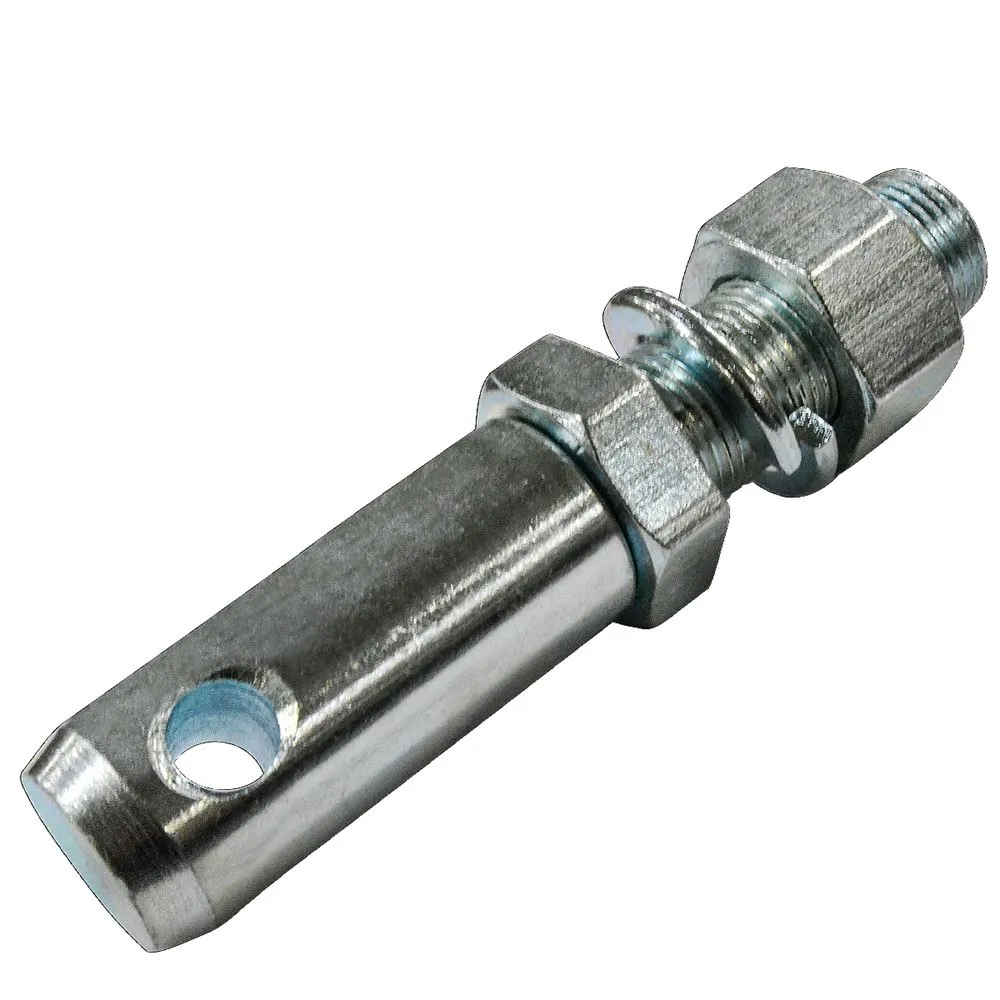

Lift Arm Pin, Category 2, Adjustable W/ Category 1 Threads

Item #106045
This lift arm pin is a category 2 and has category 1 threads. The lift arm pin is adjustable and made from mild steel with a trivalent white zinc finish for corrosion resistance.
Product Overview
Specifications
  • Adjustable lift arm pin
  • Category 2 with category 1 threads
  • Diameter: 1-1/8"
  • Pin hole: 15/32"
  • Overall length: 5-9/32"
  • Usable length: 4-5/16"
  • 7/8"-14 x 2-7/16" thread length
  • Material: mild steel
  • Finish: trivalent white zinc
  • Includes:
    • (1) 7/8"-14 UNF Reg. Nut
    • (1) 7/8"-14 UNF Jam Nut
    • (1) 7/8" Spring (Lock) Washer
