Pintle Hook, 20 Ton

Pintle Hook, 20 Ton

Item #101295
Write a Review

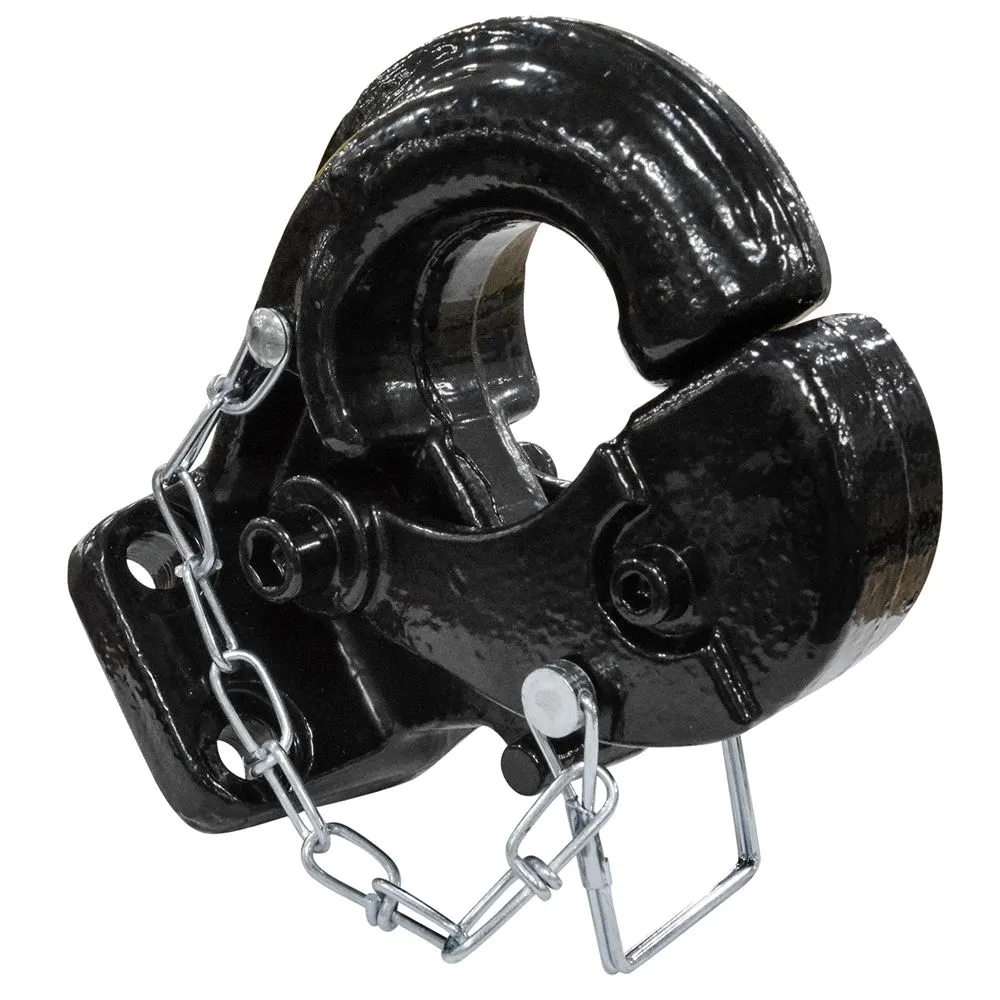

Transport a high capacity of weight with this pintle hook, designed to support a load of 20 tons. This device can attach to most standard mounts, and features a locking arm and chain for additional security.
100% Satisfaction Guaranteed
Product Overview

Constructed from alloy steel then continued through a drop forging process to shape the steel accordingly, this 20 ton pintle hook has excellent strength. In addition to pulling a horizontal capacity of 20 tons, it can perform a vertical load lift of up to 8,000 lbs. The adjustable receiver can have an inner diameter from 2 to 3 inches, and supports a tow ring diameter of 1-1/4 to 1-5/8 inches. It features a locking arm and bolted chain for more protection when in use, this pintle hook hitch is also powder coated for further durability.

Specifications

  • Pintle Hook
  • Load capacity: 20 tons
  • Vertical load capacity: 8,000 lbs.
  • Construction: Alloy steel, drop forged
  • Inner diameter: 2 to 3 in.
  • Diameter section: 1-1/4 in. to 1-5/8 in.
  • Locking arm
  • Chain
  • For use with tow ring
  • Powder coated finish
  • Check out our other Pintle Hooks and Mounts
