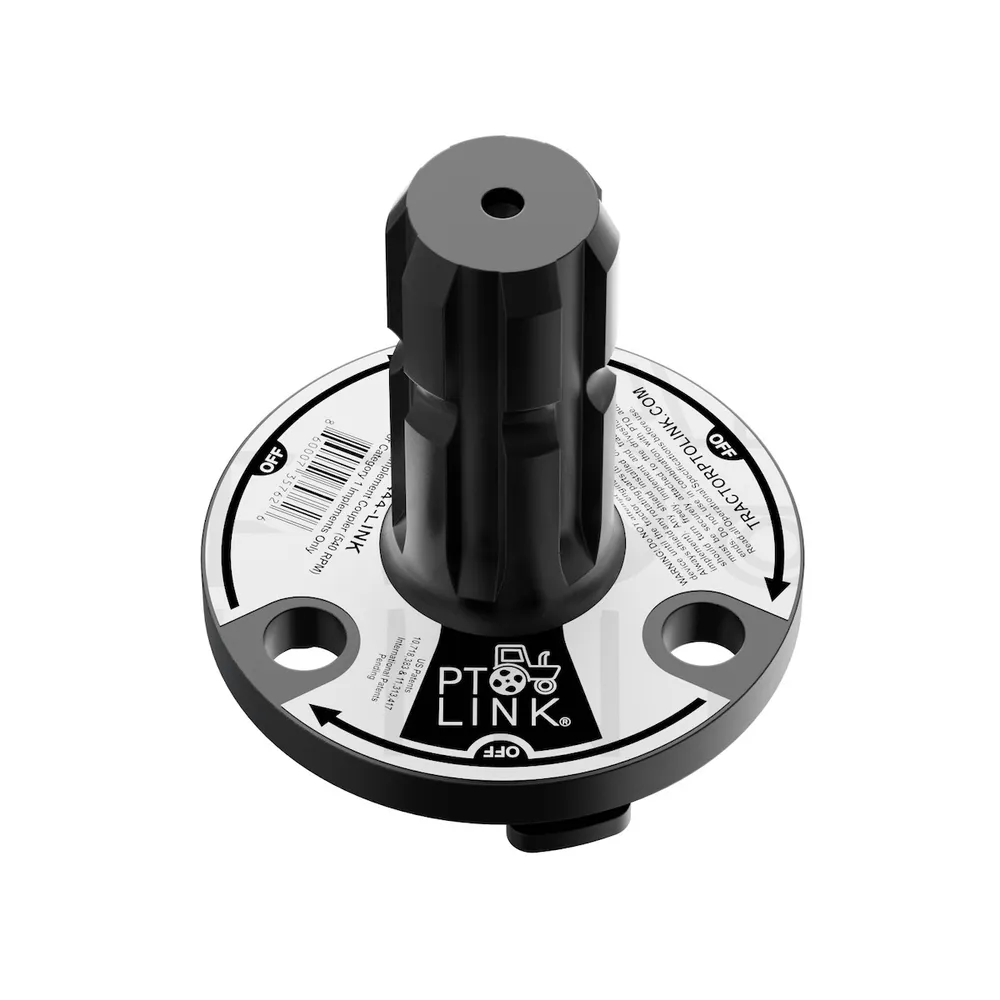

PTO Link® Compact System Implement Male Coupler

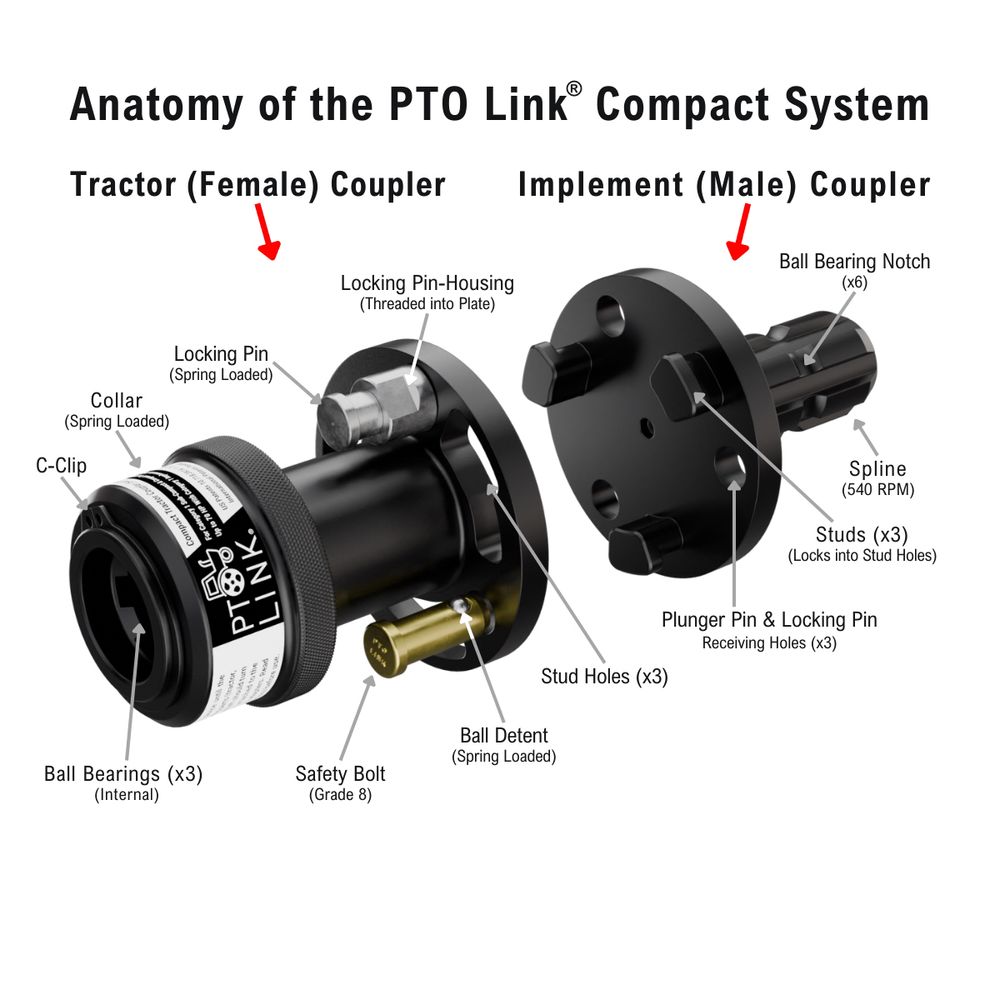

The PTO Link® system is designed to quickly and safely connect/disconnect tractors and implements at the PTO… in seconds! The PTO Link® is the original, universal quick-connect system that consists of two interconnecting plates (female and male). For best results, every tractor should have the Tractor Plate (Female) installed and every implement with a PTO driveline should have an Implement Plate (Male) installed.

• Mates with 127012 to make the unit complete
• Works with rear 6 spline 540 RPM PTO for tractors up to 70HP
•  Simple one-step installation and no special tools or hardware needed
• AISI 4140 hardened alloy steel with QPQ finish
• Designed for Cat. 1 tractors
• Category 1 implements only
• PTO Link® is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers.
• Quickly and safely connect/disconnect implements at the tractors PTO in just seconds
• Its patented  Open-Plate™ design replaces the traditional spline-drive-line connection with a visible interface that's both easy to see and reach.
• Safety Plunger Pin included with every female plate, extras can be purchased by ordering ASC #127015 - Compact Plunger Pin
• When fully installed this complete pair (male and female) add approximately 5 inches to the overall length of the driveline, thus possibly having to shorten your the pto shaft of your implement.
• Dimensions 3.75 inches width X 3.75 inches in height
• NOTICE for Kubota BX tractors ONLY! The specially designed Lift Arm Stabilizer Replacement Plate is required when using in conjunction with the PTO Link Compact system on all BX series tractors. This REPLACEMENT plate (ASC# 127017) retains all of the functionality of the original Kubota part, but shortens its overall length to avoid making any contact with the PTO Link system when the lift arm hydraulics are in full-lift position.
• The Compact System is specifically designed to work for smaller tractor PTO splines (less than 3 inches), but can also be used on standard PTO spline lengths (up to 70 HP). It is the required system for certain tractor models: Kubota BX, B & LX Series, Kio CS & CS & DK Series Cat. 1,  John Deere 2520 (2005-2011), Yanmar SA Series, New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026, LS MT122, LS MT125 MT225, Mahindra 1526, 1626 & 2126 Massey Ferguson 25, 1010, 1020, 1030, & 1035, which are not compatible with our SD or HD systems. Note: Most other tractors (20 HP to 100 HP) are compatible with our PTO Link™ SD model, so IF your tractor model is NOT listed above and your tractor spline length is greater than 3″, the SD or HD models are your alternate options.
