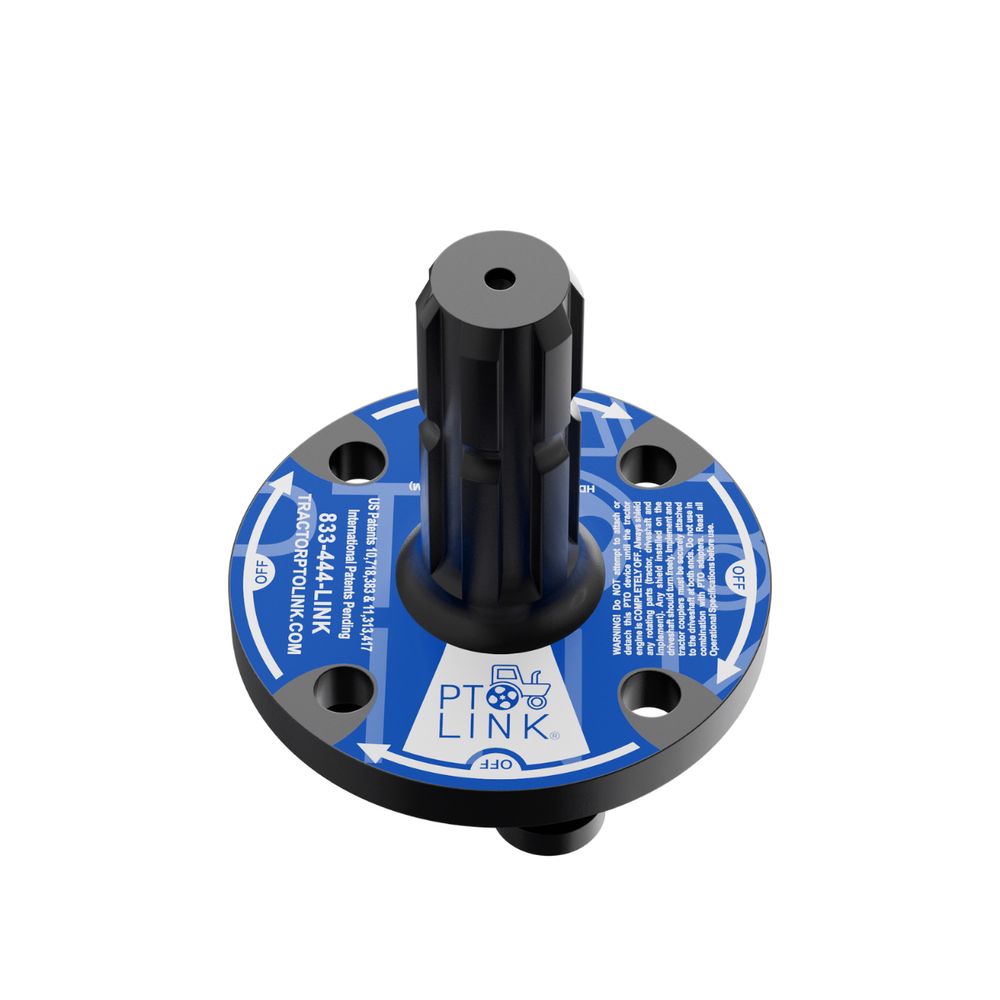

PTO Link® HD System Implement (Male) Coupler

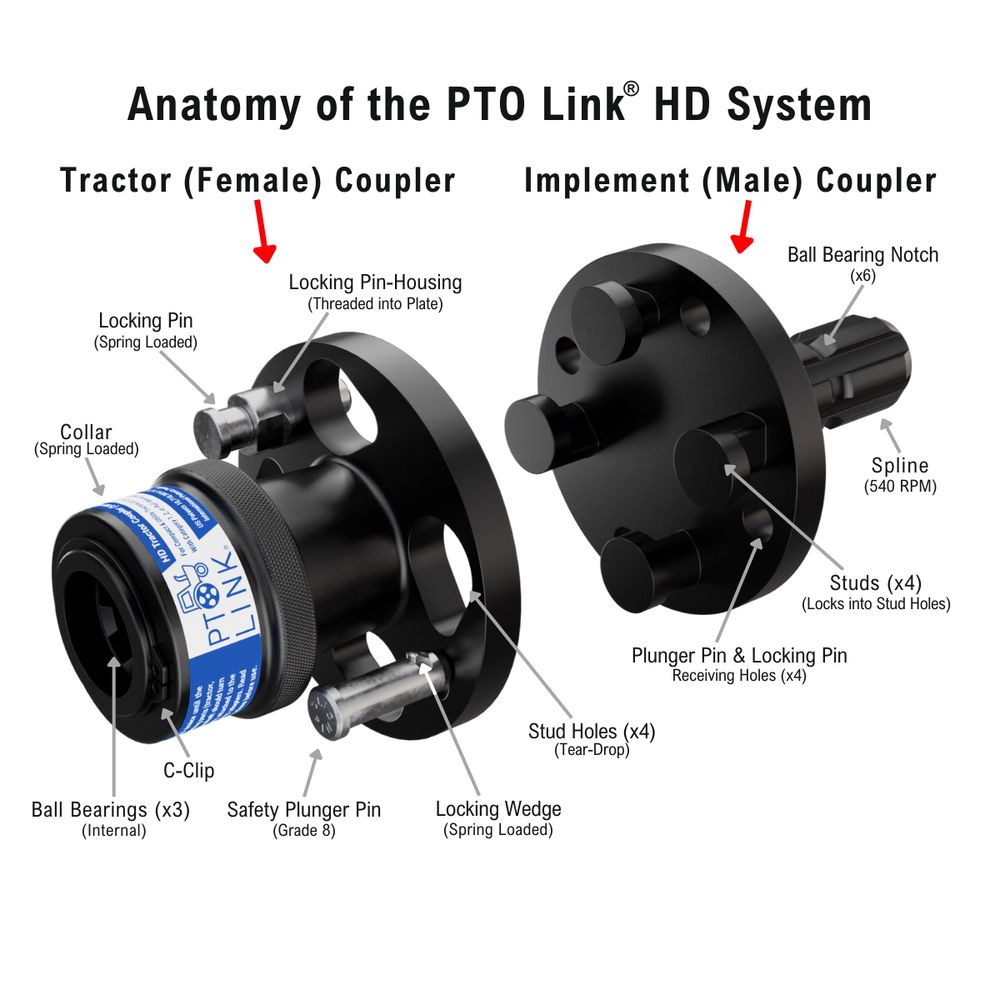

The PTO Link® is the original, universal quick-connect system that consists of two interconnecting plates (female and male). For best results, every tractor should have the Tractor Plate (Female) installed and every implement with a PTO driveline should have an Implement Plate (Male) installed. It is also designed to quickly and safely connect/disconnect tractors and implements at the PTO… in seconds!

Features:

• Mates with #127018 - Female Tractor End to make the unit complete.

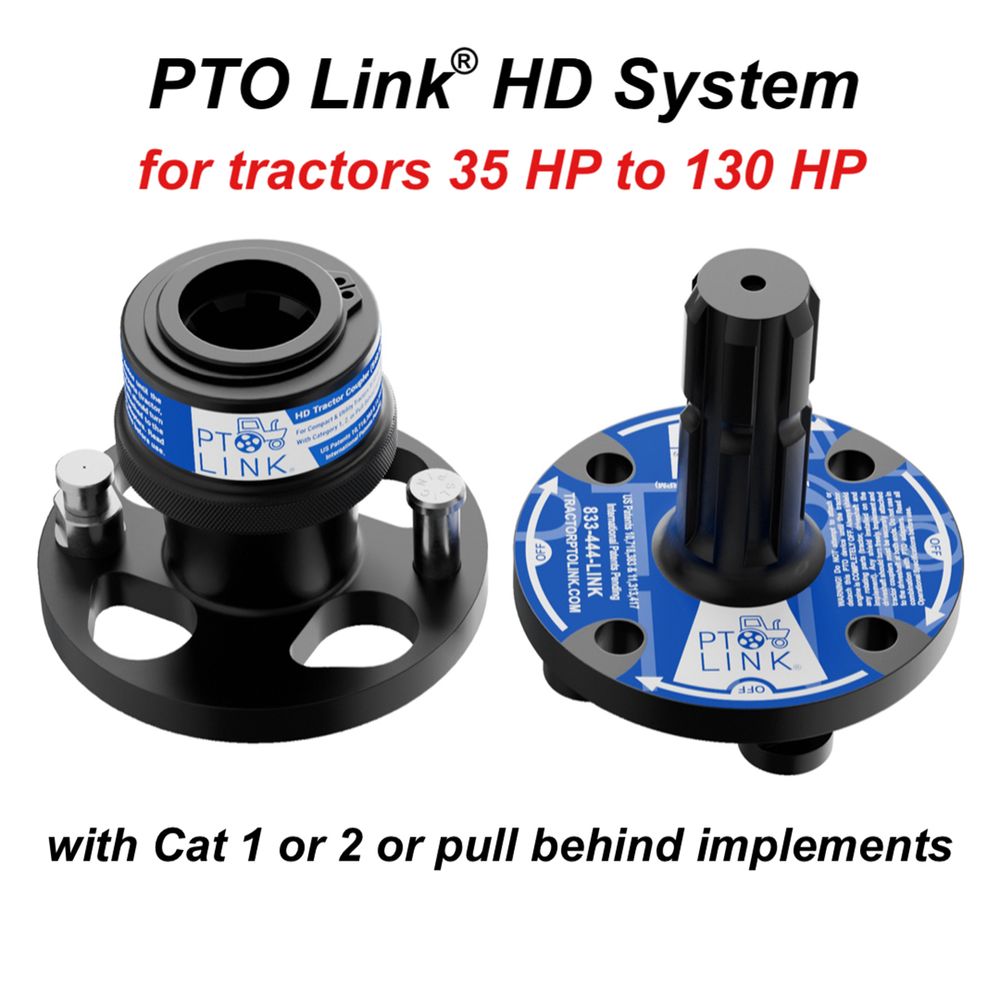

• Works with rear 6-spline 540 RPM PTO for tractors 35 HP up to 130 HP, with a Cat. 1 or 2 pull behind implements
• Exceptional Model: The kioti DK Series (rated above 35 HP) must use the PTO Link® Compact System as the only compatible option (this is the only tractor model above 35 HP, that is not compatible with the HD System)
• Exception List (rated below 35 HP tractor models): The "smaller" PTO Link® Compact System is the REQUIRED system for tractors with a PTO clearance of 3  inches (or shorter).
• Known tractor models that fit this description include: Kubota BX, B & LX Series, Kioti CS & DK Series (Cat. 1), Yanmar SA Series, JohnDeer 2520 (2005-2011), New Holland Workmaster 25S, Cub Cadet 6284D, LS MT122, MT125, MT225, Mahindra 1526, 1626 & 2126, Massey Ferguson 25, 1010, 1020, 1030,1035, tractors listed models are not compatible with this "large" HD system
• Designed for all tractors using mowers/shredders 8 feet or wider and/or flex-wing/batwing rotary cutters
• Easily connect your mower, shredder, tiller or any PTO driven implement in seconds!
• Simple one-step installation for each plate and easy removal. No special tools or extra installation hardware required (i.e., no set screws, snap rings or retaining clips)
• Built to last (AISI 4140 hardened alloy steel with QPQSM finish)
• Safety Plunger Pin included with every tractor (female) plate, and extras are available by ordering ASC#127020.
• When fully installed, the PTO Link® HD system adds approximately 5 inches to the overall length of the driveline which could lead to having to cut and shorten the driveline of the implement.
• The PTO Link® is NOT an adapter. To be in compliance with ASABE standards, do not use the PTO Link® system in combination with PTO adapters.
