PTO Water Pump, 4 In., PTO Shaft Included

Item #87474
An ideal pump for irrigating fields, gardens, and lawns. This pump is also a good choice for the purpose of discarding excessive amounts of water from places undesired for it to be. It is designed to operate on a range of tractors with engine horsepowers from 15hp to 125hp. This PTO Water Pump has a flow rate of 352 gallons per minute. The sizes of both the inlet (suction) and the outlet (discharge) are 4 inches and the pump comes with a PTO Shaft.
Due to product size and/or weight, this product ships via Motor Freight Truck only. Liftgate service may not be available. Please be prepared to remove large items from the truck.
Availability:
Product Overview

When installed, this pump will be attached to the rear of the tractor using the three point hitch with the PTO shaft attaching to the 540 rpm, 6 spline PTO of the tractor. The gearbox shaft of the pump is also 540 rpm and 6 spline. Safety guards must be in place around the PTO shaft as it is dangerous when exposed. The gearbox must have the appropriate amount of SAE 90 gear oil from proper maintenance. It is designed to operate on a range of tractors with engine horsepowers from 15hp to 125hp and the rotational force of the tractor’s PTO shaft powers the pump by attaching to the shaft on the gearbox of the pump. You can adjust your tractor’s engine speed as needed to reach your appropriate rate. This pump has a flow rate of 352 GPM and must be operated in open and well ventilated areas. Pump must be drained prior to freezing temperatures.

    Specifications:
  • 352 GPM
  • 4 inch inlet (suction) and outlet (discharge)
  • Comes with attaching hose barbs for both suction line and discharge lines, suction line strainer (filter net), and PTO shaft to attach pump to the tractor that is 540, 6 Spline on each end.
  • Tractor HP required is a range of 15HP to 125HP
  • Pump Gearbox accepts 540 RPM and geared to supply the required 3,600 RPM to the pump and uses SAE 90 Gear Oil
  • Maximum Suction Lift: 23 FT
  • Total Head: 82FT
  • For outlet/discharge hose, use ASC# 18411 - 4" Blue PVC Discharge Hose
  • For inlet/suction hose, use ASC#18431 - 4" Green PVC Suction Hose

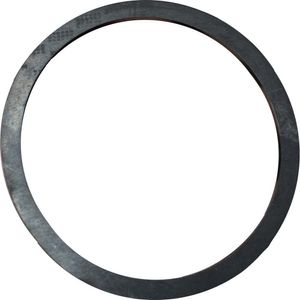

  • The ASC# 89164 sealed washer that fits in the hose connections, can get pinched if not careful, or can deteriorate over time, it is recommended to keep a couple of extras on hand so your pumping experience will not be halted.
  • For replacement PTO cross/Universal Joint, use ASC# 31370 - PTO Cross Kit #4
  • For a listing of normally stocked repair parts, click here
  • Gearbox is shipped WITHOUT oil
  • Requires .79 to 1.06 quarts of 90 Weight Gear Oil
  • For some helpful hints on the set up of your pump, click here
  • For tips on troubleshootingclick here
