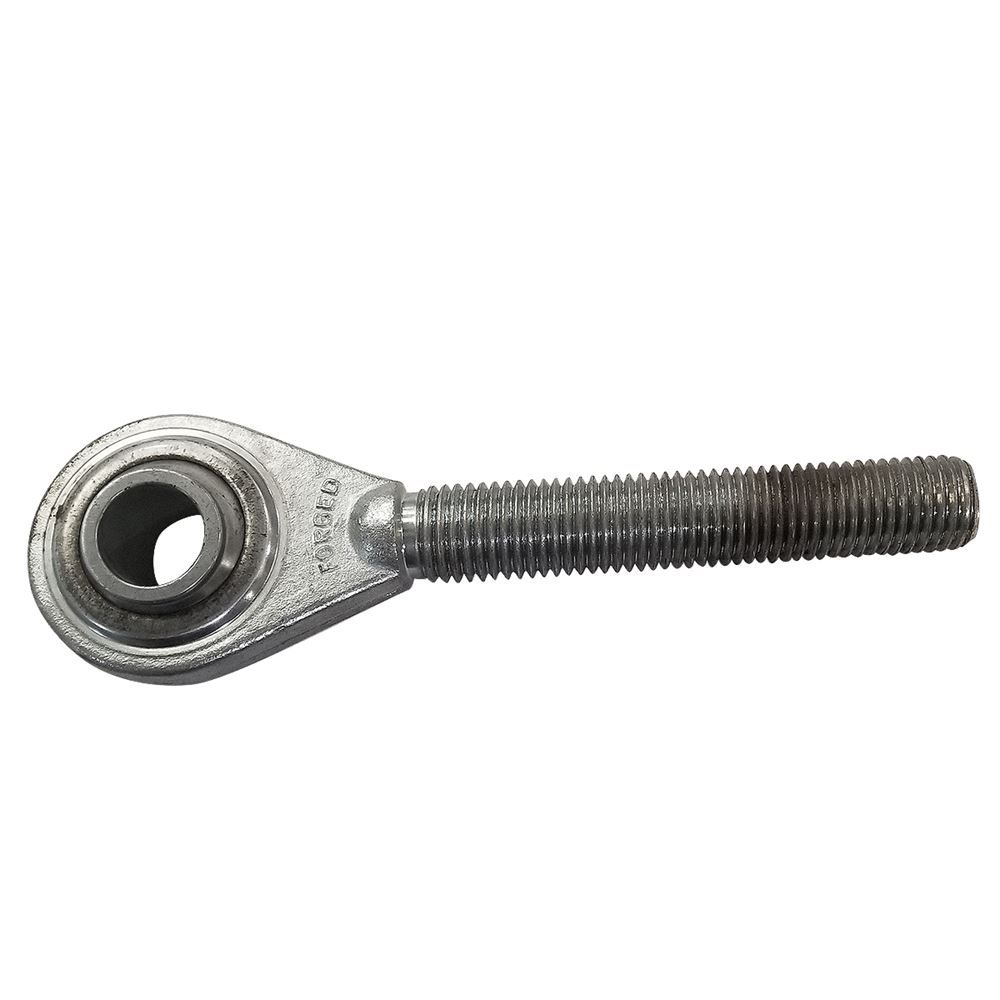

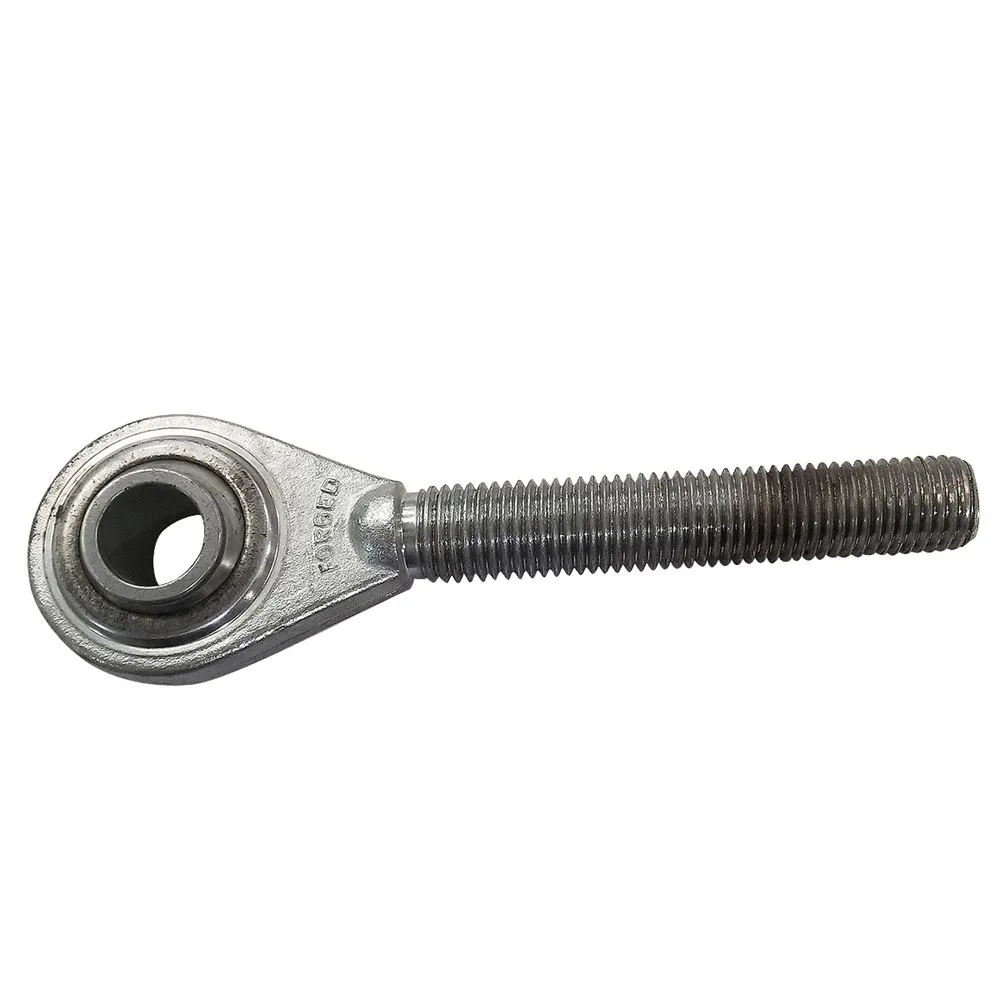

Top Link End Cat 3 Thread LH Swivel End
Item #106109
The top link sets the tractor properly, it keeps your tractor level. Top links allow you to control the up and down motion for the leveling of your implement. This can adjust the tilt of the implement, by pushing or pulling the bolt to adjust the tilt of the implement.
Product Overview
Rotating the bolt can either tighten (raise) or loosen (lower) allowing as much as about 30% upward. Adjust the top link on level ground so that the back of the rotary cutter is 1-2" higher than the front. This will allow the cut grass to exit and you won't have the back of the mower or implement scraping on the ground and a lot of weight on the wheel. When mowing on uneven surfaces something has to give as you cross over highs and low areas so it does not put a large amount of stress on your mower.
Specifications- Left hand swivel end
- Category 3
- Diameter of threads: 1-3/8"
- Length - eye to end of thread: 10-1/4"
- Diameter of pin hole: 1-1/4"
- Material: mild steel
- Finish: trivalent white zinc
- Right hand side use ASC # 106095 - Top Link End Cat 3 Thread RH Swivel End
