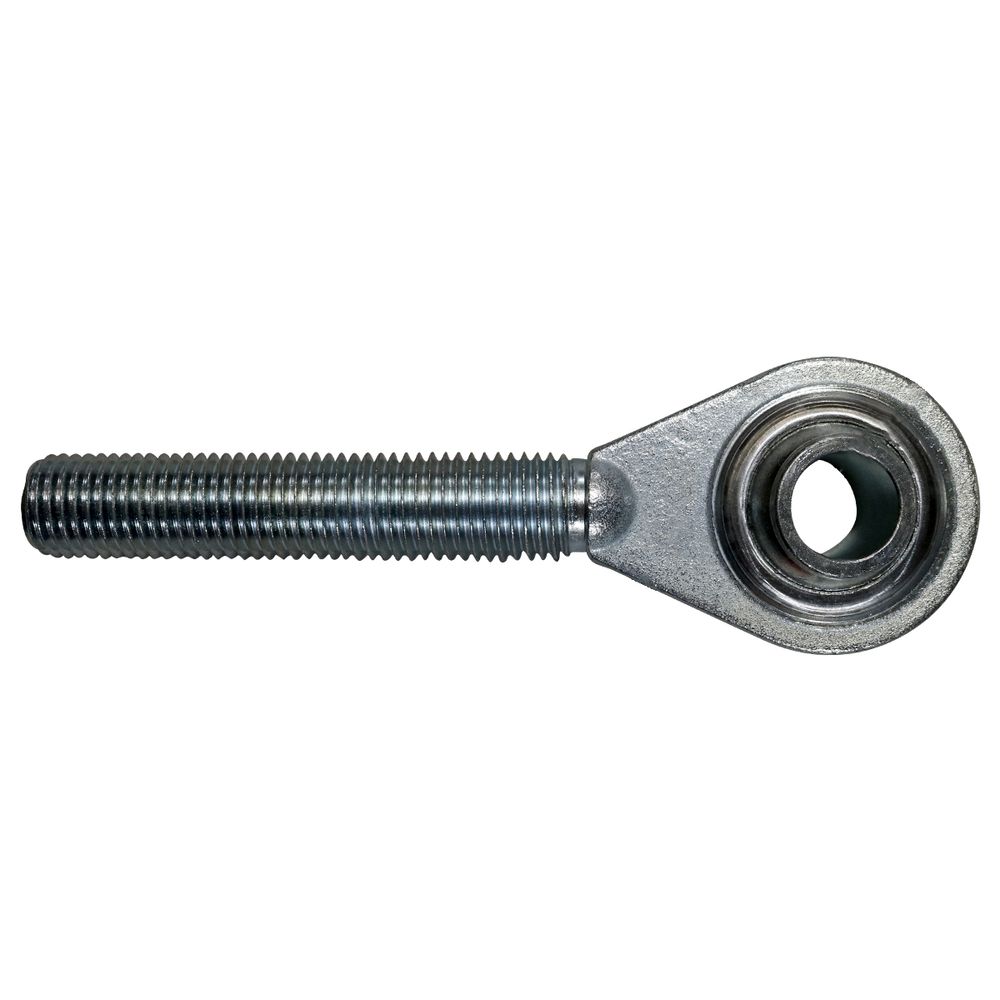

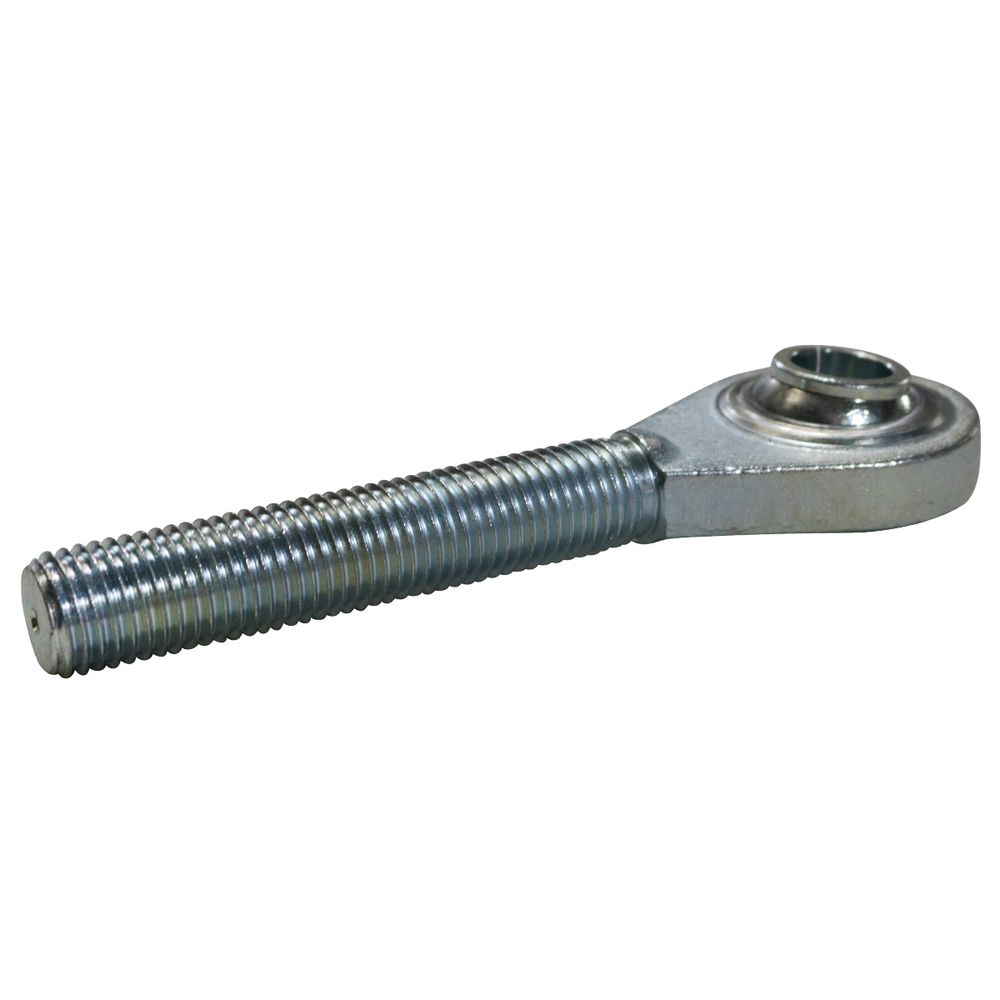

Top Link End Cat 3 Thread RH Swivel End

Rotating the bolt can either tighten (raise) or loosen (lower) allowing as much as about 30% upward. Adjust the top link on level ground so that the back of the rotary cutter is 1-2" higher than the front. This will allow the cut grass to exit and you won't have the back of the mower or implement scraping on the ground and a lot of weight on the wheel. When mowing on uneven surfaces something has to give as you cross over highs and low areas so it does not put a large amount of stress on your mower.

• Right-hand swivel end
• Category 3
• The diameter of threads: 1-3/8"
• Length - eye to the end of the thread: 10-1/4"
• The diameter of pinhole: 1-17/64"
• Material: mild steel
• Finish: trivalent white zinc
• Left-hand side use ASC # 106109 - Top Link End Cat 3 Thread LH Swivel End
