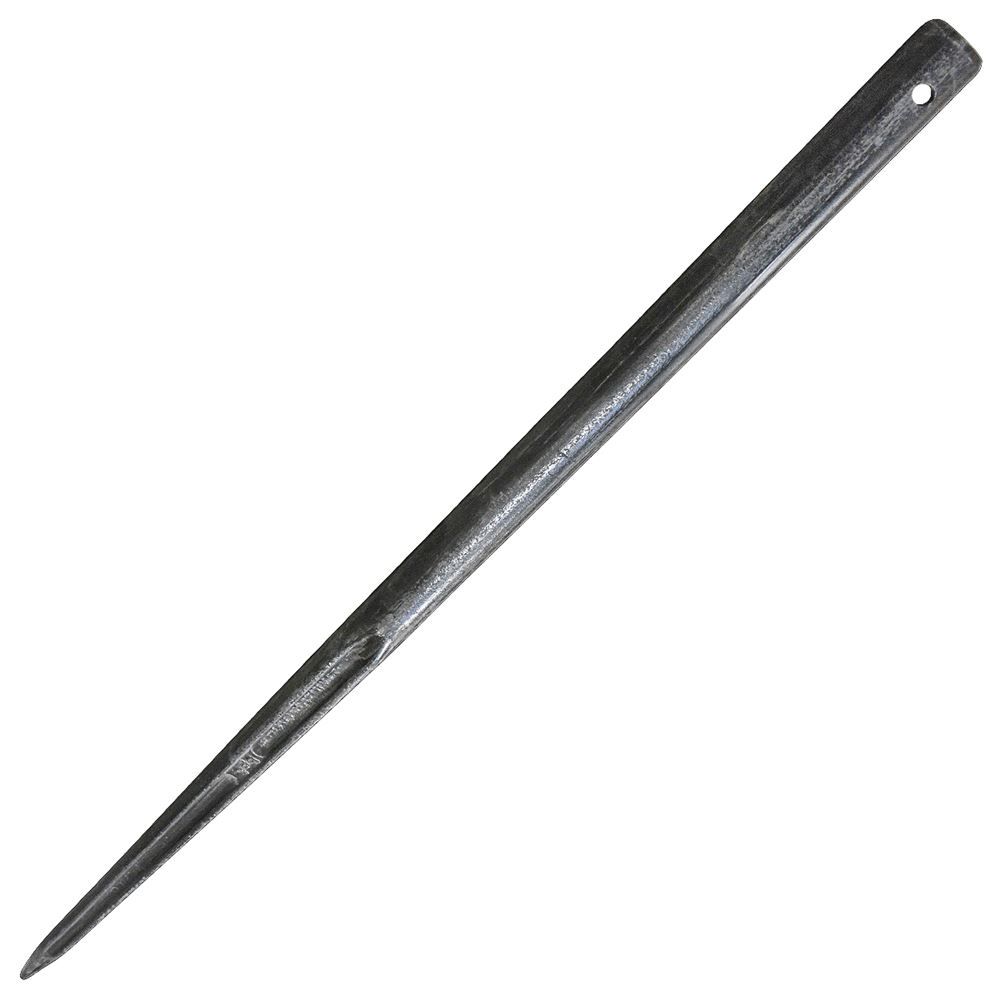

Bale Spear 47-1/4" Bolt On
Item #49667
Your hay hauling equipment becomes useless when it has broken spears. Replace these to keep your machine running with this 47-1/4 inch bolt-on bale spear that is built to be screwed or welded onto your bale mover. This model is heat treated to resist wear and tear and can hold up to 3,234 lb. bundles. We also offer its corresponding bushing.
Product Overview
When your hay spears wear down or break under the weight of a bale, change them out quickly and easily with a replacement bale spear. This 47-1/4 inch long bolt-on spear with a 12 mm diameter hole is heat treated for long life and durability. It has a 3,234 lb. maximum weight limit and is sold individually. Specifications
- Bolt on bale spear
- bpt®
- Overall length: 47-1/4 in.
- 42 in. usable length
- Maximum Load: 3234 lbs.
- 42 mm diameter or 1-5/8" diameter
- Bolt diameter: attaching bolt hole diameter: 12.85 mm or 1/2"; the attaching bolt would be 1/2" x 3-1/2" (13391) with a 1/2" locknut (13129) Using a bolt of this size will allow it to extend past the bushing/sleeve
- Bushing, ASC #49668 sold separately
If this spike does not fit your hay moving equipment, we carry a variety of other bale spear shapes, sizes, and capacities. Take a look at all of the bale spears we offer.
