Danish S-Tine Shank, Standard Duty, 14-1/2 In.

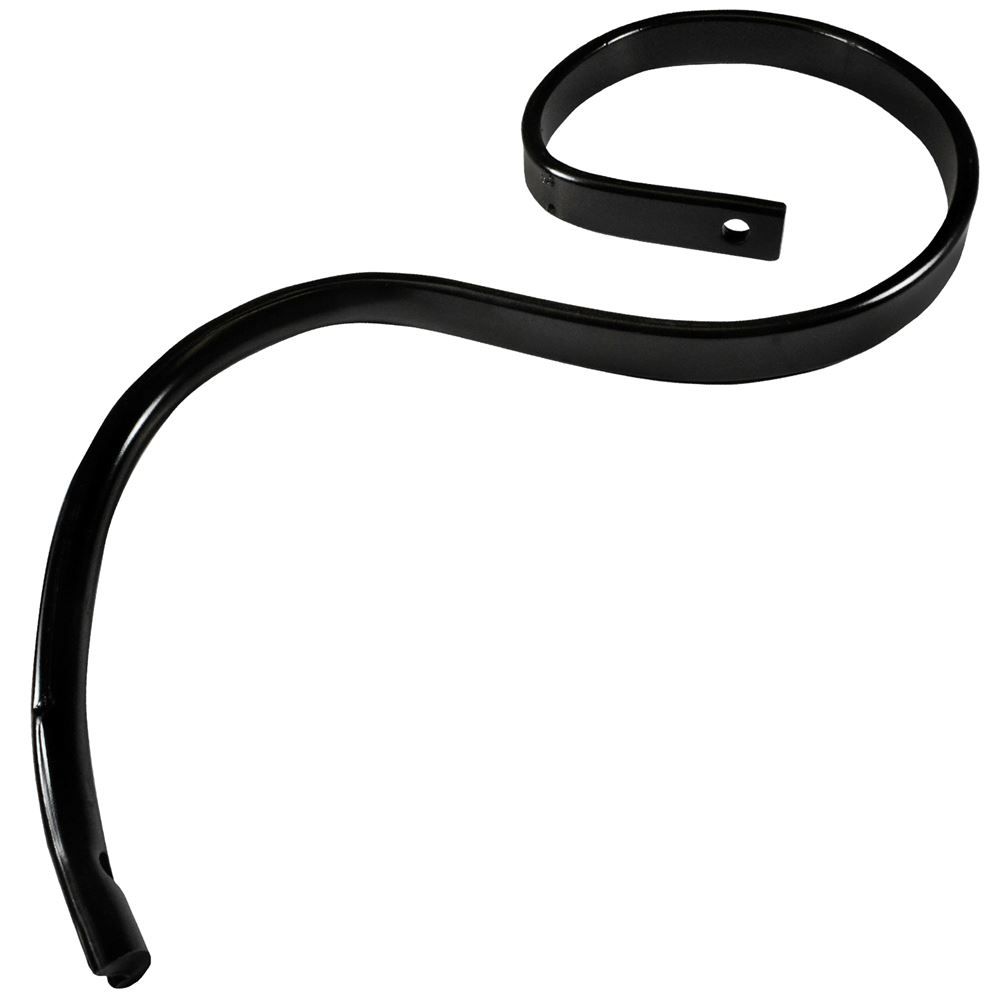

This S-tine shank is designed for standard duty cultivating. It has an overall length measuring 21.25 inches and a ground clearance measuring 14-1/2 inches. The ground clearance is the distance between the S-tine shank mounting bolt hole to the danish style sweep mounting bolt hole.
Availability:
#101599
Product Overview

S-tines are designed for use on Danish style cultivators. This S-tine connects to your tool bar with clamps and a danish sweep is attached to the end of the tine to break up soil. This cultivator S-tine has a 14-1/2 inch ground clearance. It measures 1.26 inches wide x 0.39 inch thick x 21.25 inches tall overall. This heavy duty cultivator tine is constructed from heat treated steel for durability and flexibility.

Specifications

  • Danish Style S-tine
  • Fits KMC and others
  • Made to fit ASC # 102237 S-Tine Clamp
  • Ground clearance height: 14-1/2 in.
  • Width: 1.26 in.
  • Thickness: 0.39 in.
  • Overall height: 21.25 in.
  • Thickness: 10 MM
  • Width: 32 MM
  • Construction: Heat treated steel
  • For use with Danish style cultivators and danish sweeps
  • Standard duty
101599 Diagram
